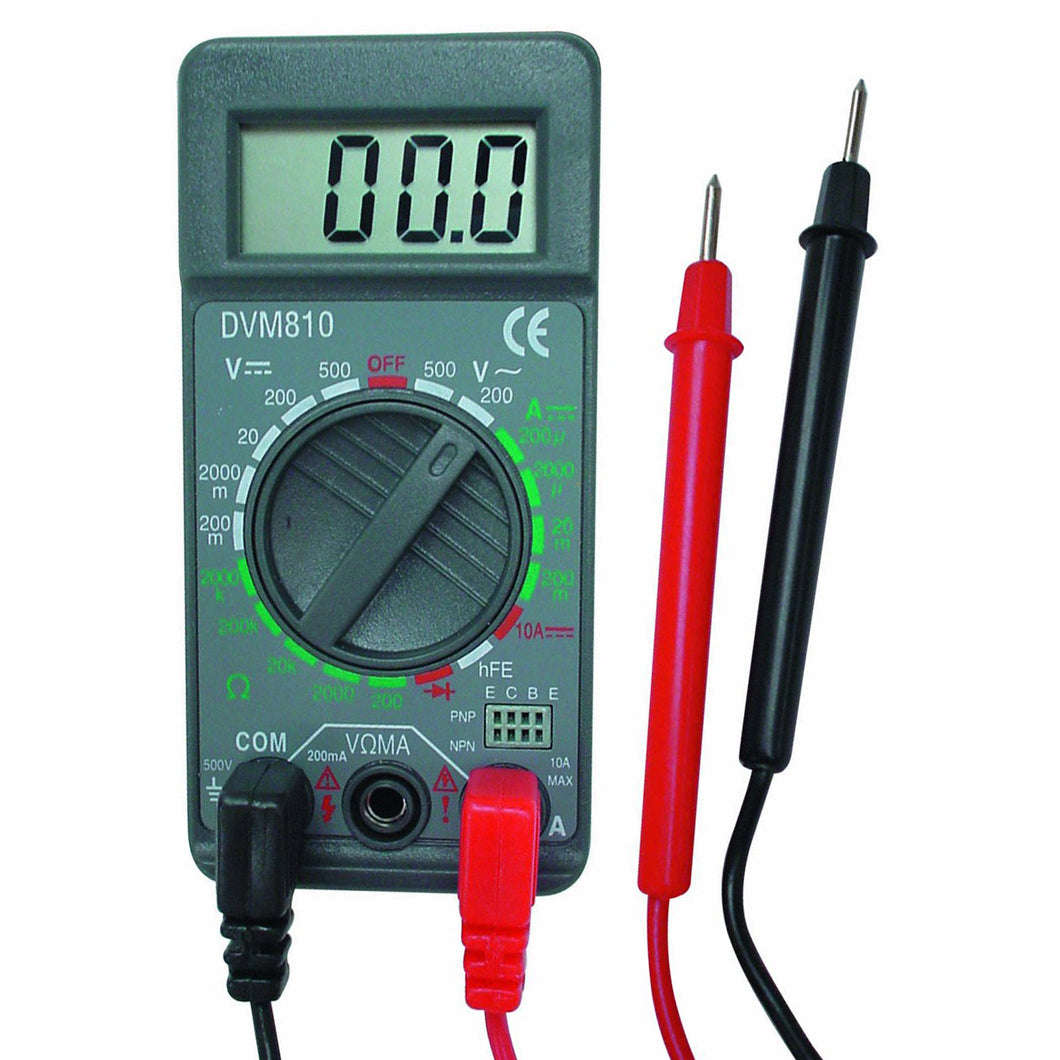

Velleman 3-1/2 Digit Mini Digital Multimeter - 19 Ranges (Model DVM810)

• automatic polarity indication
• voltage measurements: AC 500V and DC 500V max.
• current measurements: DC 10A max.
• resistance measurements: 2Mohm
• diode and transistor (hFE) test

Mini 3-1/2 Digit Digital Multimeter - 19 Ranges

Features:

• Automatic polarity indication
• Voltage measurements: AC 500V and DC 500V max.
• Current measurements: DC 10A max.
• Resistance measurements: 2MΩ
• Diode and transistor (hFE) test
• CAT II rated meter
• Packaging: blister
• Important safety information

Specifications:

DC voltage: 200m/2000m/20/200/500V

• Basic accuracy: ±0.5% (±0.25% for 200mV range)
• Maximum input: 500V

AC voltage: 200/500V

• Basic accuracy: ±1.2%
• Frequency range: 45-450Hz
• Maximum input: 500V

DC current: 200µ/2000µ/20m/200m/10A

• Basic accuracy: ±1.0% (±2.0% for 10A range)
• Overload protection: 200mA 250V fuse (10A-range is not fuse-protected)

Resistance: 200/2000/20k/200k/2000k

• Basic accuracy: ±0.8% (±1.0% for 2000k range)
• Overload protection: 220Vrms max. for 15 seconds

Extra Features:

• Over-range: Yes
• Transistor (hFE) NPN/PNP test: Yes
• Diode test: Yes
• Low-battery indication: Yes
• Maximum display: 3 1/2 digits
• LCD display height: 0.5"
• Ranging mode: Manual
• Size: 3.6"L x 1.8"W
• Weight (with battery): 3.2 oz. (0.2 lbs.)
• Power supply: 12V battery (included)
• Includes: User manual, test leads, 1 GP23GA 12V battery

Product Dimensions (L x W x H): 127 x x 15

Product Weight: 8.8 LB
