Triple Output DC Power Supply (One Fixed 5V @ 3A, Two Continuously Variable 1.5V to 15V, 1A Max), Do-it-Yourself Soldering Kit Version

• DIY Power Supply kit (includes assembly manual)
• One output is fixed and 2 are continuously variable
• Fixed Output: 5V DC at 3 amps
• Variable Output: +/- 1.5V DC to +/- 15V DC at 1 amp maximum
• All 3 supplies are fully current limited and shortcircuit protected

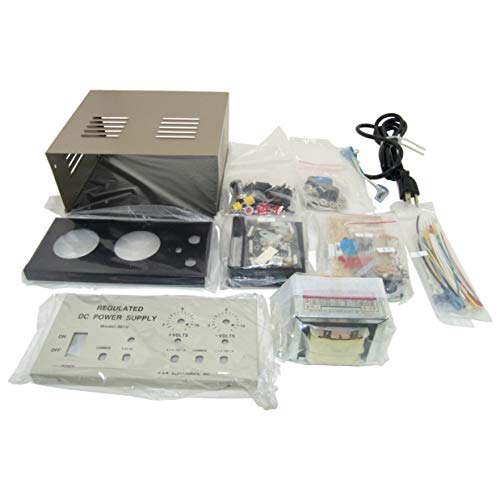

NOTE: This is a do-it-yourself kit. Assembly with a soldering iron is required. Solder and soldering iron are not included.

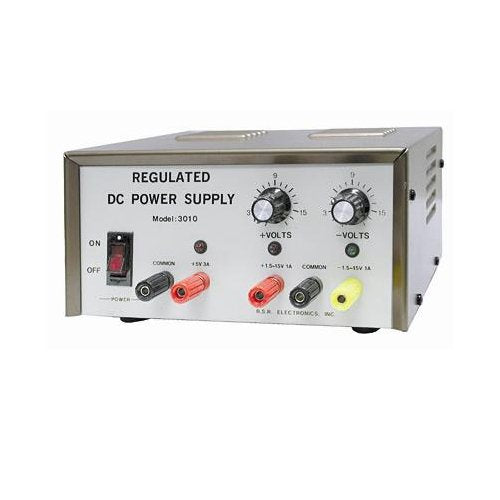

The Do-it-Yourself 3010 DC Power Supply kit features 3 regulated DC supply outputs. One output is fixed and 2 are continuously variable. All 3 supplies are fully current limited and shortcircuit protected. An English language assembly manual is included.

SPECIFICATIONS:
Fixed Output:
5V DC at 3 amps maximum
Line regulation of 0.2%
Load regulation of 1% with a maximum ripple of 10mV p-p.
Variable Output:
±1.5V DC to ±15V DC at 1 amp maximum
Line regulation of 0.5%
Load regulation of 1% with maximum ripple of 10mV p-p.

Note: Preassembled version also available, found by searching for the following part number: 01PS3010A

Product Weight: 0.5 LB
