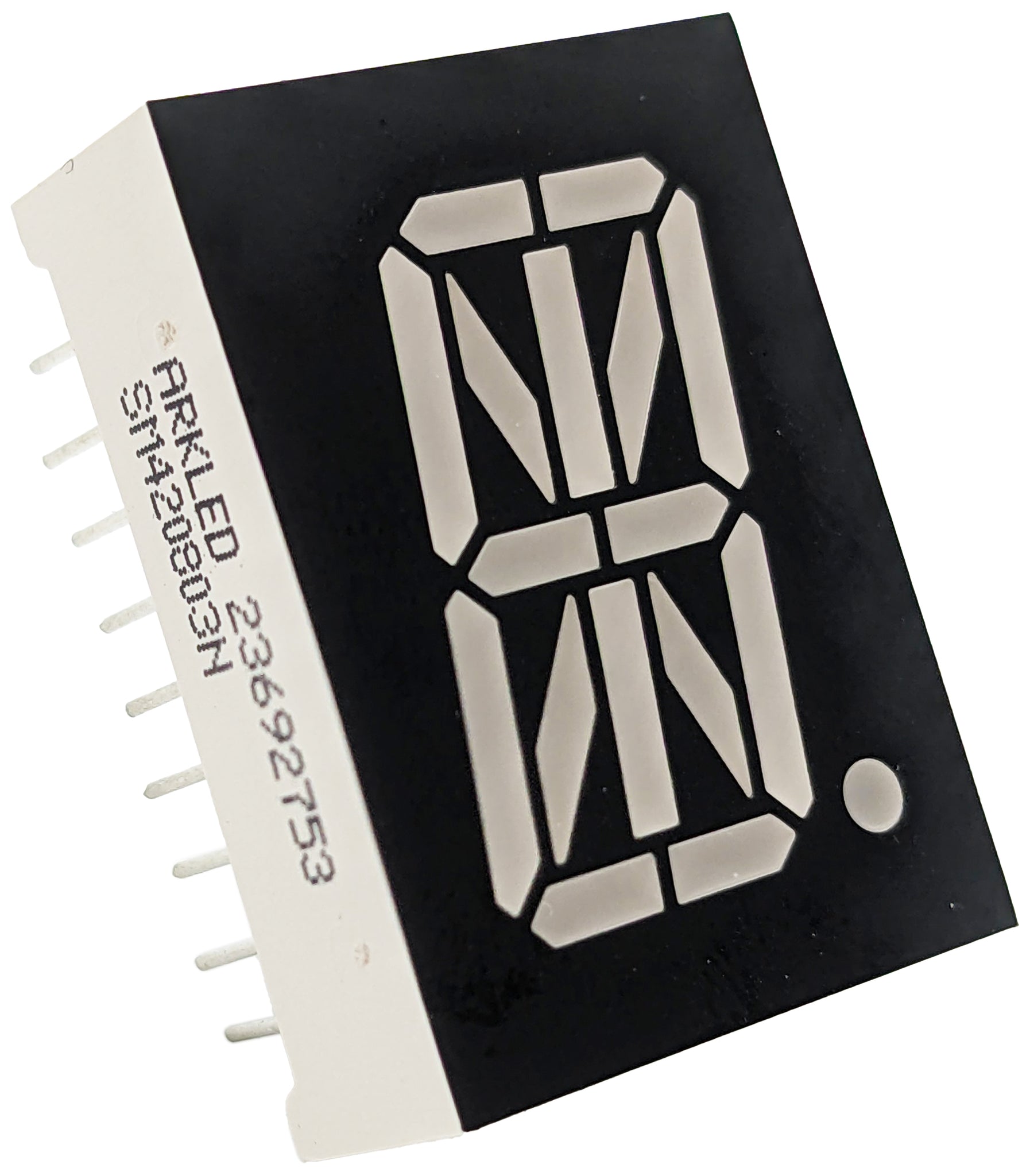

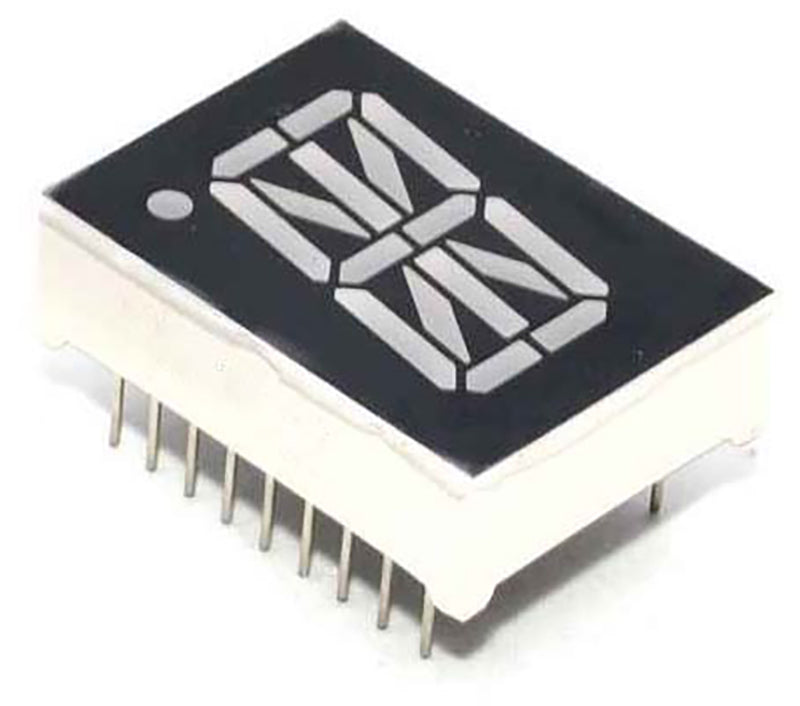

- 16 Segment Single Digit Alphanumeric Display, Red
- 0.8 inch character height
- Pin Configuration: Common Cathode

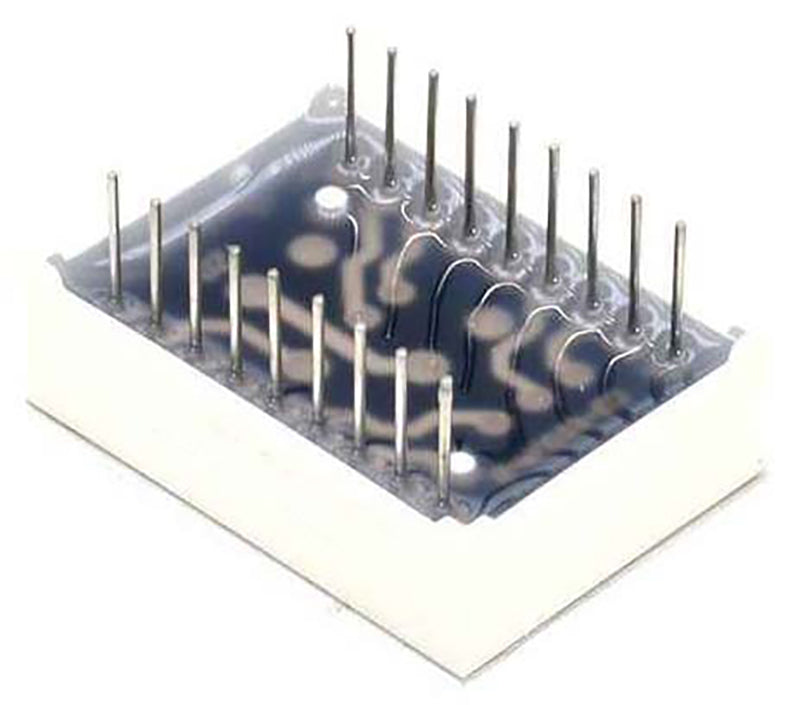

- 18 Pins with 0.1" spacing for easy mounting on breadboards or in sockets

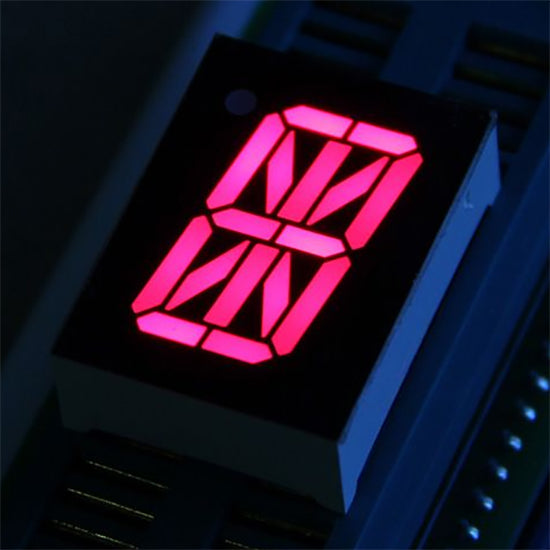

- Color: black background with white segment that illuminates bright red

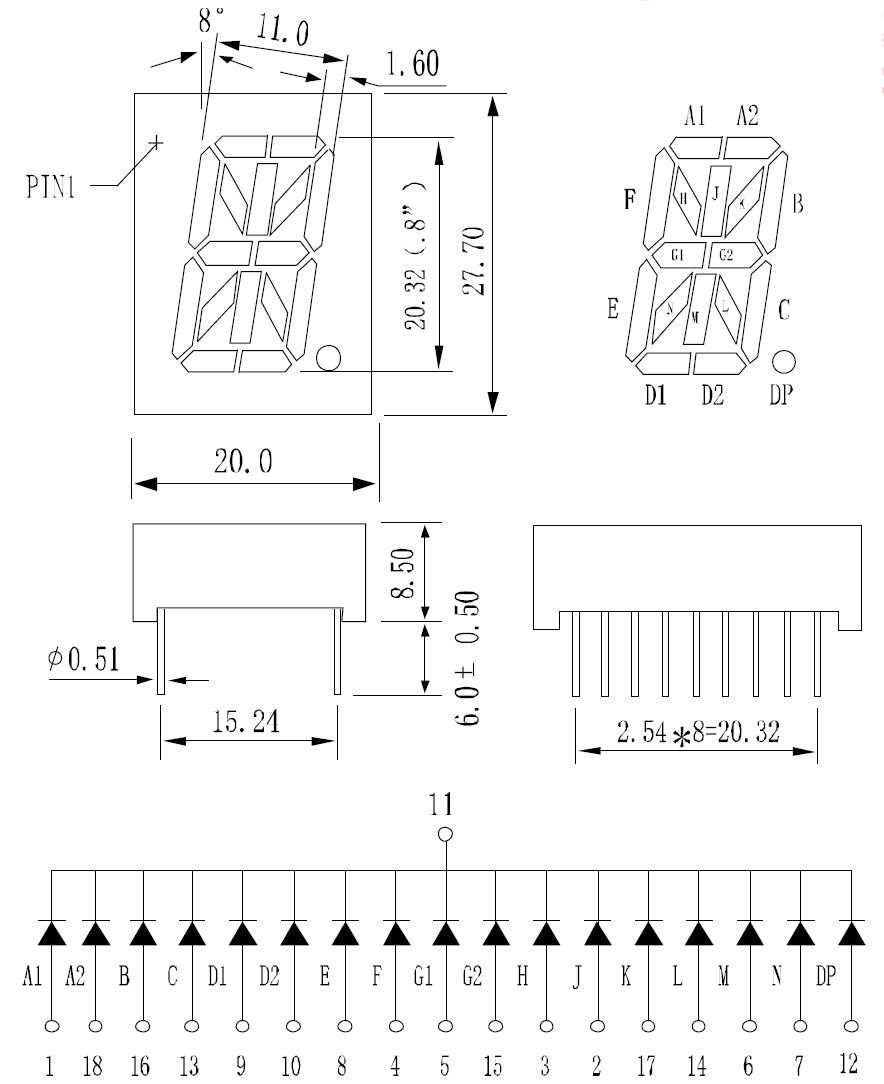

- NOTE: Please see the product images for pinout diagram
General Specifications:
- Character height: 0.8 inch (20mm)

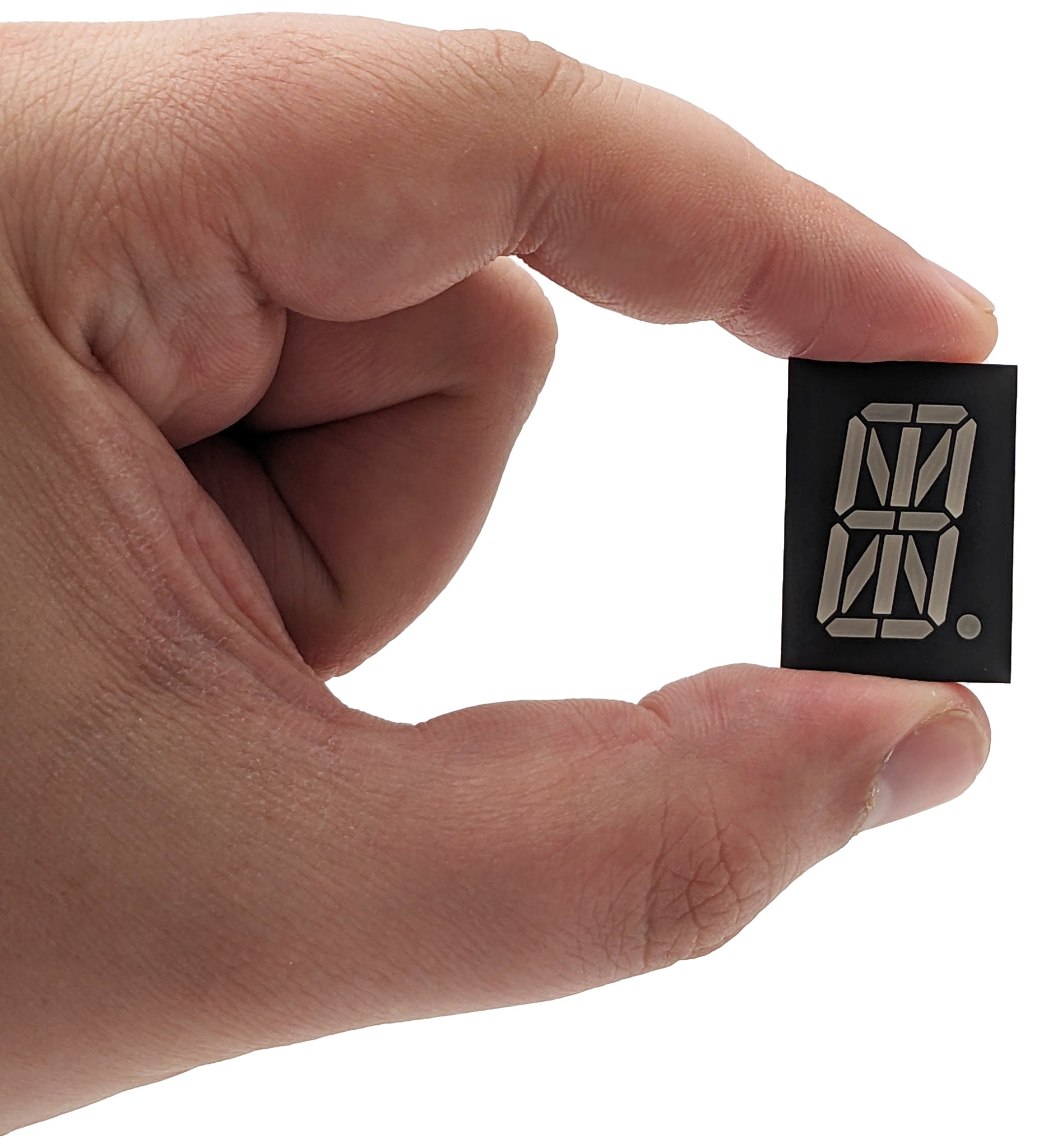

- Size: 0.79" x 0.33" x 1.09" overall

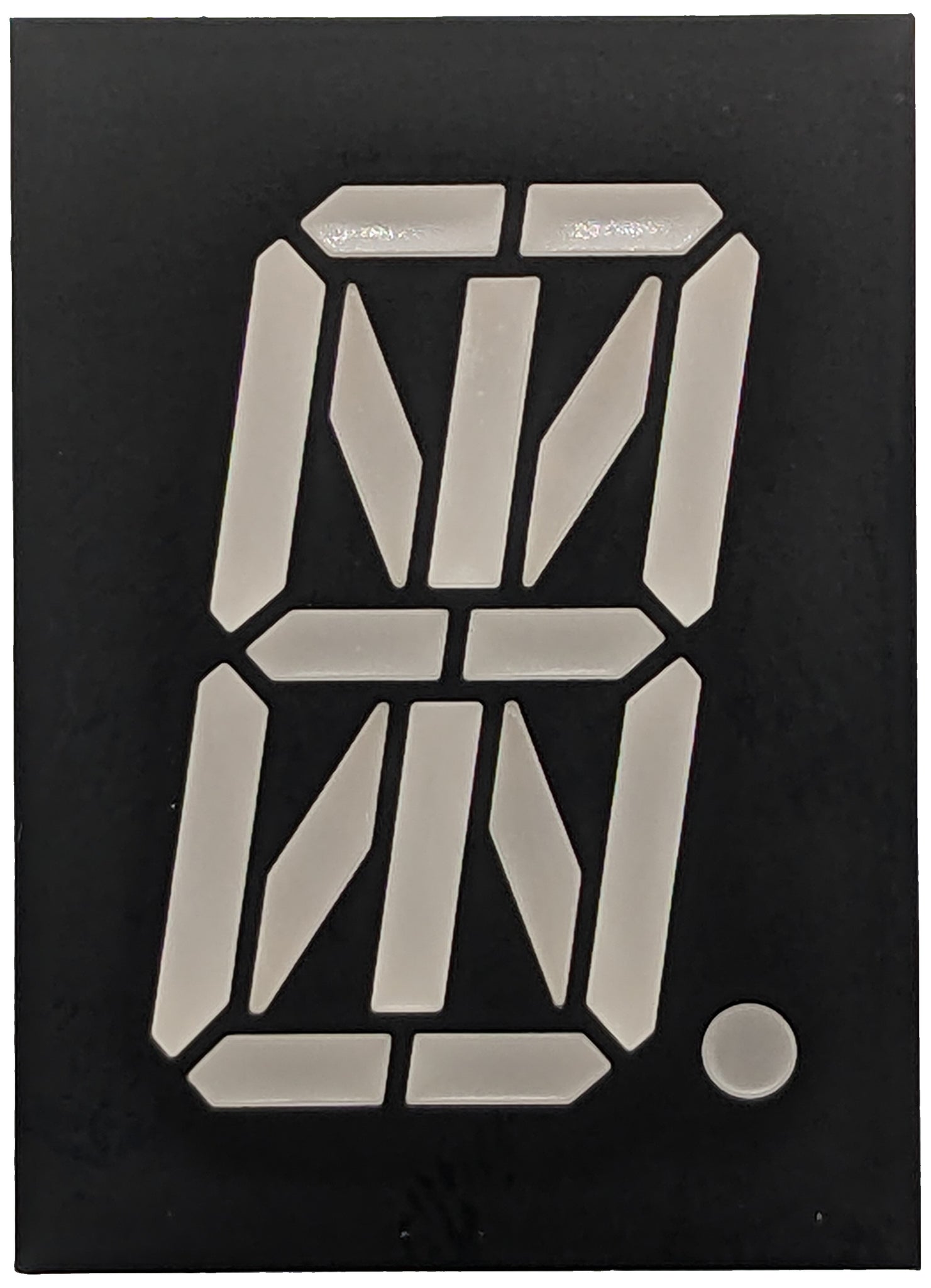

- Color: black background with white segment that illuminates bright red
Technical Specifications:
- Forward Voltage, Per Segment: 1.9V min, 2V typ, 2.5V max
- Reverse Current, Per Segment: 50μA
- Peak Emission Wavelength: 630nm min, 633nm typ, 637nm max
- Luminous Intensity, Per Segment: 23mcd min, 25mcd typ, 28mcd max
Applications:
- Home and Smart appliances
- Displaying time and digital combination
- Industrial and instrumental applications such as voltmeters and ammeters, etc.
