Logic Probes / Pulsers

10 products
  • For DTL, TTL and CMOS testing | Handy, quick, and easy to use | Circuit powered (DC 18V Max) | Captures 50 ns pulses | Instant indication, high frequency response
    $16.99
    $16.99
    Sold out

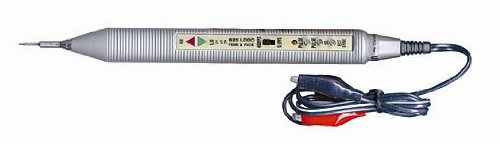

  • Logic probe and pulser in one, simplifies troubleshooting digital circuits | Max. input signal frequency: 50 mHz | Input impedance: 120kW | Minimum detectable pulse width: 10 nanosecond | pulse rate: switchable .5pps or 400pps
    $30.25
    $30.25
    Sold out
  • $19.99
    $19.99
    Sold out
  • $24.39
    $24.39
    Sold out
  • $27.99
    $27.99
    Sold out
  • Handy device for inspecting and measuring logic circuits | Displays logic levels (high or low); pulses and voltage transients down to 25 nanoseconds | Maximum input of 20MHz | Large PC board and detailed manual for fast and easy construction | SOLDERING REQUIRED - ASSEMBLY REQUIRED
    $21.49
    $21.49
    Sold out
  • Handy device for inspecting and repairing logic circuits | By injecting a signal directly to the circuit, you can avoid removing the ICs or other circuit components | Operates by producing a transient current for a short period of time and will not harm components | Signal frequency can be set to 5Hz or 400Hz | SOLDERING REQUIRED - ASSEMBLY REQUIRED
    $18.99
    $18.99
    Sold out
  • 9 Selectable Frequency Pulse Output | Handy Quick and Easy to use | Accurate Time Base Generator | LED Operation Indication | Open Collector Output
    $19.60
    $19.60
    Sold out
