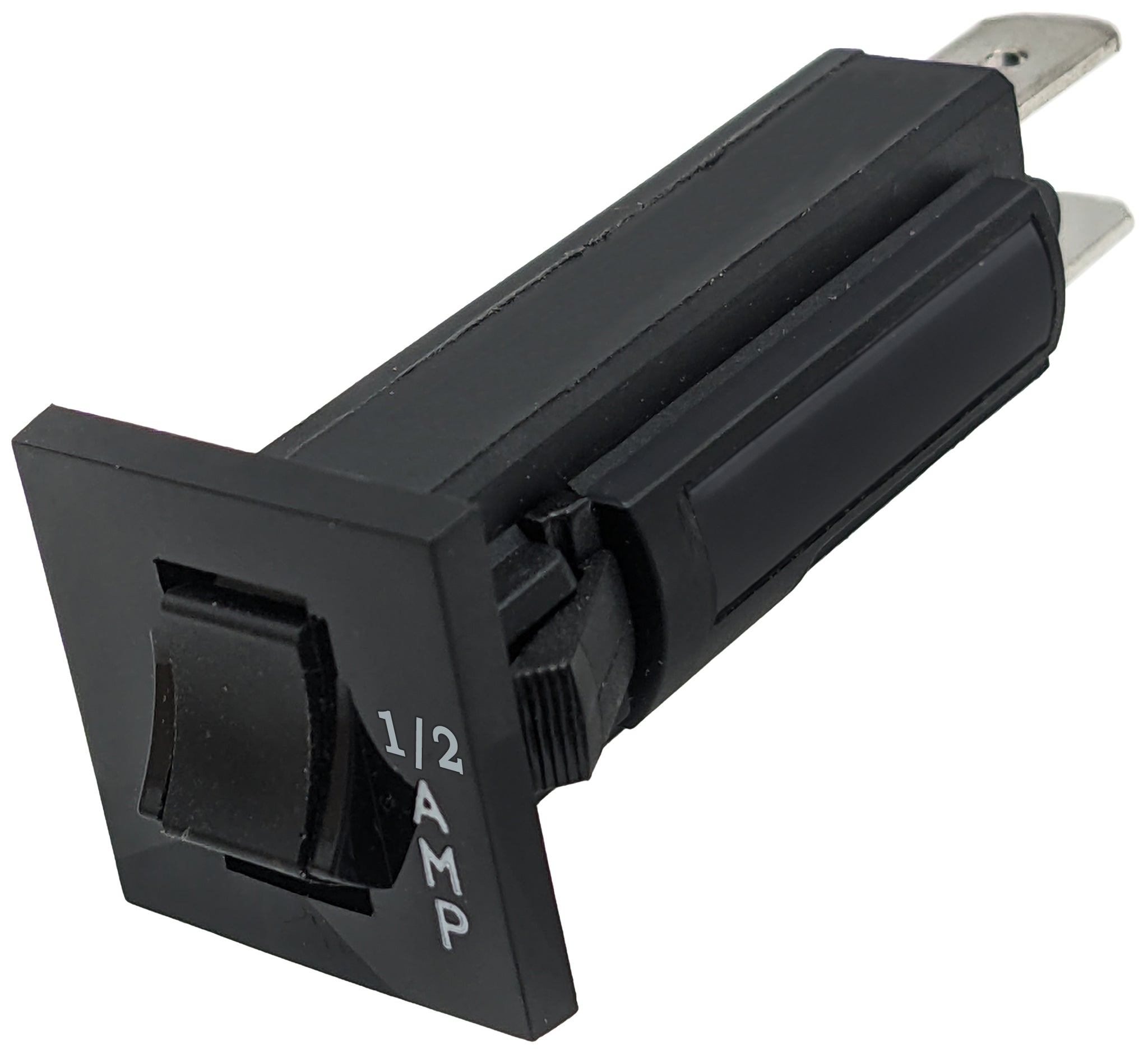

The W28-XQ1A-0.50 is a 0.5A, single-pole thermal circuit breaker rated 250V AC / 32V DC, with a push-to-reset actuator and 0.250-inch quick connect terminals. It snaps into a panel 0.032 to 0.062 inches thick and can replace a slow-blow glass cartridge fuse. When it trips, the button extends so you can see at a glance that the circuit has opened; press it to reset.

Key Features

  • 0.5A current rating, single pole, thermal overload protection
  • Rated 250V AC / 32V DC; 1500V AC dielectric strength
  • Push-to-reset button extends to show a tripped circuit
  • Snaps into 0.032–0.062" (0.81–1.57 mm) thick panels
  • 0.250" (6.35 mm) quick connect terminals
  • Resettable alternative to a slow-blow glass cartridge fuse

Specifications

Model W28-XQ1A-0.50
Current rating 0.5A
Poles 1
Overload type Thermal
Voltage rating 250V AC / 32V DC
Dielectric strength 1500V AC
Trip time 4.5 to 28 s
Terminals 0.250" (6.35 mm) quick connect
Panel thickness 0.032–0.062" (0.81–1.57 mm)

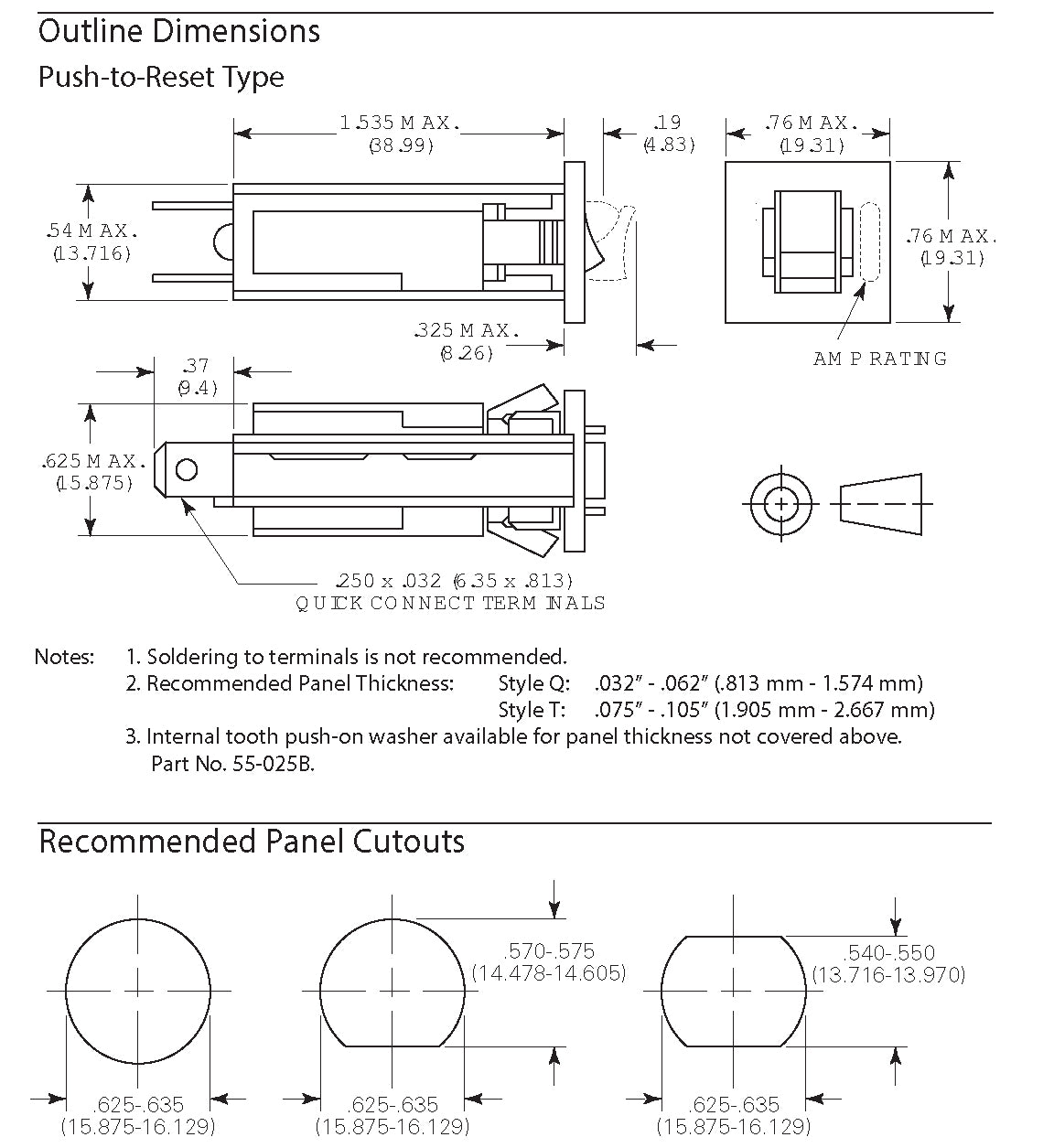

Mounting hole 0.635" dia. x 0.625" H
SKU 29CB.5

What's Included

  • 1 x 0.5A W28-XQ1A-0.50 thermal circuit breaker

Ideal For

Protecting low-current equipment, control panels, power supplies and DIY enclosures where a resettable fuse replacement is wanted.

Frequently Asked Questions

What does push to reset mean?
When the breaker trips on an overload, its button pops out. Once you've fixed the cause, press the button back in to restore the circuit; there's no fuse to replace.

What size hole does it need?
The listing gives a mounting hole of 0.635" diameter x 0.625" high, in a panel 0.032 to 0.062 inches thick.

Can it replace a glass fuse?
The listing describes it as a replacement for slow-blow glass cartridge fuses. Match the current rating to the fuse you're replacing and mount it in a suitable panel cutout.
