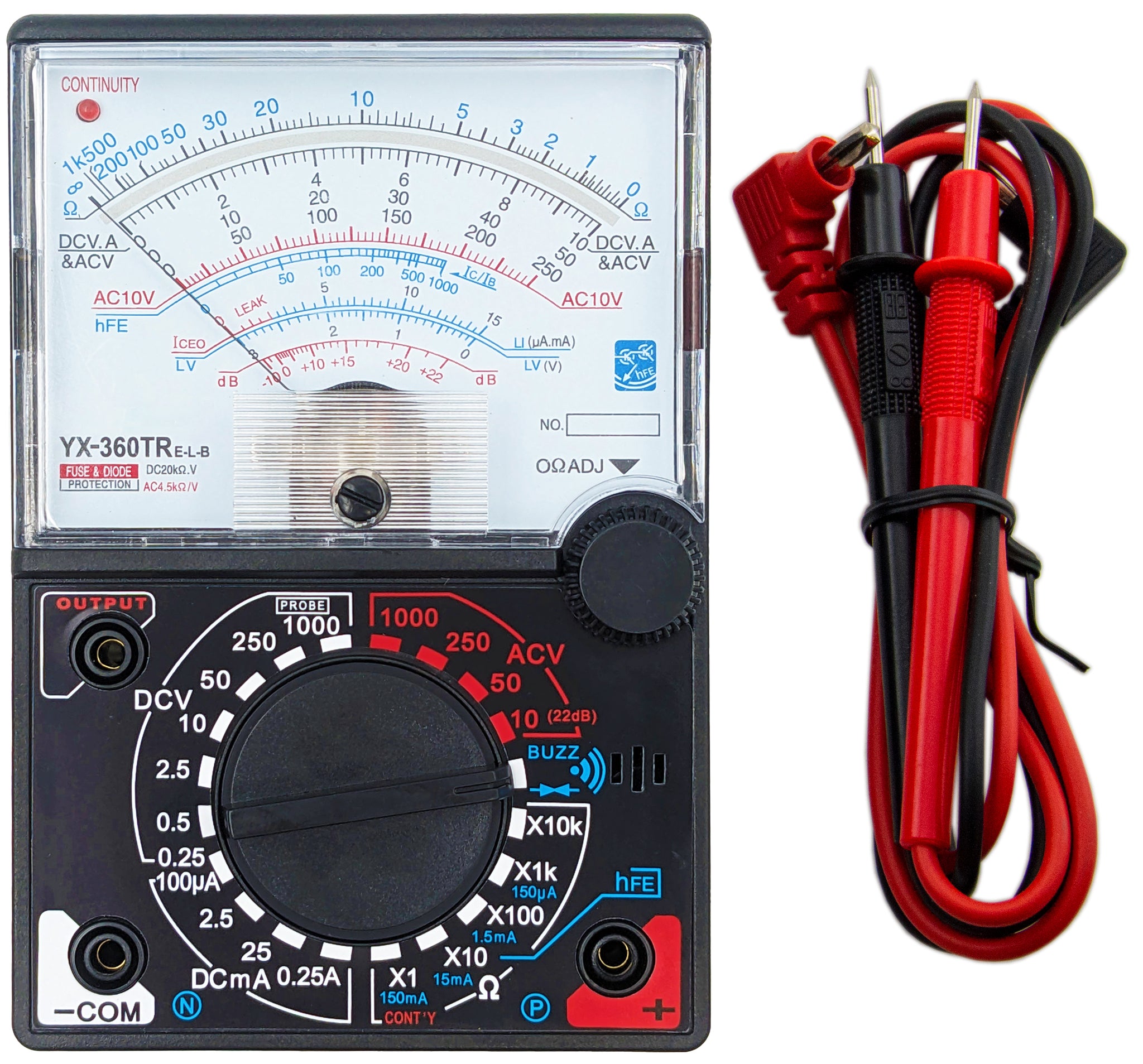

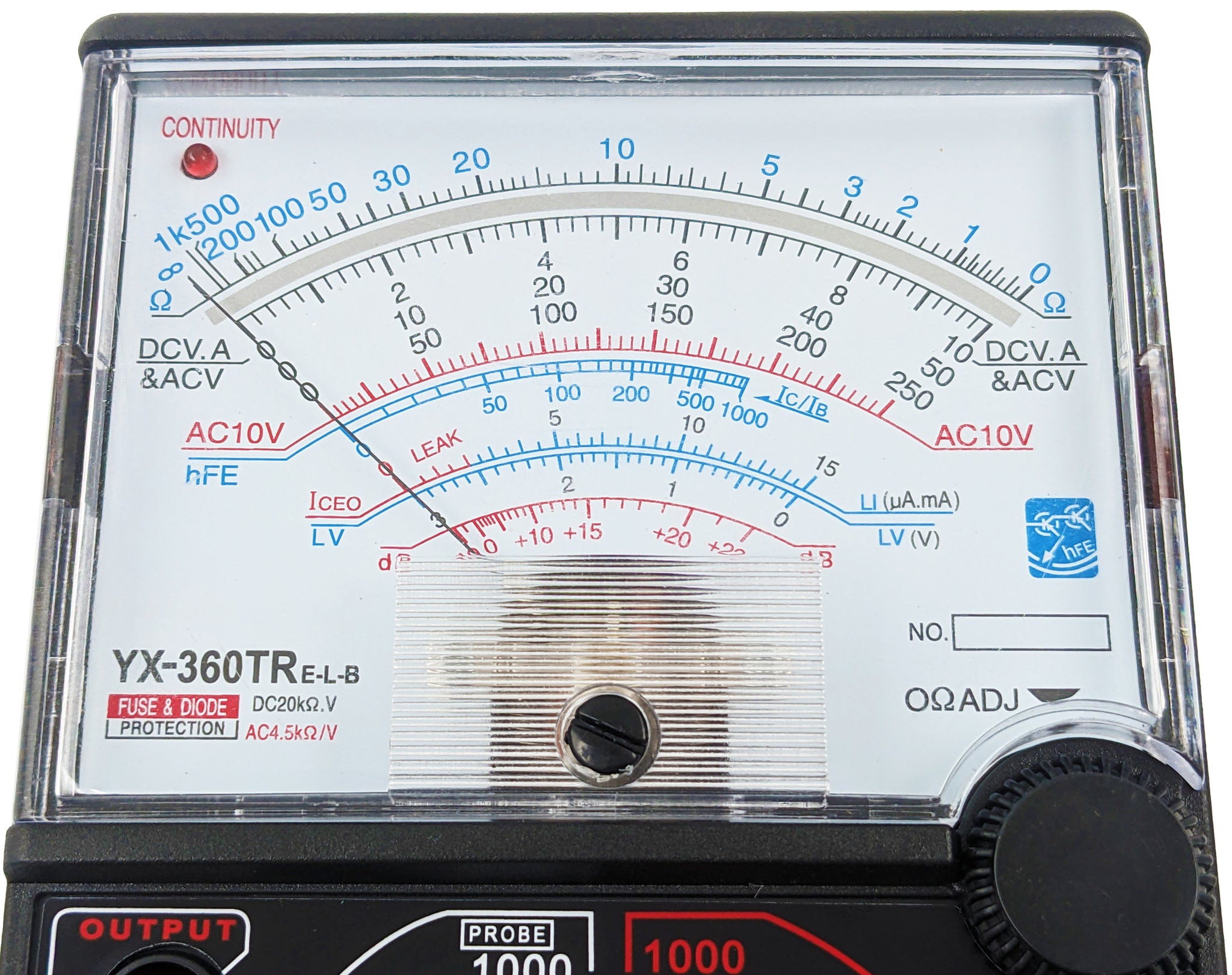

- Handheld Analog Multimeter: Traditional needle-type pointer meter for precise and reliable measurements with fuse and diode protection
- Versatile Functionality: Wide range of measurement capabilities, including AC/DC voltage, DC current, and resistance. It's perfect for electrical troubleshooting, DIY projects, and basic electronic repairs.
- Continuity LED & Buzzer: The built-in LED and buzzer provide a visual and audible indication when continuity is detected, making it easier to identify faults and malfunctions in circuits.
-

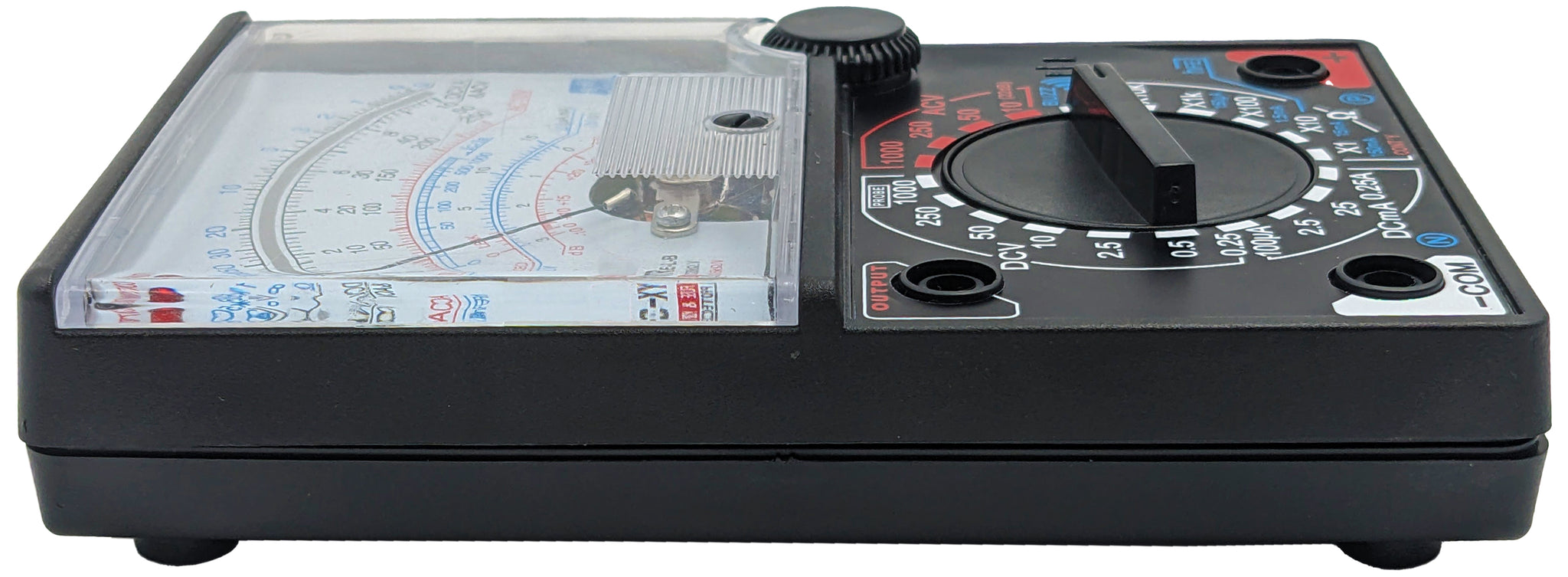

Compact and Portable Design: Weighs 8.4 ounces (with batteries installed) and features a compact size (6" x 4" x 1¼") for on-the-go tasks.

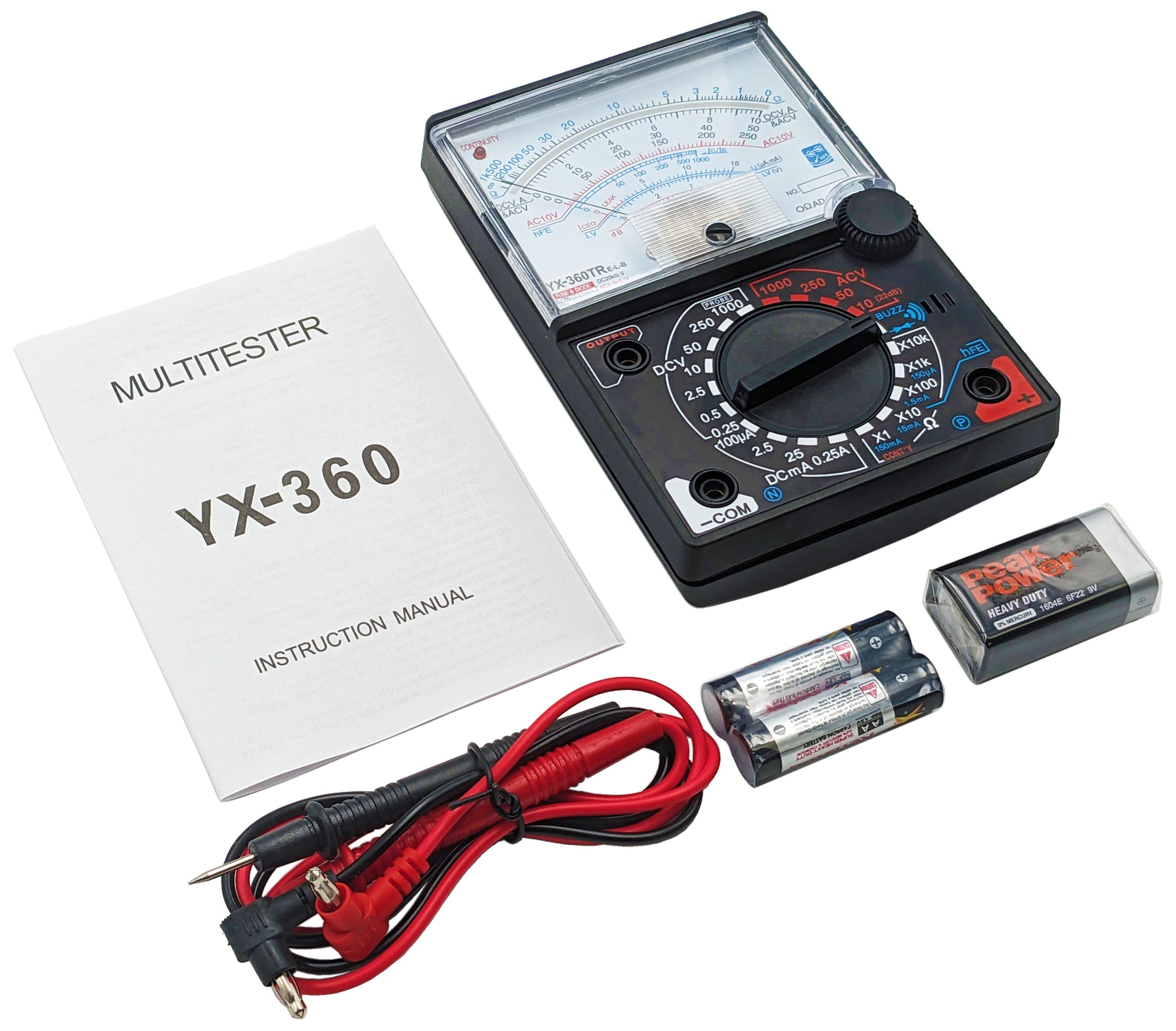

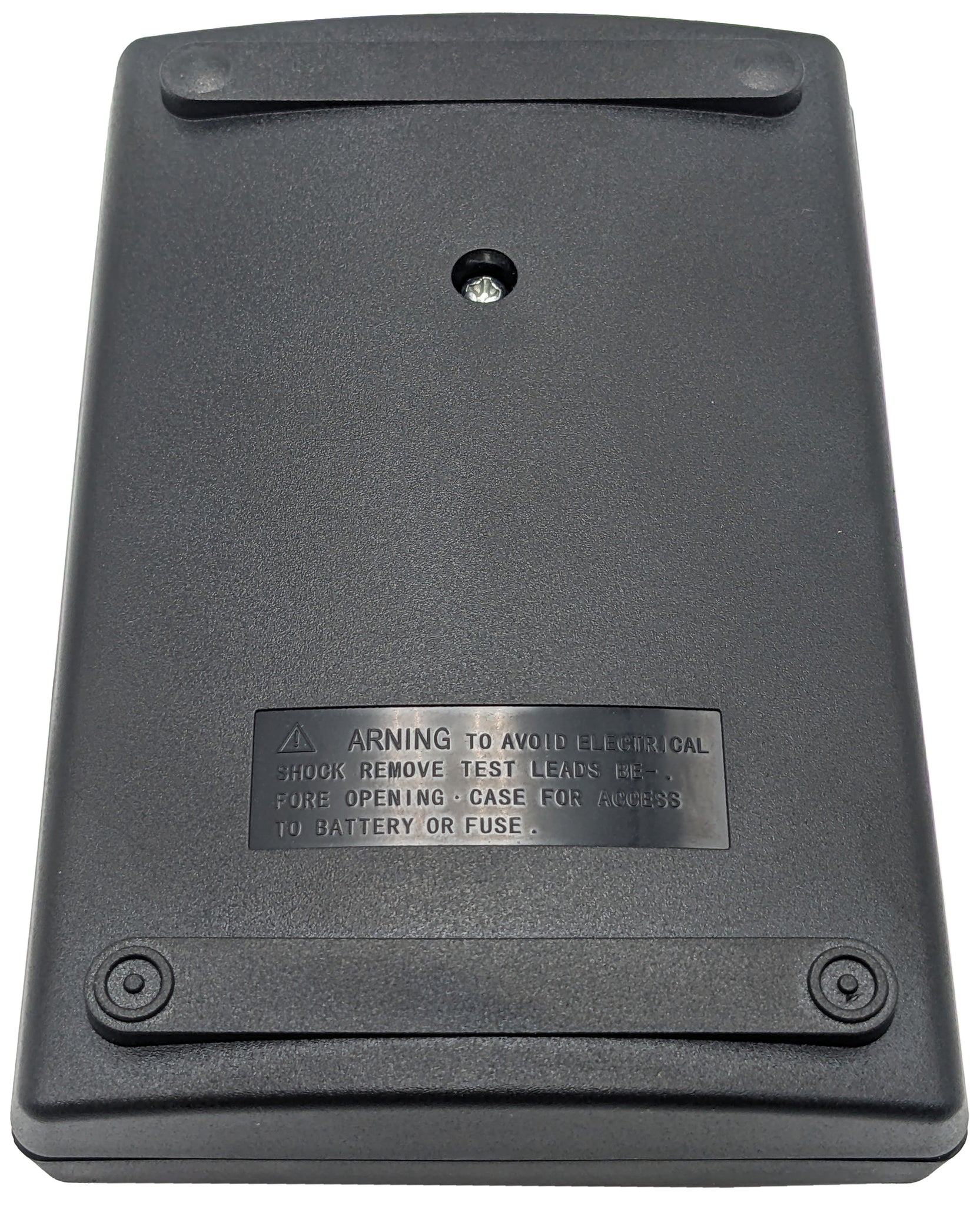

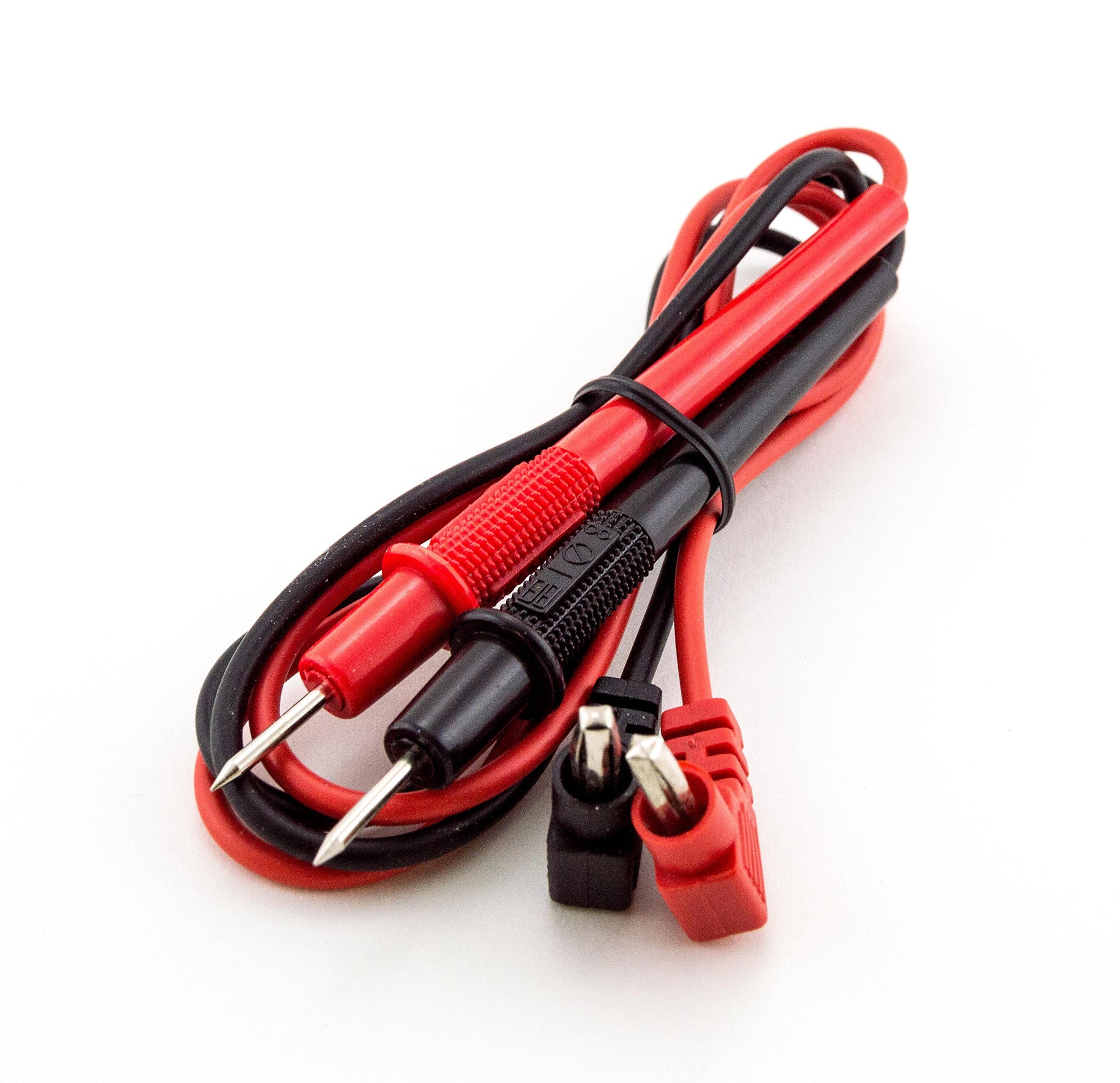

- Includes: Analog multimeter, test leads, user manual, 9V battery, and two AA batteries. Note: Requires a Phillips screwdriver to insert or replace batteries.
Specifications:
-
DC Voltage
- Ranges: 0.25/0.5/10/50/250V/1000V (Accuracy at FSD: ±3%, 1000V: ±5%)
- Sensitivity: 20k Ω/V (extendable to 25k Ω/V with optional HV probe - not included)
-
AC Voltage
- Ranges: 10/50/250V/1000V (Accuracy at FSD: ±4%, 1000V: ±5%)
- Sensitivity: 9K Ω/V
-
Decibels
- dB: -10 to +22dB. 0dB = 1mw/600Ω.
-
DC Current
- Ranges: 100µA (at 0.25VDC position), 2.5mA. 25mA. 0.25A.
- Accuracy at FSD: ±3% (10A: ±5%)
- Volt drop: 250mV
-
Resistance
- Ranges:
- x1 - 0.2Ω up to 1kΩ (midscale at 10Ω)
- x10 - 2Ω up to 10kΩ (midscale at 100Ω)
- x100 - 20Ω up to 100kΩ (midscale at 1kΩ)
- x1K - 200Ω up to 1MΩ (midscale at 10KΩ)
- x10K - 2KΩ up to 10MΩ (midscale at 100KΩ)
- Accuracy at FSD: ±3%
- Ranges:
- Iceo: 150µA - 15mA - 150mA
- hFE: 0 - 1000 (via transistor testing socket - transistor testing attachment not included)
