- Digital clamp meter measures AC and DC current to 100 amp, AC and DC voltage to 600V, and resistance to 10 kilohms
- Average-sensing meter provides accurate readings when measuring linear loads, where the current or voltage has a sinusoidal waveform
- Clamp with 12.5mm jaw opening measures current without touching or interrupting the circuit
- Peak hold function records the maximum measurement of a current surge
- Meets IEC safety standard 61010, and is rated for CAT II installations to 600V and CAT III installations to 300V

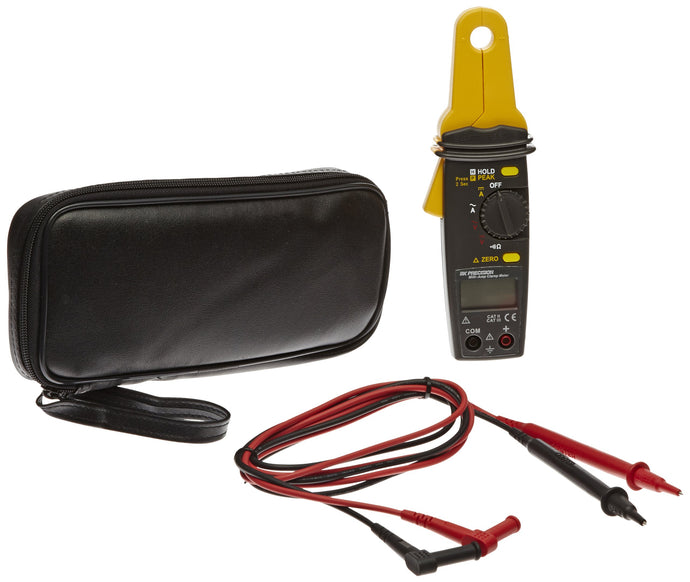

The B&K Precison 316 mini digital clamp meter is an average-sensing, auto-ranging multimeter for measuring current, voltage, and resistance in electrical testing applications. It has a clamp that measures AC and DC current to 100 amp. The clamp has two jaws that can close around an electrical conductor up to 12.5mm in diameter to measure current without touching or interrupting the circuit. A set of test leads is included for measuring AC and DC voltage to 600V and resistance to 10 kilohms. The peak hold function records the maximum measurement of a current surge. To aid documentation of readings and capture readings in tight spaces, the data hold function keeps the most recent reading on the display after disconnecting from the circuit. Its zero function allows a measurement to be set as a reference value for subsequent measurements. An audible continuity sensor confirms that the circuit conducts electricity. The meter has a rotary switch to select the property to measure, and a four-digit LCD that shows readings. It can output an analog signal for reading measurements on a secondary device, such as an oscilloscope. The unit operates on two AA batteries, and turns off automatically after 30 minutes of non-use to conserve battery life. It has a low-battery indicator that signals when the battery needs to be replaced. Clamp meters are typically used by electrical engineers to measure properties of electrical current without physically touching or disconnecting the conductor.
This average-sensing, or average-responding, meter provides accurate readings when measuring linear loads, such as standard induction motors and incandescent lights, where the current or voltage has a sinusoidal waveform. It is auto-ranging, so it automatically selects the appropriate operating range for the property being measured. Accuracy and resolution specifications vary according to the range being measured. It meets International Electrotechnical Commission (IEC
Product Dimensions (L x W x H): 236 x 109 x 51 MM
Product Weight: 1 LB
