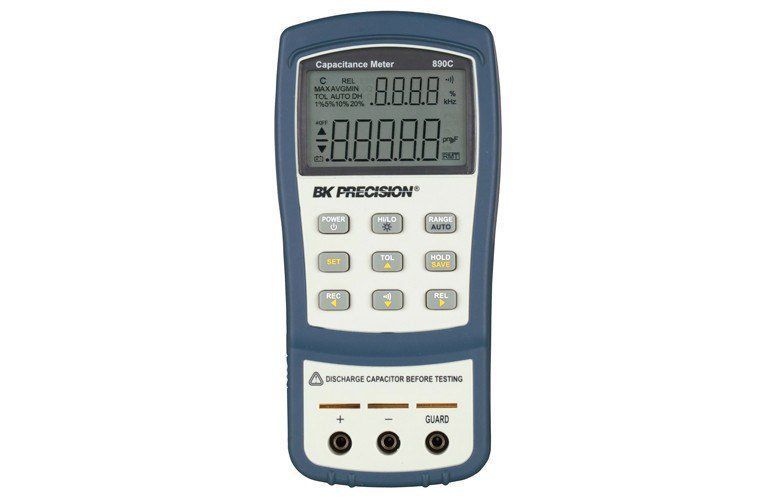

B&K Precision 890C Capacitance Sorting Meter, Autoranging Capacitance Meter

• Dual display simultaneously displays value and deviation from selected tolerance
• Sort on preset tolerance of 1, 5, 10 percent
• Program unique values to sort for specific circuit applications
• RS232 interface for data logging software available

The 830C is a 11,000-count handheld capacitance meter that measures capacitance up to 50 mF. Straightforward to operate, this meter makes measurements quickly and simplifies the capacitance sorting process. Unlike other handheld instruments such as LCR meters that make measurements using an AC signal with a specific test frequency, it measures capacitance by applying a constant current that briefly charges, then discharges the connected capacitor. It includes many handy functions. The compare mode which supports 25 sets of High/Low limits, provides a convenient means to sort capacitors without needing to set up the meter each time. Data logging, Hold/Min/Max Average recording, tolerance, and relative mode features offer additional component troubleshooting tools.

0.5% basic accuracy
Measure capacitance up to 50 mF
Bright LCD backlight
Fast auto range design for rapid, easy component measurements
USB (Virtual COM) interface
SCPI compliant commands for remote communication
Software for data logging and front panel emulation available as free download

Applications:
Capacitive component troubleshooting
Electronic assembly
Component sorting
Quality control

Includes a 120 V AC adapter as a standard accessory.

Product Weight: 0.05 LB
