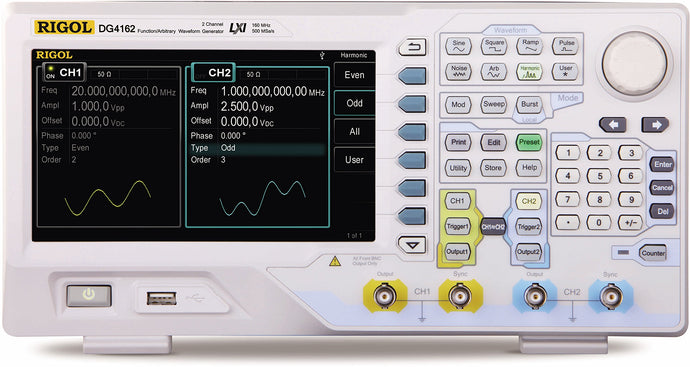

Rigol DG4162 Arbitrary Waveform Generator 160 MHz

• •Generators up to 160 MHz
• •2 output channel
• •500 MSa/s sample rate
• •130 built-in waveforms
• •7-inch color LCD display

Introdcution:

As Rigol's newest waveform generator, the DG4000 series is part of a new family of fast, easy-to-use, ultra-modern testing instruments. DG4000 is a multifunctional generator that helps accomplish a range of testing by combining many functions into one instrument. Functions include Function Generation, Arbitrary Waveform Generation, Pulse Generation, Harmonic Generation, and Analog/Digital Modulation and Counting. The DG4000 utilizes Direct Digital Synthesizer (DDS) technology, which delivers stable, precise, low distortion signals. The sleek new design features a high resolution 7" display screen, while user-friendly interface design and panel layout improves efficiency.

Features:

•Generators up to 160 MHz
•2 output channel
•500 MSa/s sample rate
•130 built-in waveforms
•7-inch color LCD display
•14 bit vertical resolution
•Standard Interfaces including LXI-C (Ethernet), USB device and USB host

Specification:

Channels:2
Frequency:160 MHz
Sample Rate:500 MSa/s
Waveform Length:16 Kpts
Vertical Resolution:14 bits
Display Type:7 inches TFT WVGA(800X480)

Product Dimensions (L x W x H): 439 x 284 x 264 MM

Product Weight: 1.7 LB
