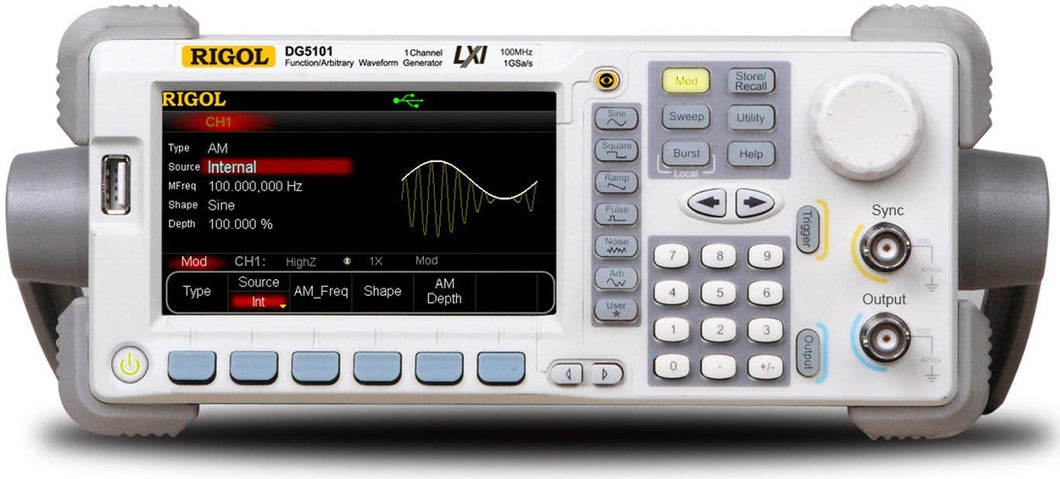

Rigol DG5101 Single Channel Function/Arbitrary Waveform Generator 100MHz 1GSa/s 14 bits 128Mpts

• 100 MHz bandwidth
• 1 GSa/Sec waveform output
• 14 bit vertical resolution
• 128 Million Points of Arbitrary Waveform Memory

Introduction:

DG5101 is a multipurpose generator combining different capabilities including Function Generation, Arbitrary Waveform Generation, IQ Baseband Source/IQ IF Source, Frequency Hopping Source (optional) and Pattern Generation (optional). With single and true, independent, dual-channel models that provide adjustable phases between the two channels. The DG5101 adopts Direct Digital Synthesizer (DDS) technology, which providing stable, precise, low distortion signals. The user-friendly interface design and panel layout improves efficiency or utilize an interface for complete programmability.

Features:

•100 MHz bandwidth
•1 GSa/Sec waveform output
•14 bit vertical resolution
•128 Million Points of Arbitrary Waveform Memory
•Built in standard modulations including IQ modulation for digital baseband generation including QPSK and QAM formats
•Standard Interfaces including LXI-C (Ethernet), USB device and host, and GPIB
•Options including output amplifier (PA-1011), digital generator (DG-POD-A), and frequency hopping capability

Specifications:

Channels:1
Frequency:100 MHz
Sample Rate:1 GSa/s
Waveform Length:Up to 128 Million points
Resolution:1 µHz
Amplitude range:5 mVpp - 10 Vpp(50 O),10 mV - 20 Vpp(into open circuit)
Vertical Resolution:14 bits
Standard Interface:USB Host(2),USB Device, GPIB, LXI-C (Ethernet)
Options:Hop Frequency Module, Logic Signal Output Module, Power Amplifier
