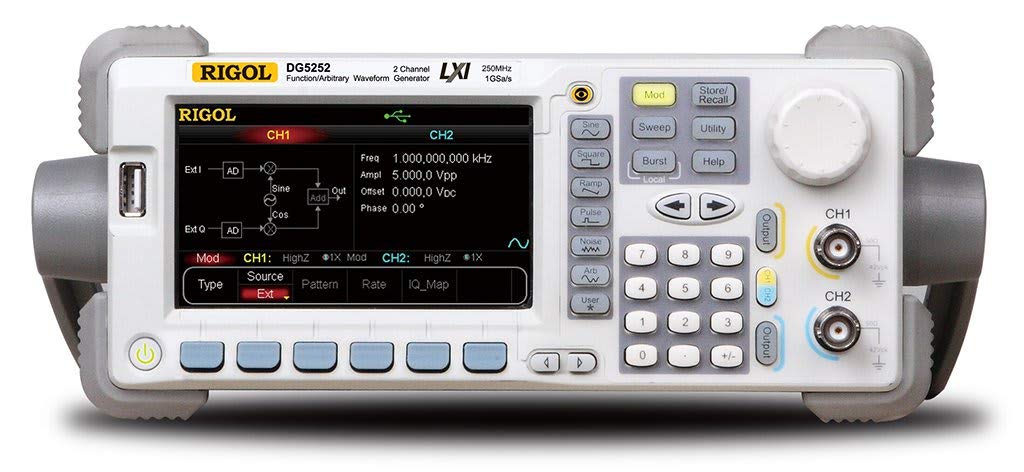

Rigol DG5252 Function Generators - Channels: 2, Frequency Maximum: 250 Mhz

• 250 MHz, 2 Channel, 14 bit Arbitrary Waveform and Function Generator with 128 Mpt arb memory
• 250 MHz bandwidth
• 2 Channels
• 1 GSa/Sec waveform output
• 14 bit vertical resolution

Rigol DG5252 250 MHz 2 Channels Arbitrary Waveform Function GeneratorRigol DG5252 250 MHz 2 Channels Arbitrary Waveform Function Generatorx14 bit resolutionSeparate adjustment of pulse rise / fall time, Dual channel model supports frequency and phase couplingSupported modulationAM, FM, PM, ASK, FSK, PSK, PWM & IQSignal InterfacesWaveform output, synchronous signal output, modulation input, 10MHz reference input /output, trigger input/outputDG5000 Series Waveform GeneratorsDG5252 is a multipurpose generator combining different capabilities including Function Generation, Arbitrary Waveform Generation, IQ Baseband Source/IQ IF Source, Frequency Hopping Source (optional) and Pattern Generation (optional). With single and true, independent, dual-channel models that provide adjustable phases between the two channels. The DG5252 adopts Direct Digital Synthesizer (DDS) technology, which providing stable, precise, low distortion signals. The user-friendly interface design and panel layout improves efficiency or utilize an interface for complete programmability.DG5000 is a multifunctional generator that combines many functions in one, including Function Generator, Arbitrary Waveform Generator, IQ Baseband Source/IQ IF Source, Frequency Hopping Source (optional) and Pattern Generator (optional). It provides single and dual-channel models. The dual-channel model, with two channels having complete equivalent functions and precisely adjustable phase deviation between the two channels, is a real dual-channel signal generator.DG5000, adopting the Direct Digital Synthesizer (DDS) technology, can provide stable, precise, pure and low distortion signal. The user-friendly interface design and panel layout bring users exceptional experience. Besides, the remote control of the generator can be easily done through different standard configuration interfaces, which provides more solutions f

Product Dimensions (L x W x H): 589 x 381 x 260 MM

Product Weight: 0.75 LB
