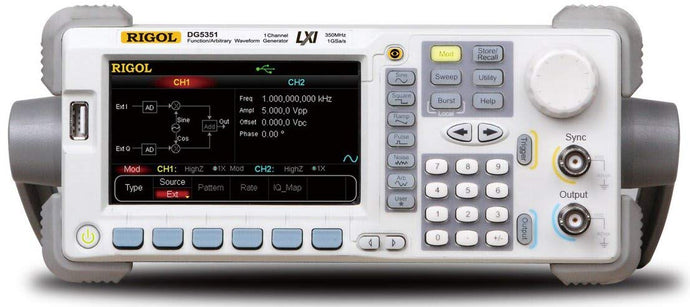

Rigol DG5351 Function Generators - Channels: 1, Frequency Maximum: 350 Mhz

• 350 MHz, 1 Channel, 14 bit Arbitrary Waveform and Function Generator with 128 Mpt arb memory
• 350 MHz bandwidth
• 1 Channel
• 1 GSa/Sec waveform output
• 14 bit vertical resolution

Rigol DG5351 350 MHz 1 Channel Arbitrary Waveform Function GeneratorRigol DG5351 350 MHz 1 Channel Arbitrary Waveform Function Generatorx14 bit resolutionSeparate adjustment of pulse rise / fall time, Dual channel model supports frequency and phase couplingSupported modulationAM, FM, PM, ASK, FSK, PSK, PWM & IQSignal InterfacesWaveform output, synchronous signal output, modulation input, 10MHz reference input /output, trigger input/outputDG5000 Series Waveform GeneratorsDG5351 is a multipurpose generator combining different capabilities including Function Generation, Arbitrary Waveform Generation, IQ Baseband Source/IQ IF Source, Frequency Hopping Source (optional) and Pattern Generation (optional). With single and true, independent, dual-channel models that provide adjustable phases between the two channels. The DG5351 adopts Direct Digital Synthesizer (DDS) technology, which providing stable, precise, low distortion signals. The user-friendly interface design and panel layout improves efficiency or utilize an interface for complete programmability.DG5000 is a multifunctional generator that combines many functions in one, including Function Generator, Arbitrary Waveform Generator, IQ Baseband Source/IQ IF Source, Frequency Hopping Source (optional) and Pattern Generator (optional). It provides single and dual-channel models. The dual-channel model, with two channels having complete equivalent functions and precisely adjustable phase deviation between the two channels, is a real dual-channel signal generator.DG5000, adopting the Direct Digital Synthesizer (DDS) technology, can provide stable, precise, pure and low distortion signal. The user-friendly interface design and panel layout bring users exceptional experience. Besides, the remote control of the generator can be easily done through different standard configuration interfaces, which provides more solutions for

Product Dimensions (L x W x H): 589 x 381 x 260 MM

Product Weight: 2.46 LB
