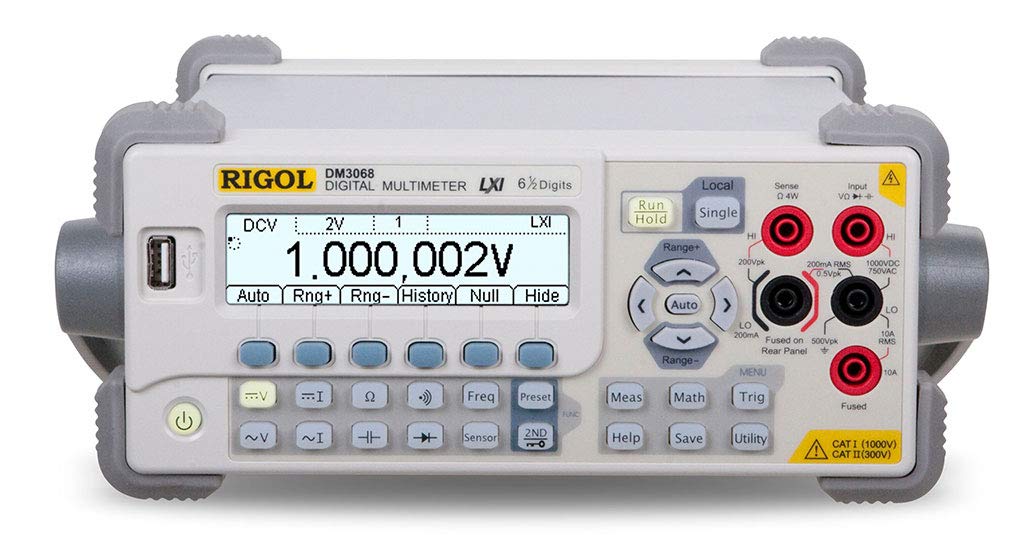

Rigol DM3068 6 1/2 Digit Benchtop Digital Multimeter

• Measurements: AC/DC current and voltage, resistance, capacitance, frequency, temperature
• Tests: continuity test, diode test
• Functions: True RMS measurements, Math function, Statistic function
• More than 8.000 measurements per second
• True 6 ½ digit resolution. Histogram display

RIGOL DM3068 is a bench digital multimeter which measures AC/DC current and voltage, resistance (2 and 4 wire), capacitance, frequency, temperature, and performs continuity and diode test.

Features
True 6 ½ digit resolution
Functions: AC/DC current and voltage, resistance, capacitance, frequency, temperature, continuity test, diode test
True RMS measurements
More than 8.000 measurements per second
Math function
Statistic function
Support multiple temperature sensors
Histogram display

Technical Specifications
Display: LCD display, 256 × 64 mm
DC voltage: 200 mV - 1000 V, 0.0035+0.0005
AC voltage: 200 mV - 750 V, 0.06+0.03
DC current: 200 µA - 10 A, 0.050+0.005
AC current: 20 mA - 10 A, 0.10+0.04
Resistance (2-wire and 4-wire): 200 O - 100 MO, 0.010+0.001
Capacitance: 2 nF - 10000 µF, 1 + 0.5
Frequency: 43 Hz - 1 MHz / 1 µsec - 0.33 sec, 0.007
Interfaces: GPIB, LAN, USB 2.0 device and host, RS-232C
Power: AC 100 V - 120 V, 45 Hz - 440 Hz/ AC 200 V - 240 V, 45 Hz - 66 Hz
Dimensions (H × W × D): 107 × 231 × 290 mm
Weight: 3.2 kg

Package Contents
RIGOL DM3068 multimeter (1 pc.)
Test leads (1 pair)
USB interface cable (1 pc.)
Spare fuse (1 pc.)
Power cord (1 pc.)


Product Dimensions (L x W x H): 445 x 343 x 221 MM

Product Weight: 0.26 LB
