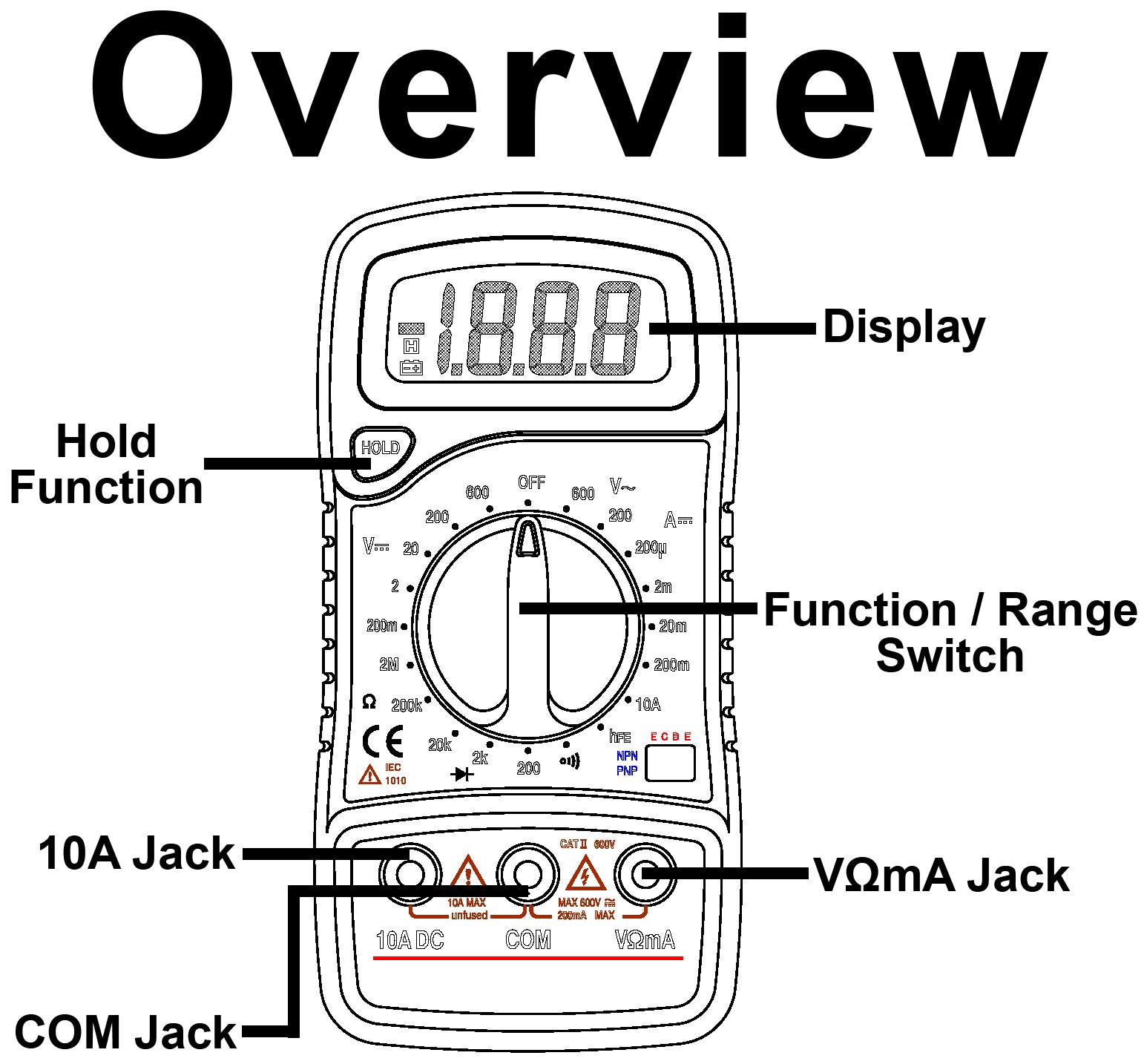

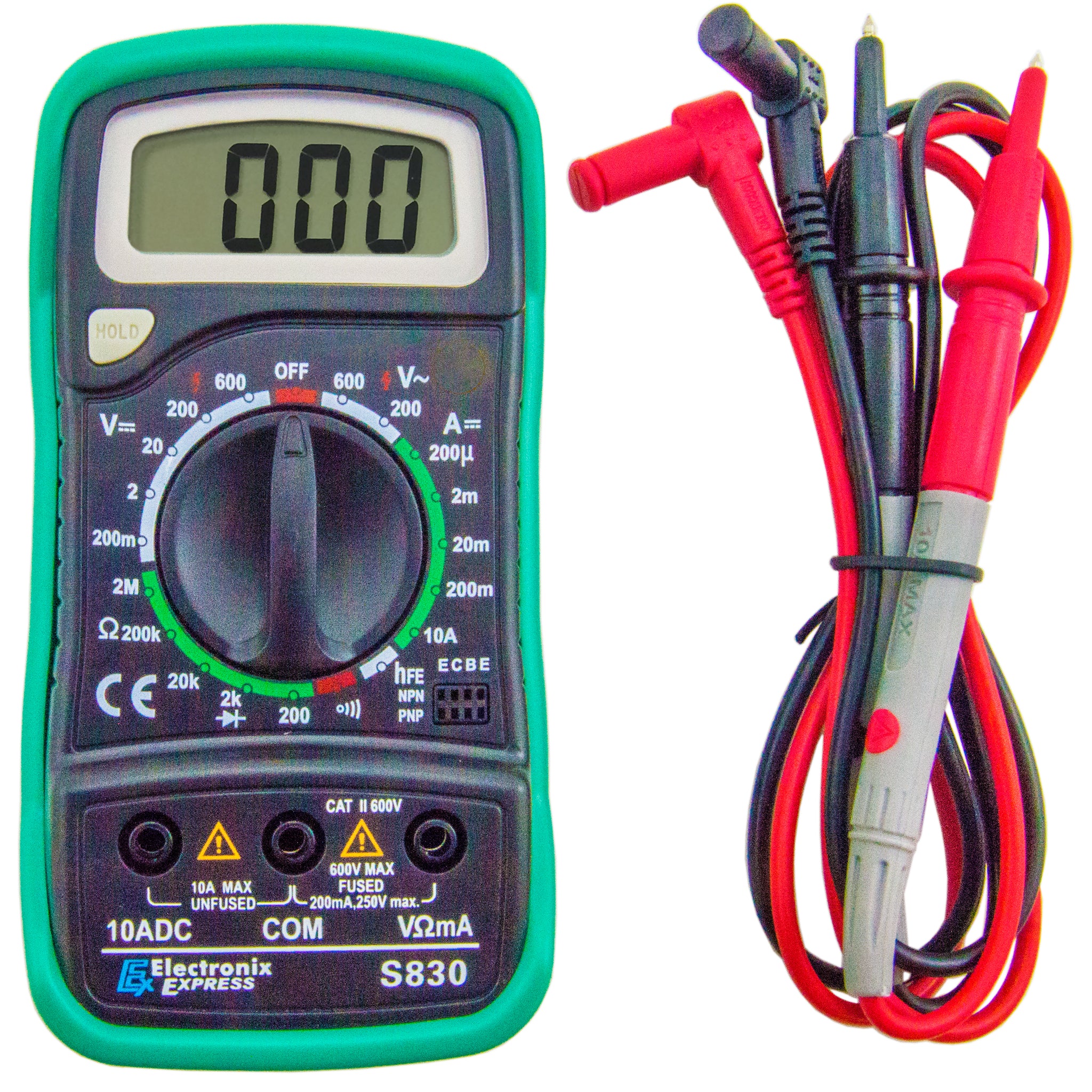

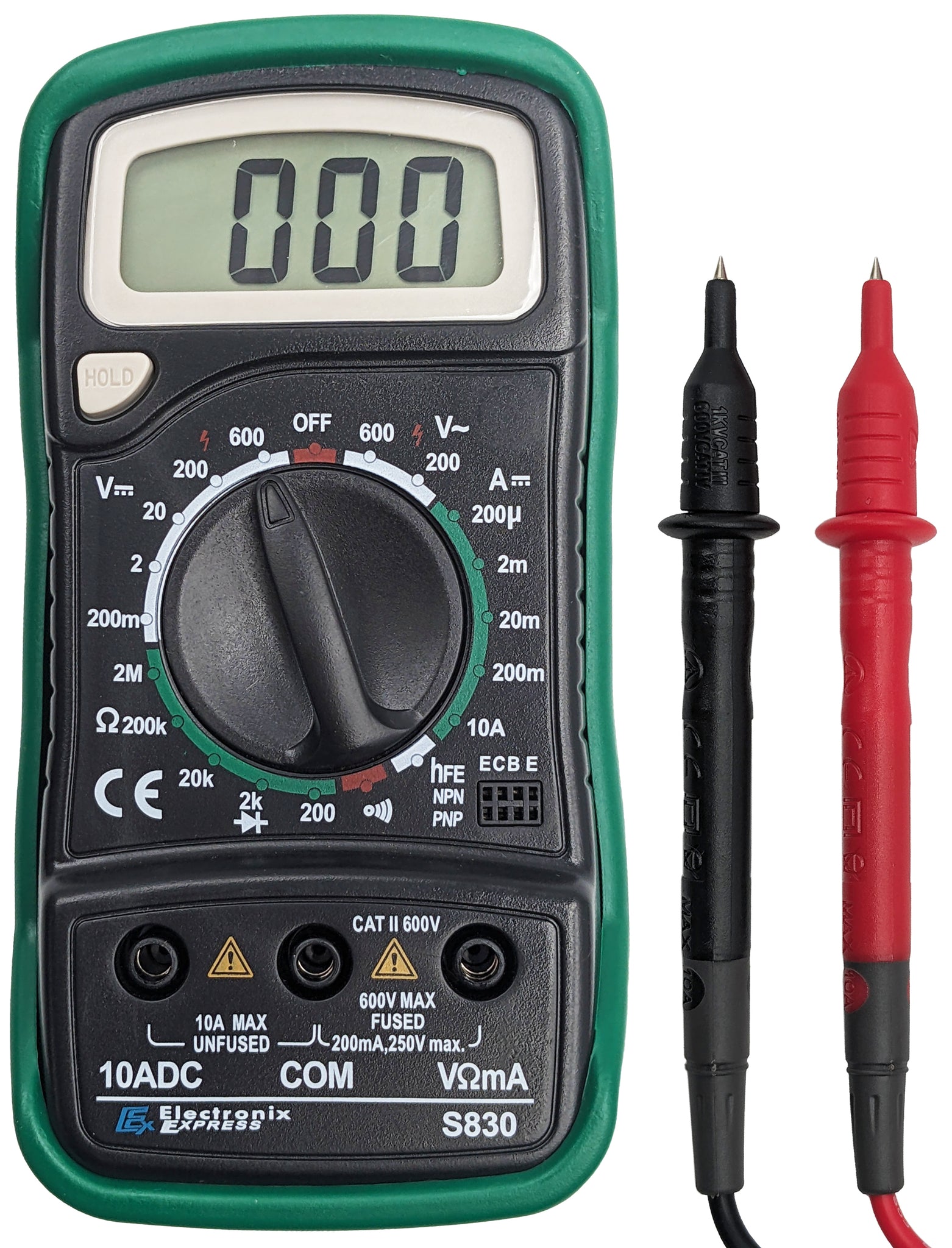

This is a small handheld 3½-digit digital multimeter with a 1999-count LCD and 15 mm tall digits. It measures DC and AC voltage to 600 V, DC current to 10 A and resistance to 2 MΩ, and tests continuity, diodes and transistor hFE. A protective rubber boot with a built-in stand is included.
Key Features
- 3½-digit, 1999-count LCD with 15 mm digits
- DC volts 200 mV–600 V; AC volts 200 V / 600 V
- DC current 200 µA–20 mA plus 10 A
- Resistance 200 Ω–2 MΩ
- Continuity buzzer, diode test, hFE transistor test (1–1000)
- Data hold; overload protection

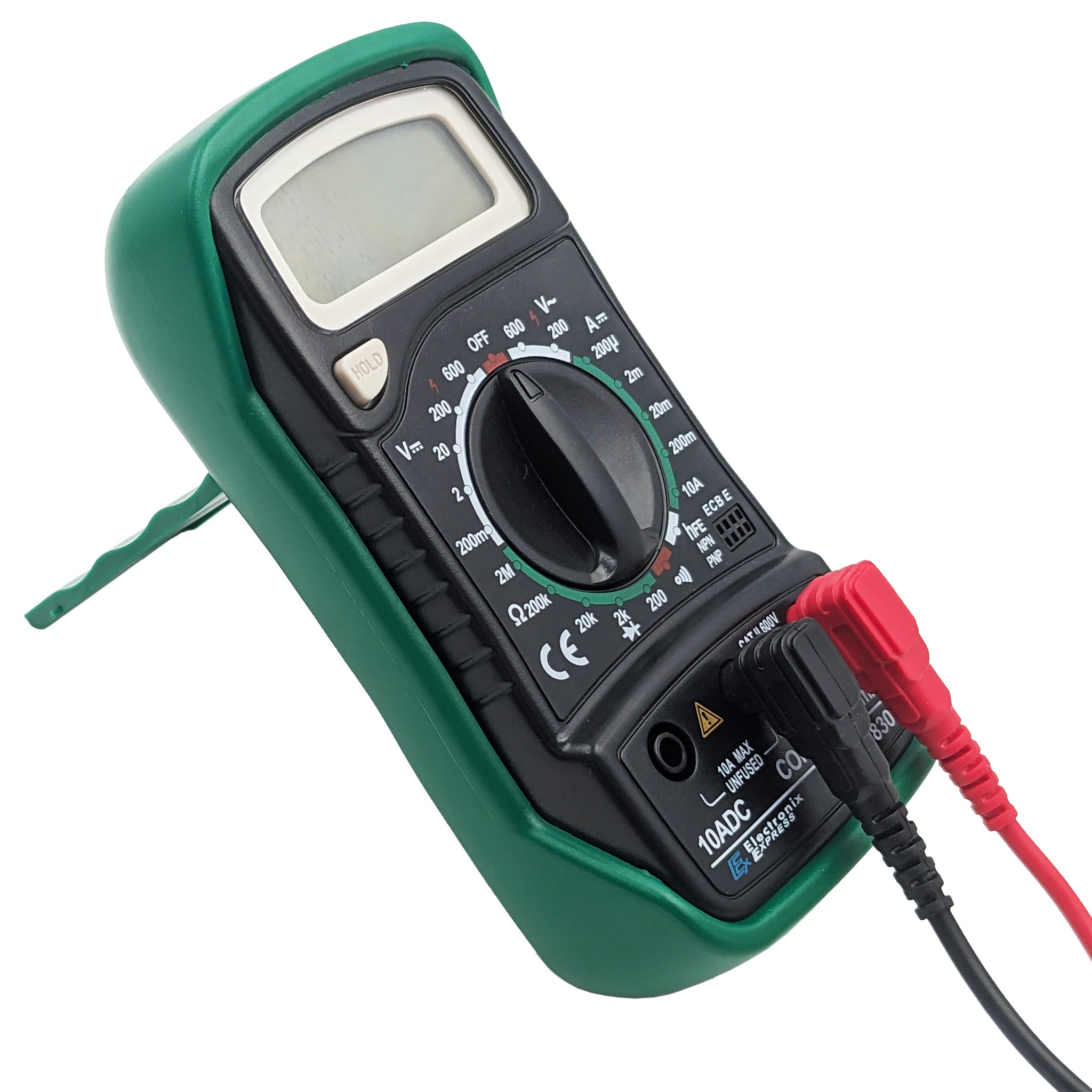

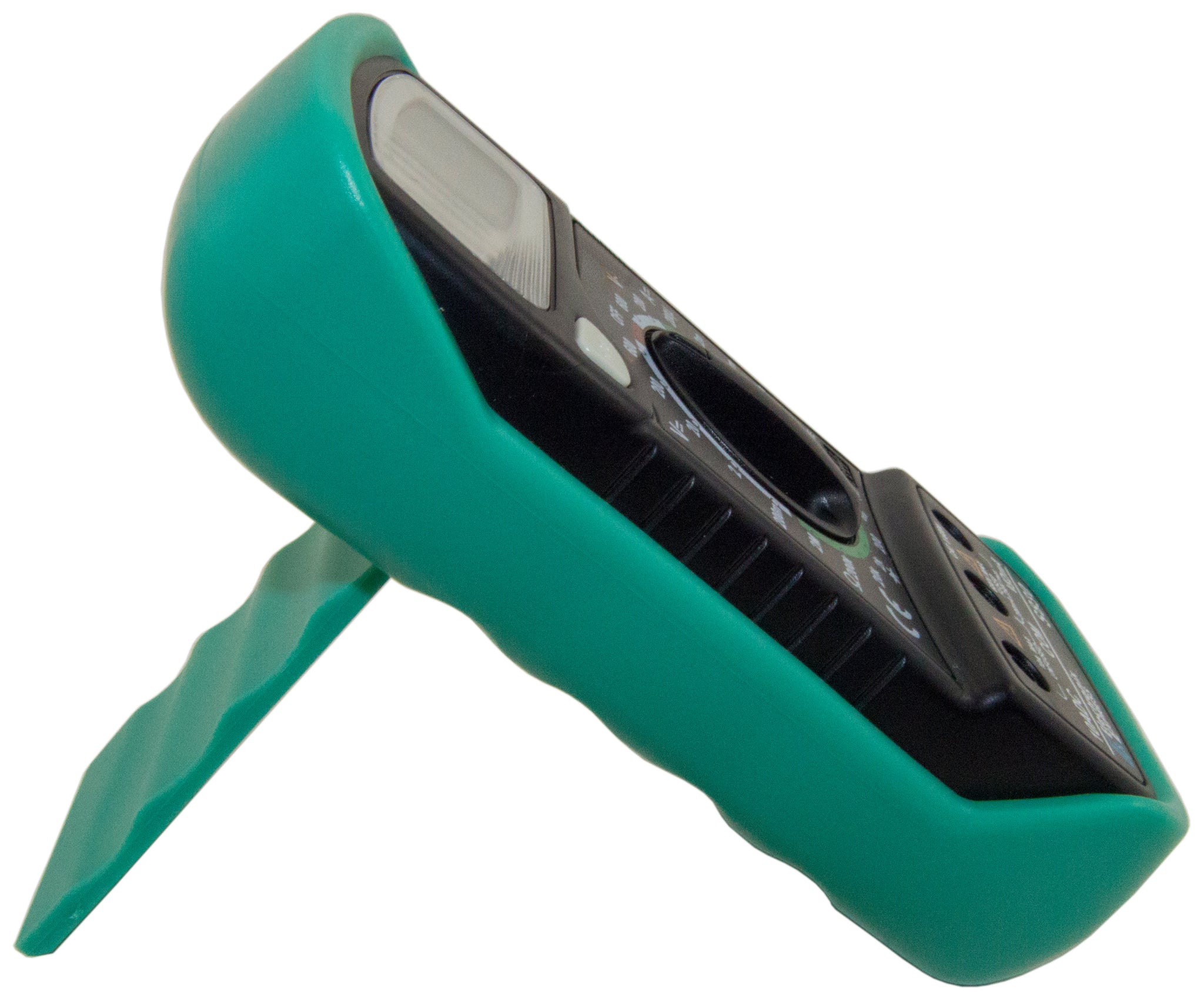

- Protective rubber boot with collapsible stand

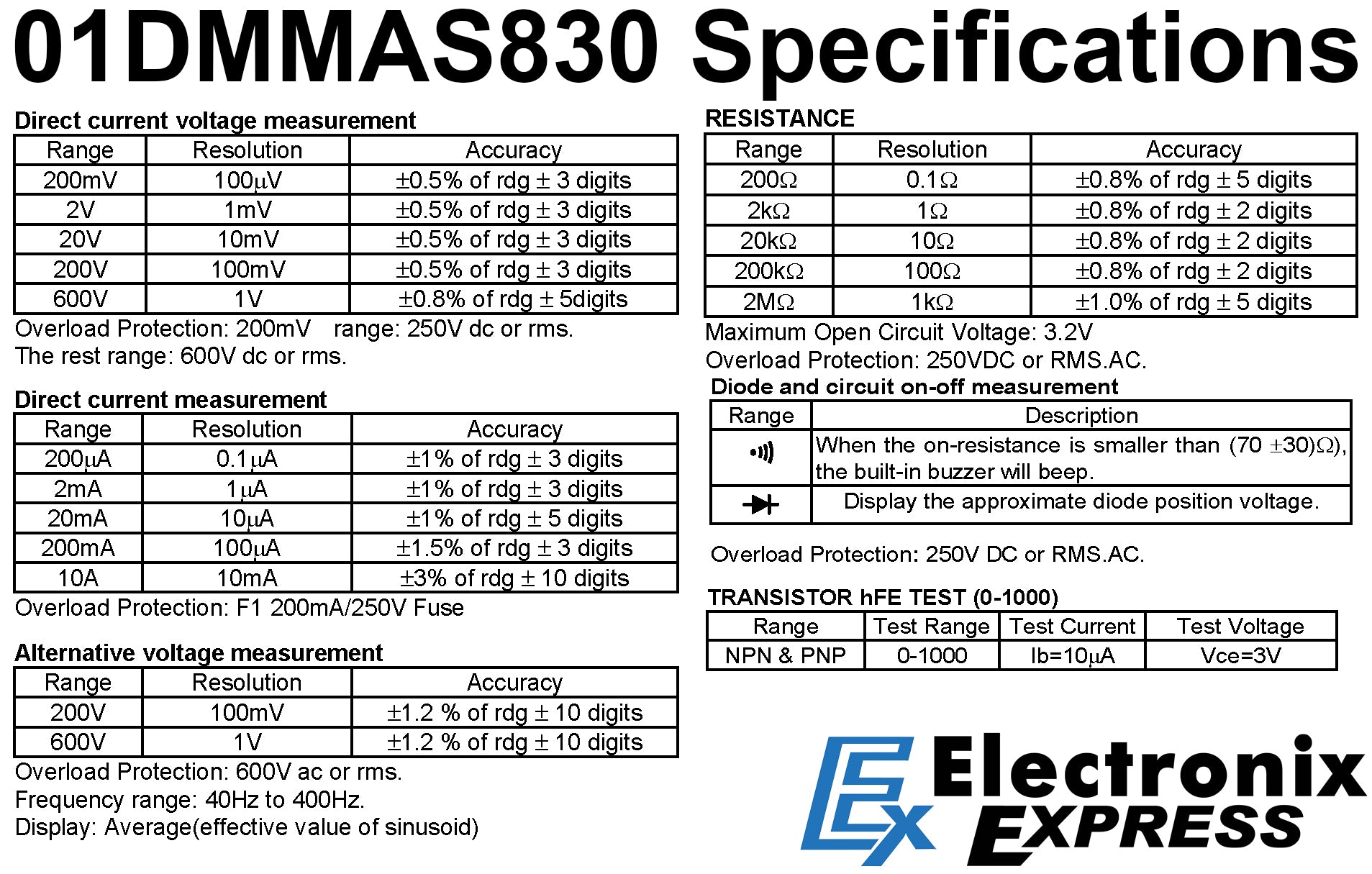

Specifications
| Display | 3½ digit, 1999 count, 15 mm digits |
|---|---|
| DC volts | 200 mV / 2 V ±0.5%; 20 / 200 / 600 V ±0.8% |
| AC volts | 200 / 600 V ±1.5% |
| DC current | 200 µA / 2 mA / 20 mA ±2%; 10 A ±3% |
| Resistance | 200 Ω – 2 MΩ ±1% |
| hFE | 1–1000 |
| Size | 138 x 69 x 31 mm |
| Weight | 0.29 lb |
| SKU | 01DMMAS830 |

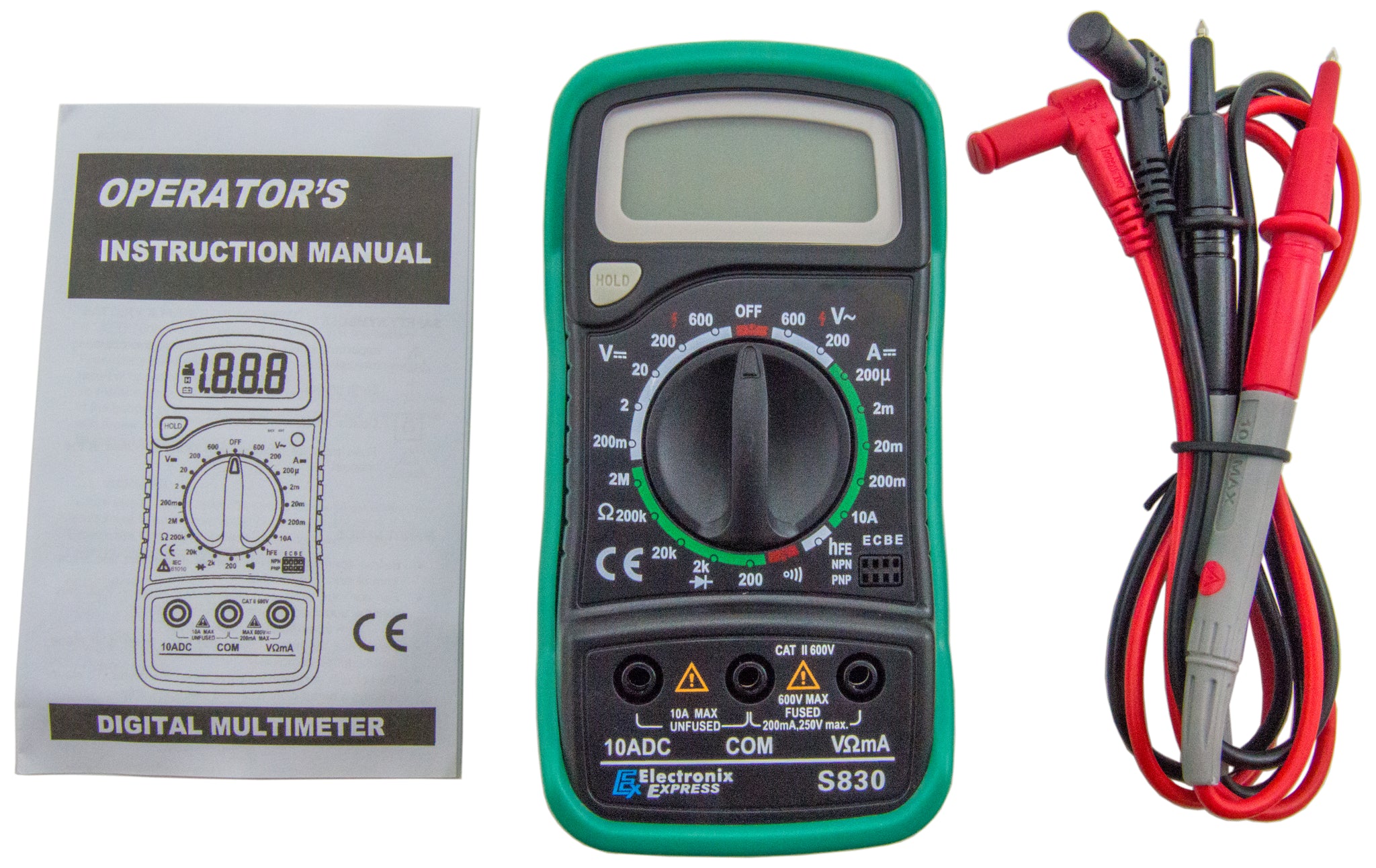

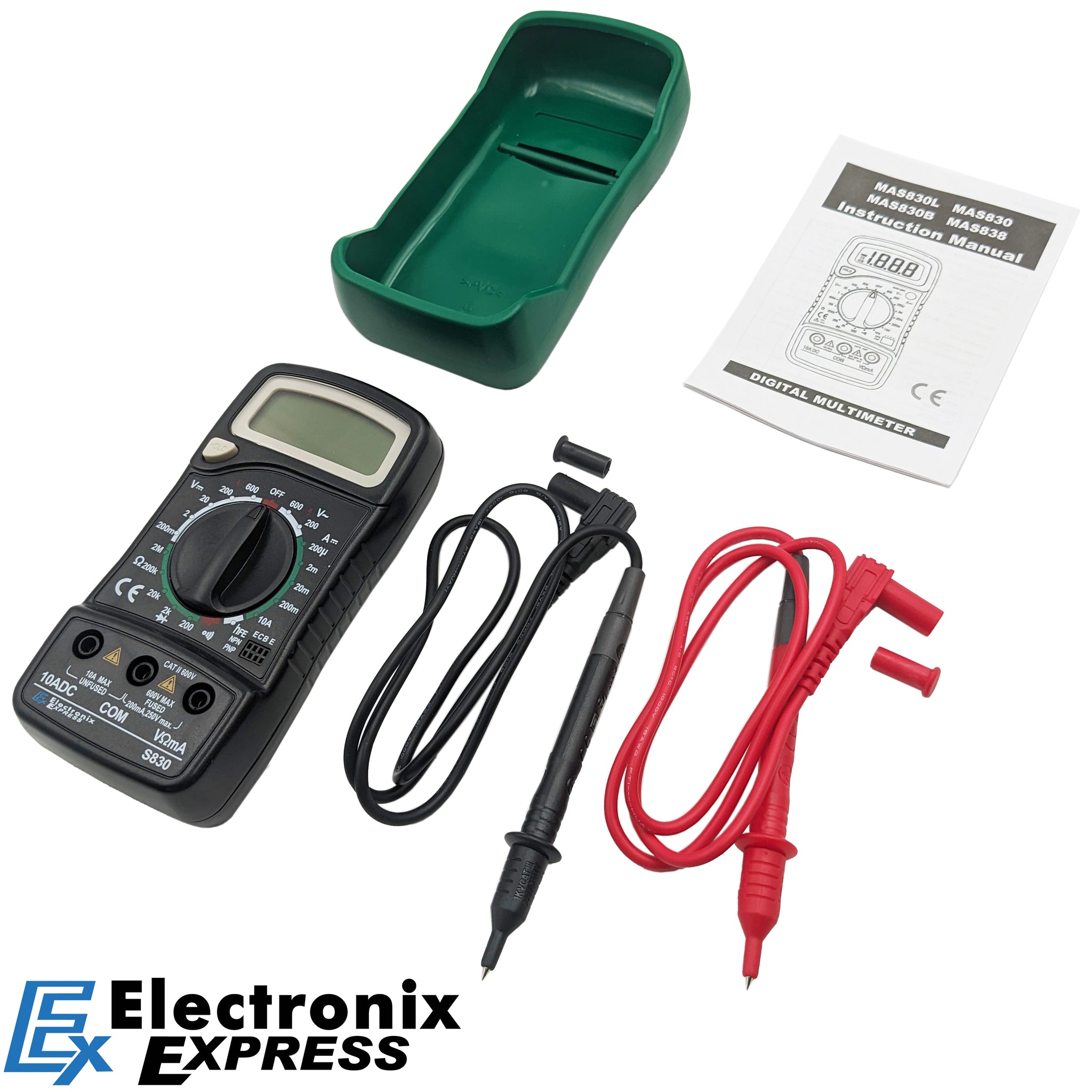

What's Included
- Digital multimeter
- Protective rubber boot with collapsible stand
Ideal For
Students and hobbyists needing a simple, inexpensive meter for basic electronics work.
Frequently Asked Questions
Does it measure AC current?
No, only DC current ranges are listed.
Are test leads included?
The listing does not mention test leads; the rubber boot is included.
