Large 2000 counts LCD display | Built-in non-contact voltage detector | Tests AC/DC voltage and current, resistance, capacitance | Inductance measurement up to 20H | Transistor (hFE) check, diode and continuity test
Mastech MS8260E Digital Multimeter LCR Meter AC DC Voltage Current Capacitance Inductance Tester with Non-contact Voltage Test
Mastech MS8260E Digital Multimeter LCR Meter AC DC Voltage Current Capacitance Inductance Tester with Non-contact Voltage Test
  • Load image into Gallery viewer, Large 2000 counts LCD display | Built-in non-contact voltage detector | Tests AC/DC voltage and current, resistance, capacitance | Inductance measurement up to 20H | Transistor (hFE) check, diode and continuity test
  • Load image into Gallery viewer, Mastech MS8260E Digital Multimeter LCR Meter AC DC Voltage Current Capacitance Inductance Tester with Non-contact Voltage Test
  • Load image into Gallery viewer, Mastech MS8260E Digital Multimeter LCR Meter AC DC Voltage Current Capacitance Inductance Tester with Non-contact Voltage Test

Mastech MS8260E Digital Multimeter LCR Meter AC DC Voltage Current Capacitance Inductance Tester with Non-contact Voltage Test

01DMMS8260E
Regular price
$40.00
Sale price
$40.00
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

  • Large 2000 counts LCD display
  • Built-in non-contact voltage detector
  • Tests AC/DC voltage and current, resistance, capacitance
  • Inductance measurement up to 20H
  • Transistor (hFE) check, diode and continuity test
Features:
Large 2000 counts LCD display
Built-in non-contact voltage detector
Tests AC/DC voltage and current, resistance, capacitance
Inductance measurement up to 20H
Transistor (hFE) check, diode and continuity test
Data hold and display back light
Safety rating up to CAT.IV 600V

Pls note that battery is not included in the package

Specification:
DC Voltage: 200mV/2V/20V/200V¡À(0.5%+1) 1000V¡À(0.8%+2)
AC Voltage: 2V/20V/200V¡À(0.8%+3) 750V¡À(1.2%+3)
DC Current: 200mA¡À(1.5%+1) 20A¡À(2.0%+5)
AC Current: 200mA¡À(1.8%+3) 20A¡À(3.0%+7)
Resistance: 200¦¸/2k¦¸/20k¦¸/200k¦¸/2M¦¸¡À0.8% 20M¦¸¡À(1.0%+2) 200M¦¸¡À(5.0%+10)
Capacitance: 20nF/200nF/2uF¡À(4.0%+3) 200uF¡À(5.0%+10)
Inductance: 20mH/200mH/2H/20H¡À(3.0%+5)
Audible continuity: < 30 ohm
hFE: 0 - 1,000
Diode test: 1 mA , 2.8V
Battery: 9Vx1, NEDA 1604/6F22 (NOT INCLUDE)

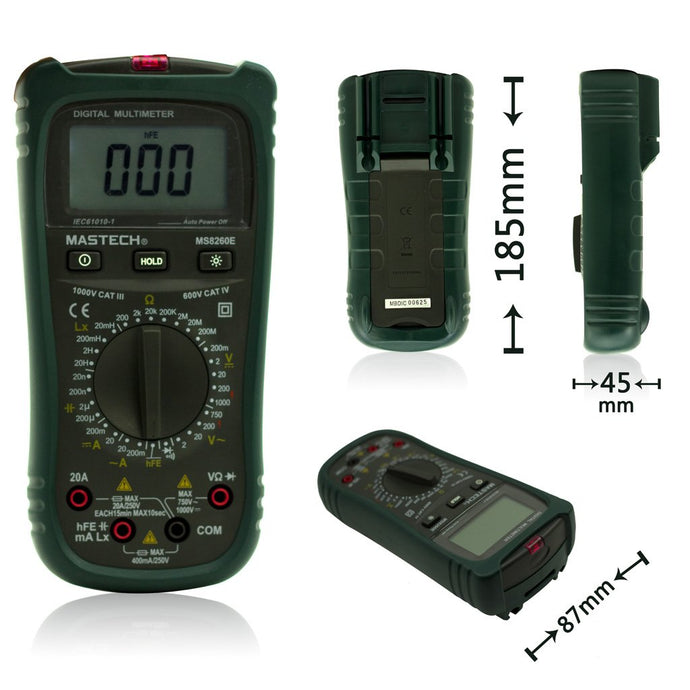

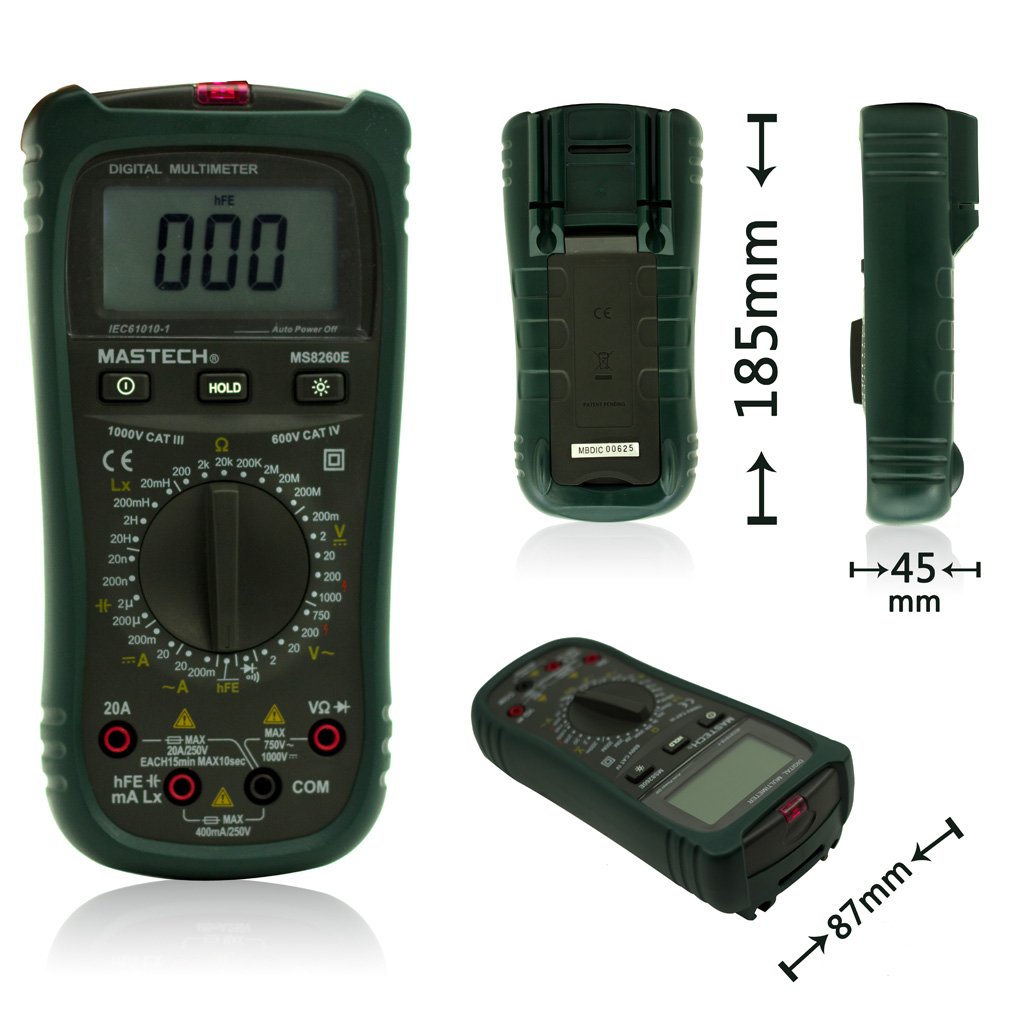

Size: 188 mm(L)x 92 mm(W)x 50mm(H)
Weight: 13 Oz

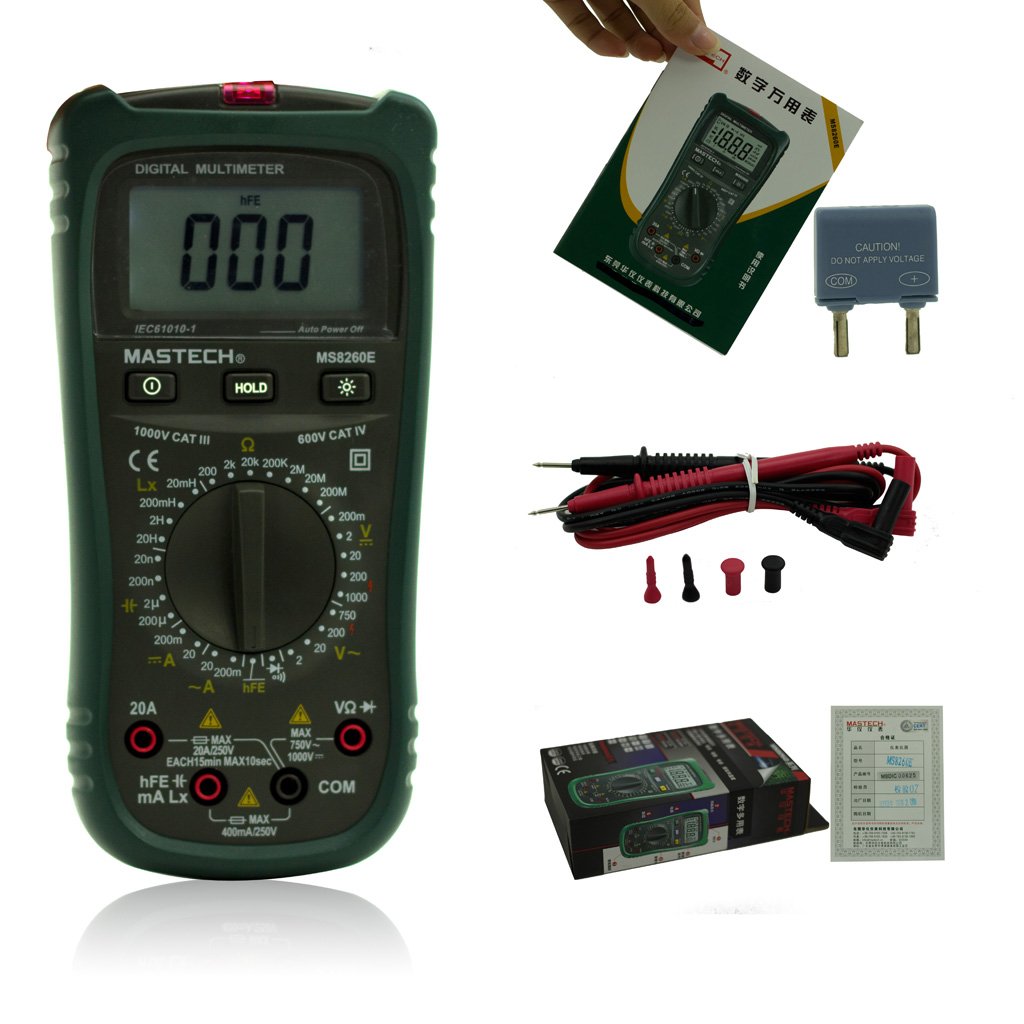

Package includes:

1 * MS8260E Digital multimeter (with test leads)
1 * MS3206 multi-functional socket
1 * User manual


Product Weight: 8.15 LB
