Power Supply with a 200 W single output, 1 mV/1 mA measurement resolution, monitoring, analysis, trigger I/O, and LAN interface | 2 Ranges; total power up to 200W | Low Ripple Noise <350 uVrms/2mVpp | Fast transient response time: <50 us | Up to 10A or 40 V

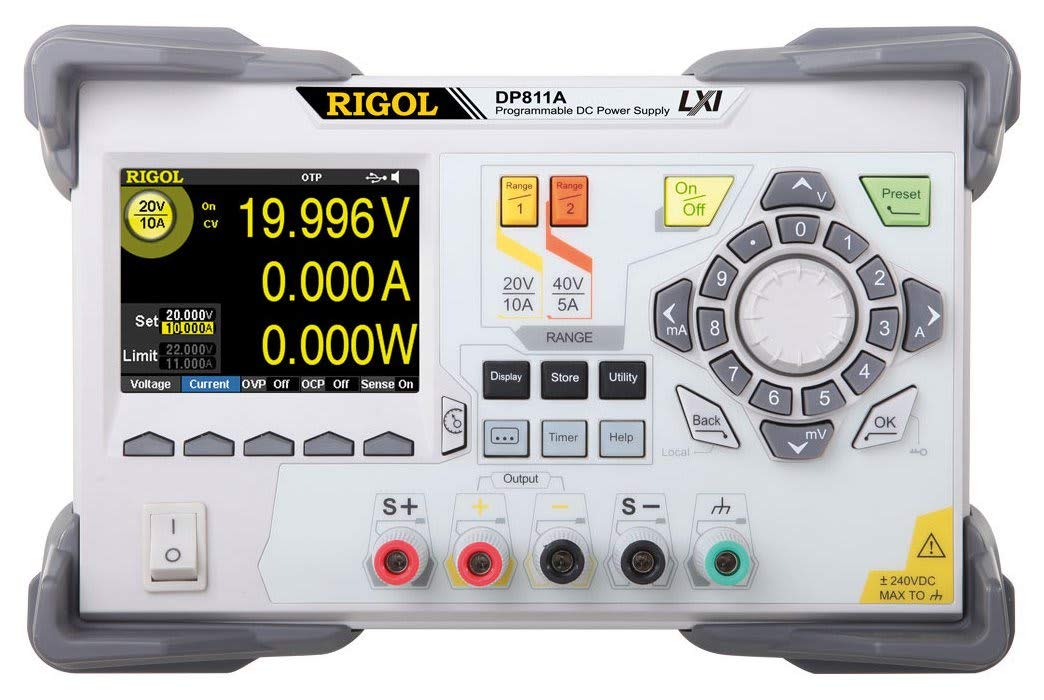

Rigol DP811A Dual Range 200 W Single Output Power Supply

01DP811A
Regular price
$910.00
Sale price
$910.00
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

  • Power Supply with a 200 W single output, 1 mV/1 mA measurement resolution, monitoring, analysis, trigger I/O, and LAN interface
  • 2 Ranges; total power up to 200W
  • Low Ripple Noise <350 uVrms/2mVpp
  • Fast transient response time: <50 us
  • Up to 10A or 40 V
Dual Range 200 W Single Output Power SupplyBuild Remote Communication You can build the remote communication between DP800 and PC over USB, LAN, RS232 or GPIB (option,can be extended via the USB-GPIB interface converter) interface.Remote Controls Methods User-defined Programming You can program and control the instrument using the SCPI (Standard Commands for ProgrammableInstruments) Send SCPI Commands via the PC Software You can control the power supply remotely by sending SCPI commands via the PC software (UltraSigma) provided by RIGOL.SCPI Command OverviewSCPI (Standard Commands for Programmable Instruments) is a standardized instrument programming language that is built upon the standard IEEE488.1 and IEEE 488.2 and conforms to various standards (such as the floating point operation rules in IEEE754 standard, ISO646 7-bit coded character for information interchange (equivalent to ASCII programming)). This section introduces the syntax, symbols, parameters and abbreviation rules of the SCPI commands.SCPI Status RegistersAll the SCPI instruments execute the status register operations in the same way. The status system records the various instrument states into three register sets: status byte register, standard event register and questionable status register sets. The status byte register records the advanced summary informationreported by other register sets. The SCPI status systems of the DP800 series multi-channel models.OVERVIEWThe Rigol DP811A is a very high quality programmable laboratory power supply with a switchable output (20 V/10 A or 40 V/5 A) and a maximum power output of 200 W.Like all Rigol devices, the power supply features a very well constructed and easy to use interface, which also offers comprehensive ease-of-use functions, such as programmable voltage curves. The menu has an intuitive structure.The Rigol DP811A features a relative large (8.9 cm / 3.5) and easy t

Product Dimensions (L x W x H): 556 x 381 x 310 MM

Product Weight: 0.44 LB
