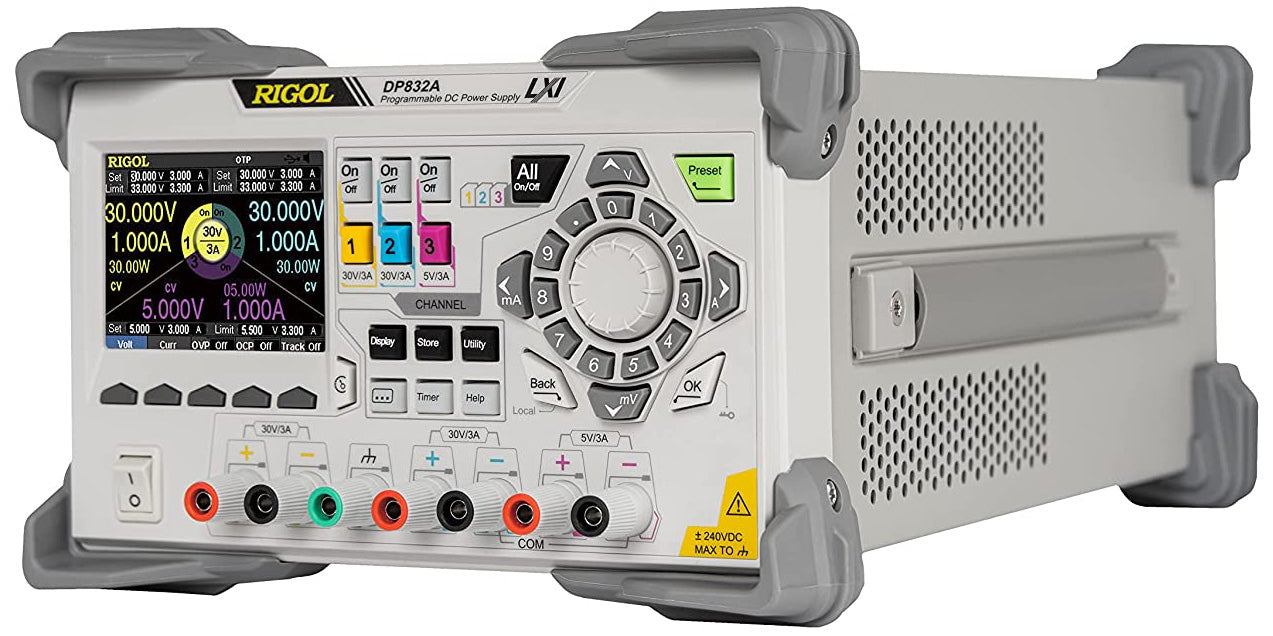

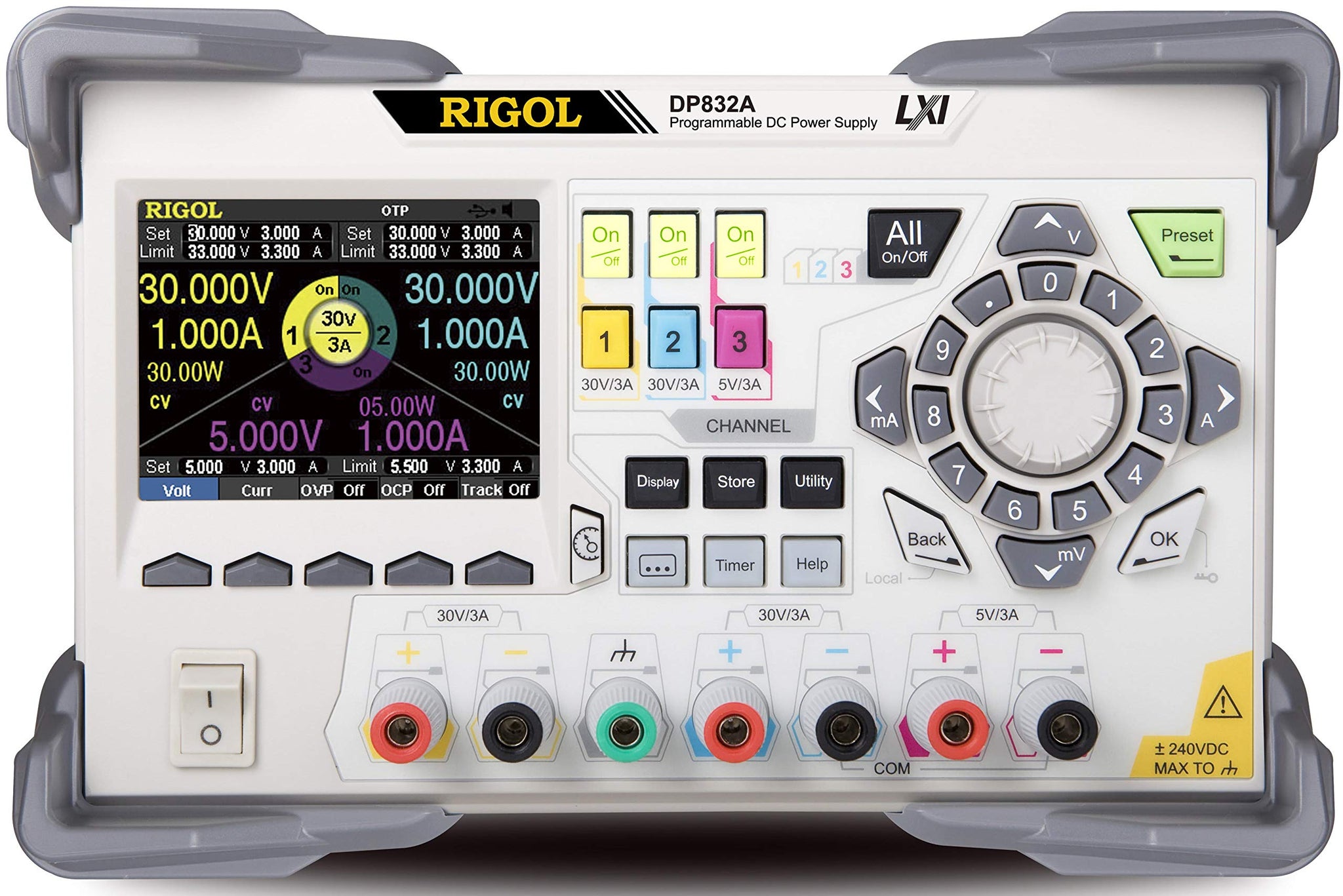

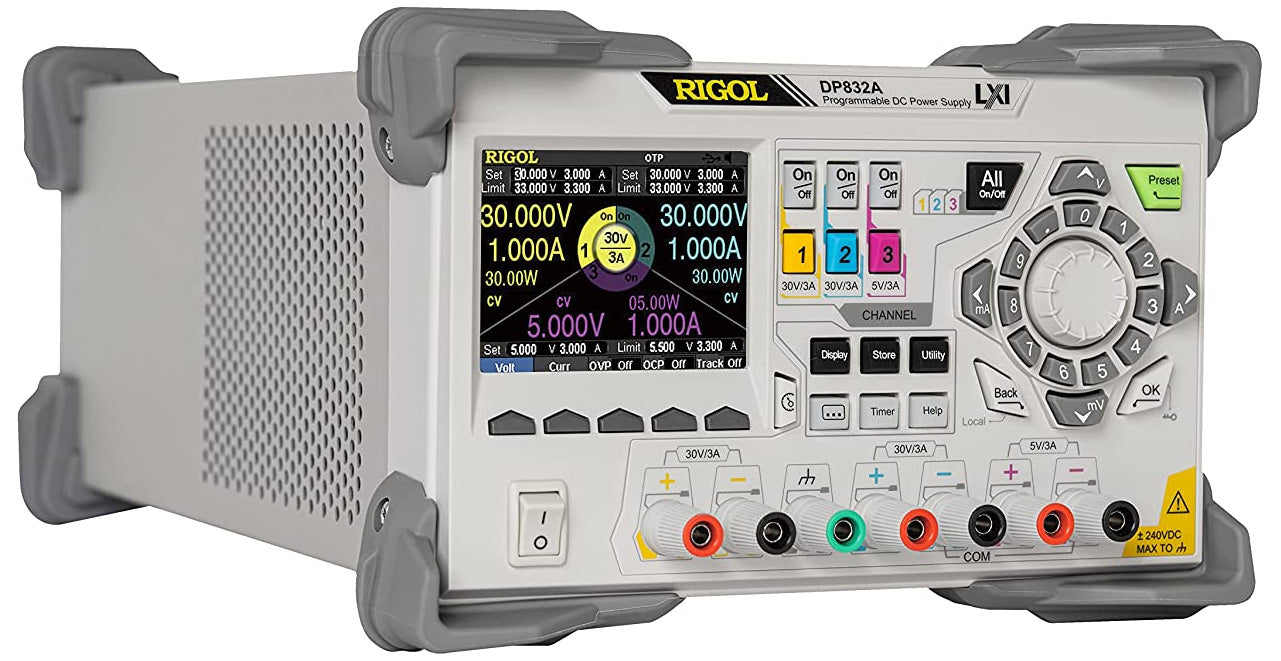

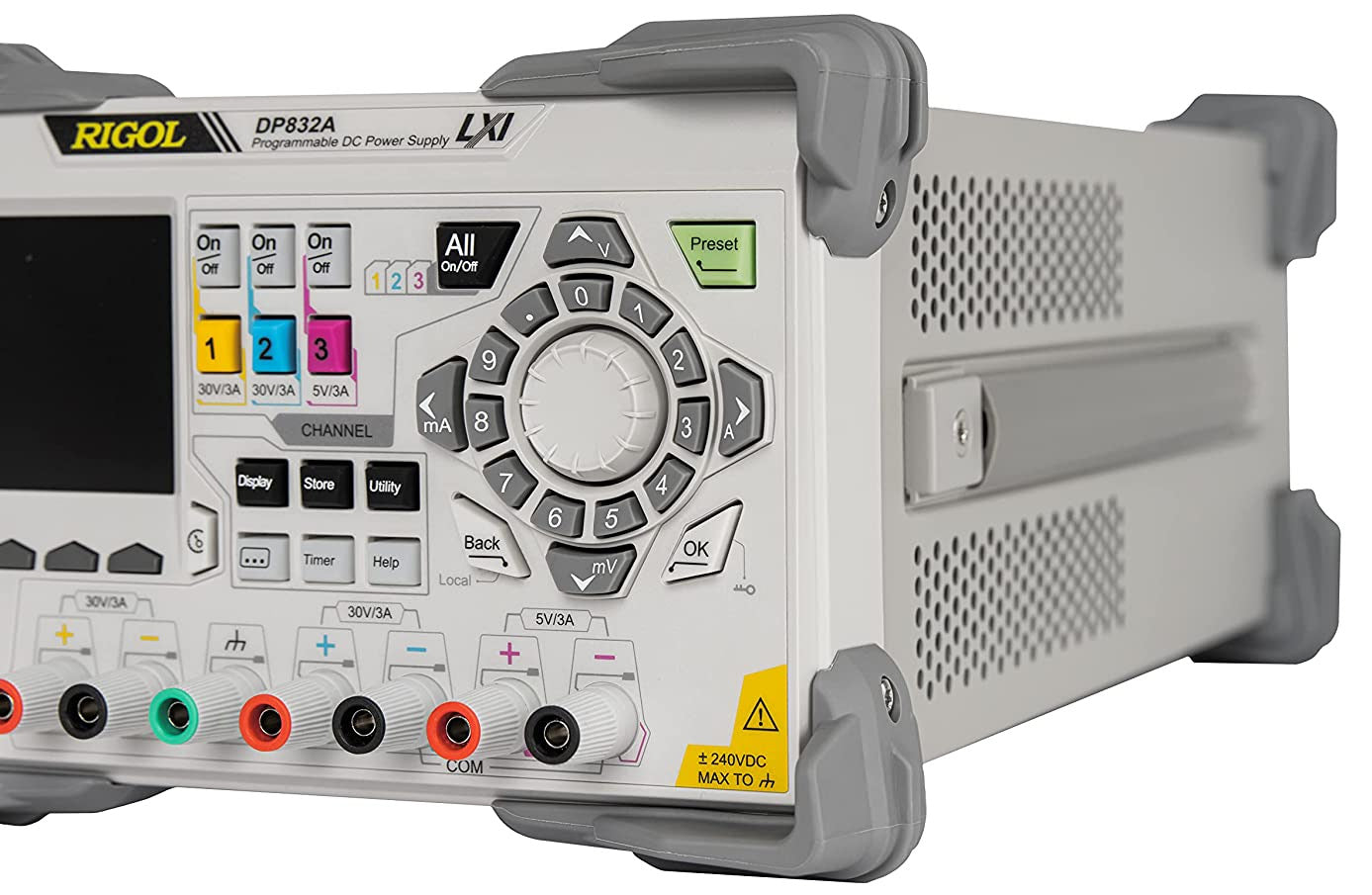

Rigol DP832A High Resolution Triple Output DC Power Supply, 195 Watt (Two 0-30V/0-3A, One 0-5V/0-3A)

01DP832A
Regular price
$800.03
Sale price
$800.03
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

  • 3 Outputs; total power up to 195W
  • This "A" model features additional wave tracking, timing, and analysis features for even more ways to use the supply
  • Low Ripple Noise <350 uVrms/2mVpp
  • Fast transient response time: <50 us
  • Channel isolation: CH1 || CH2,CH3
  • OVP/OCP/OTP protection functions
  • Built in V, A, W measurements and waveform display
  • Support for output Delay, Analysis, Monitor, and Preset functions
  • 3.5 inch TFT Display

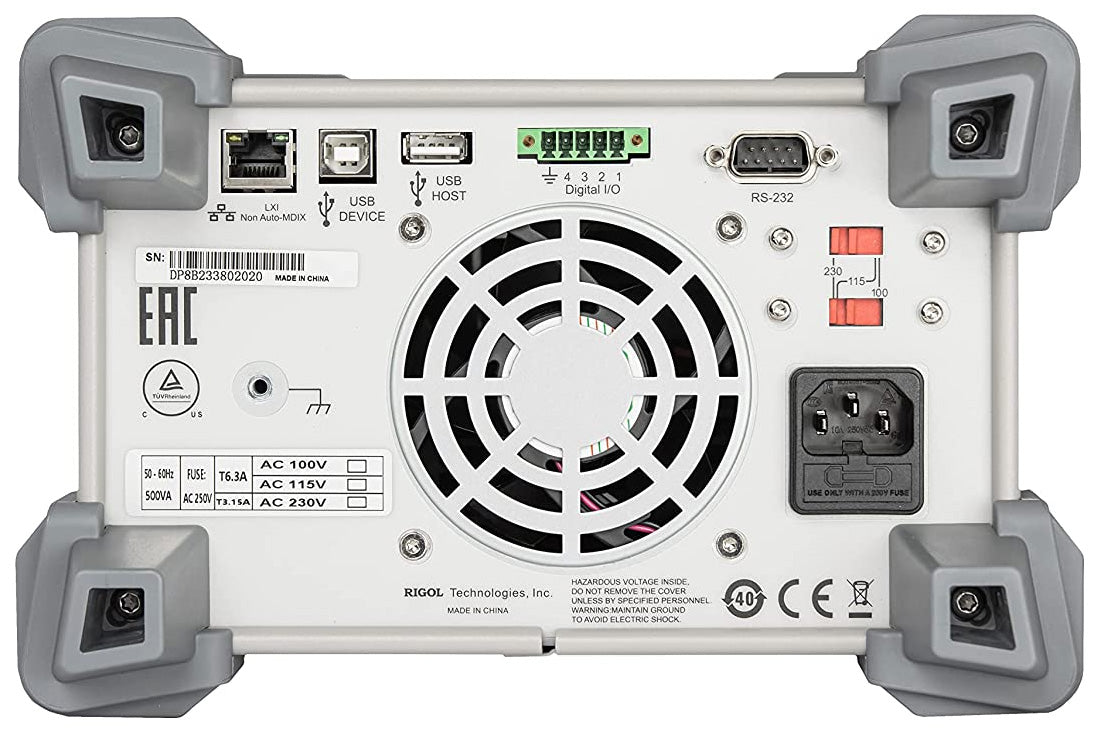

  • Connectivity including USB Host & Device, LAN, and Digital IO

The DP832A Power Supply combines the ability to source, analyze, and coordinate over time in a powerful new package. The DP832A features 3 outputs (Two 0-30V/0-3A, One 0-5V/0-3A) and up to 195 Watts in total. With some isolated channels users can reconfigure instruments into any number of systems or applications. Built in V, A, and W measurements make power monitoring easy, but the additional wave tracking, timing, and analysis features in this advanced "A" model means there are even more ways to use the supply. New digital triggering between instruments also makes it possible to reliably combine and connect supplies together. Intuitive to use for everything from education labs to the R & D bench, the DP832A power supply provides incredible value for any application.
