- Analog channel bandwidth: 50 MHz
- 4 analog channels
- Real-time sample rate up to 1 GSa/s
- 12 Mpts Memory depth (upgradeable to 24 Mpts with optional software key)
- Up to 30,000 wfms/s waveform capture rate
- Up to 60,000 frames hardware real-time waveform recording and playback functions
- Innovative "UltraVision" technology
- Various trigger and bus decoding functions
- Low noise floor, vertical scale range: 1 mV/div to 10 V/div
- Various interfaces: USB Host&Device, LAN (LXI), AUX
- Compact size, light weight, easy to use
- 7 inch WVGA (800x480) TFT LCD, intensity graded color display

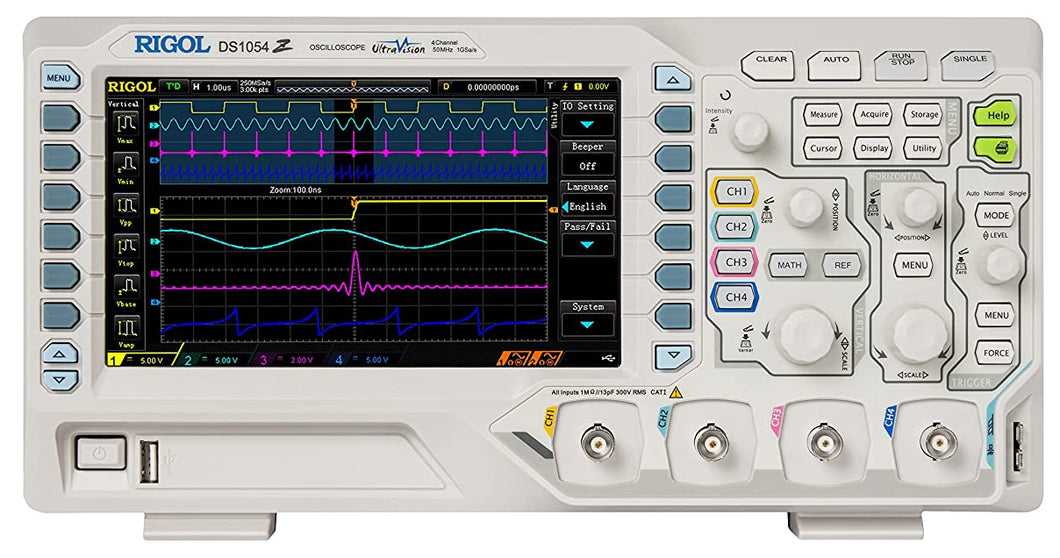

The DS1054Z is a 4-channel digital oscilloscope with 50MHz bandwidth and sample rates up to 1GSa /s. All the analysis, decoding, deep memory, and advanced triggering capabilities are now included in this powerful scope at an exceptional price.
