Rigol DS1054Z Digital Oscilloscope (50 Mhz, 4 Channel, 1GS/S Sampling Rate) & Test Lead Kit

01DS1054ZTLK1
Regular price
$399.99
Sale price
$399.99
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

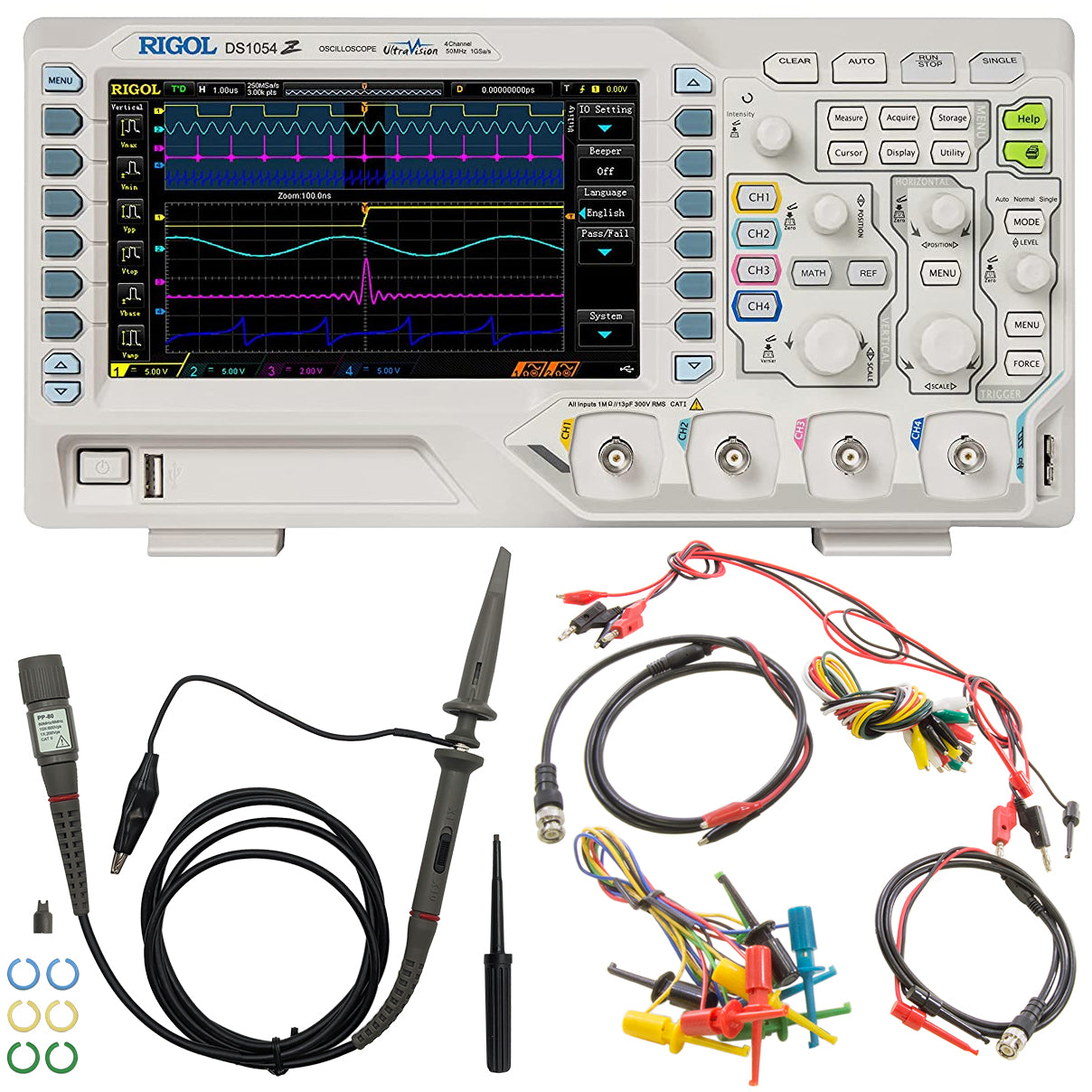

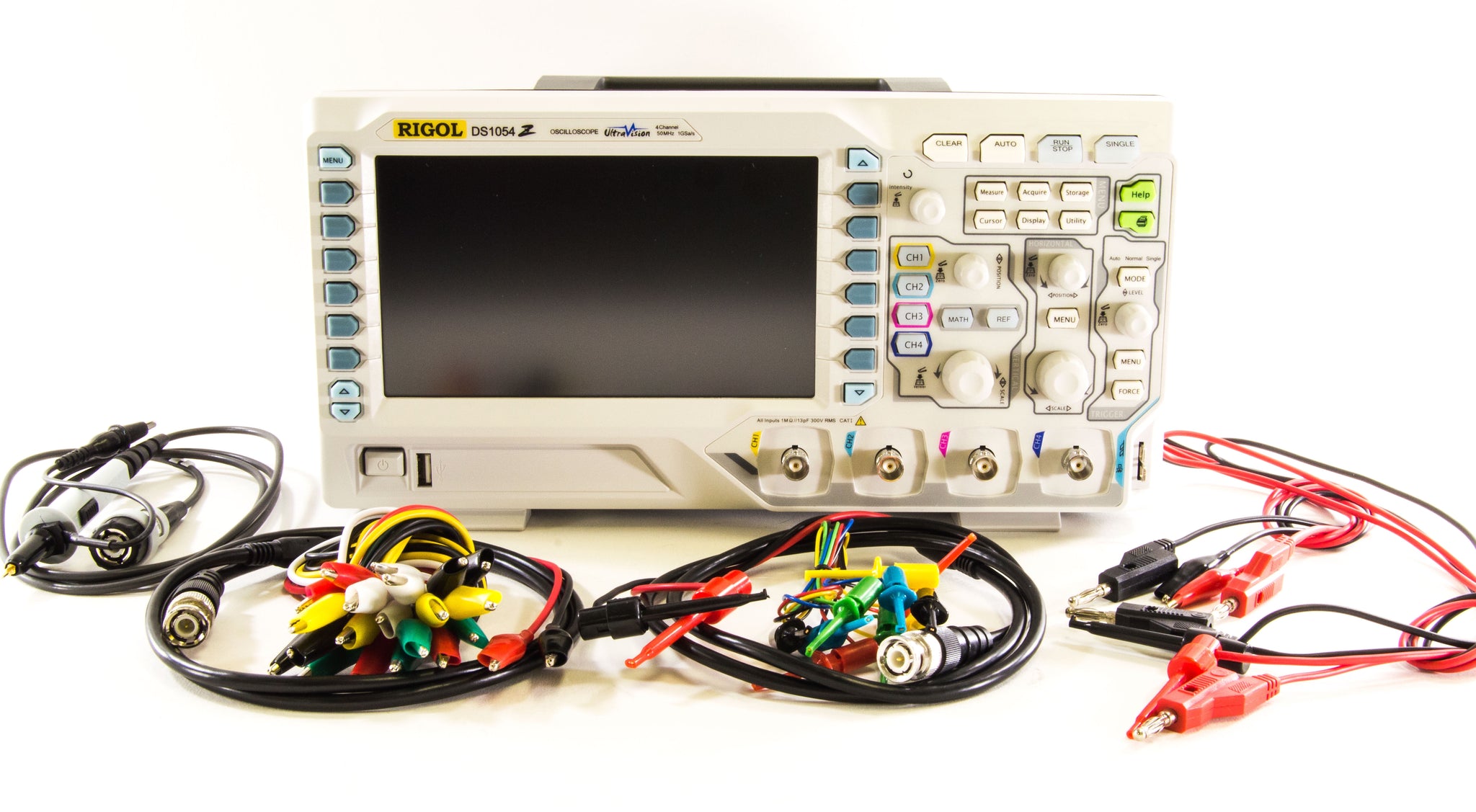

  • Combo pack includes Rigol DS1054Z Digital Oscilloscope along with the Electronix Express 7-Piece Test Lead Kit
  • Rigol DS1054Z Digital Oscilloscope:
    • Analog channel bandwidth: 50 MHz
    • 4 analog channels
    • Real-time sample rate up to 1 GSa/s
    • 12 Mpts Memory depth (upgradeable to 24 Mpts with optional software key)
    • Up to 30,000 wfms/s waveform capture rate
    • Up to 60,000 frames hardware real-time waveform recording and playback functions
    • Innovative "UltraVision" technology
    • Various trigger and bus decoding functions
    • Low noise floor, vertical scale range: 1 mV/div to 10 V/div
    • Various interfaces: USB Host & Device, LAN (LXI), AUX
    • Compact size, light weight, easy to use
    • 7 inch WVGA (800x480) TFT LCD, intensity graded color display

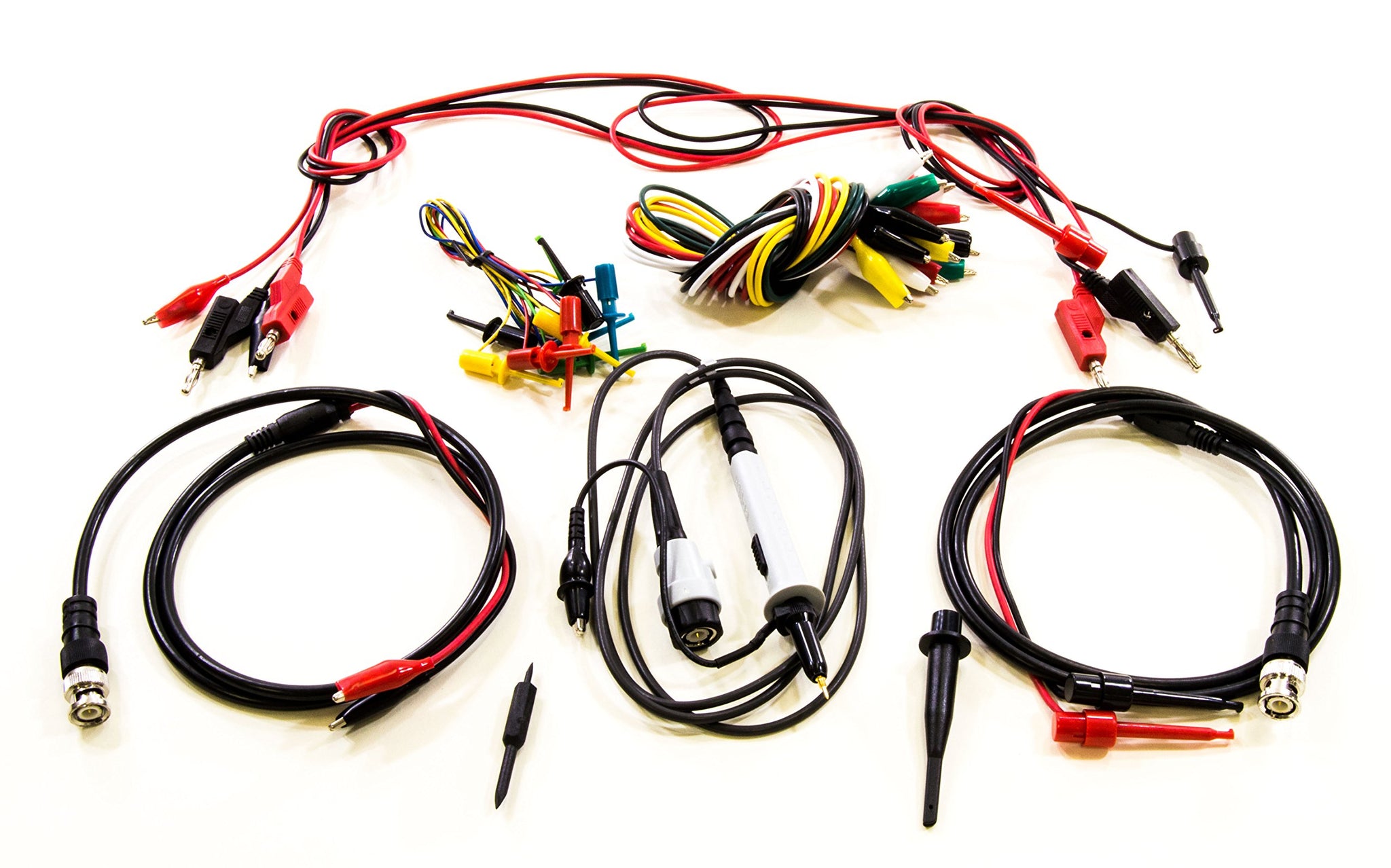

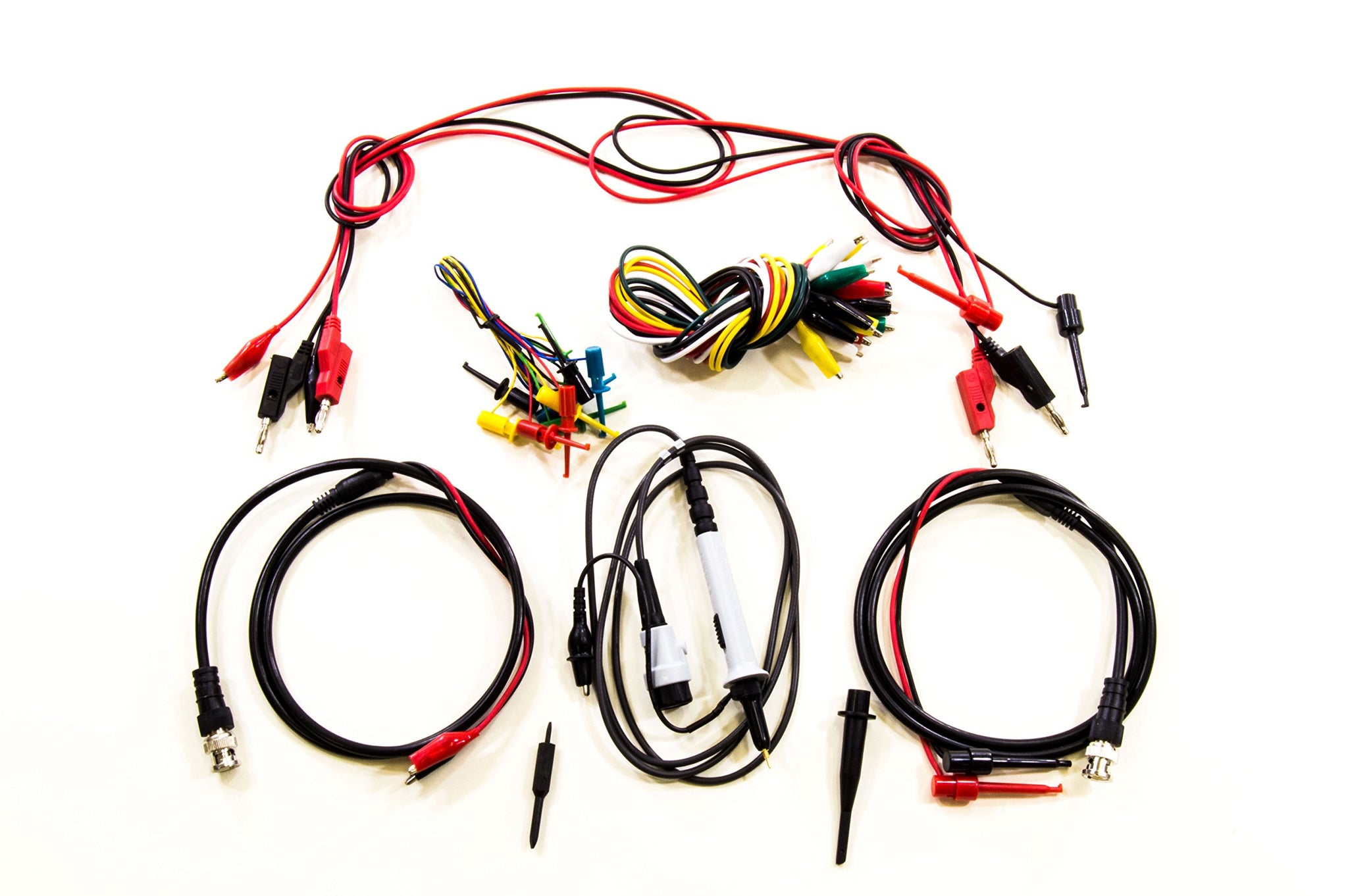

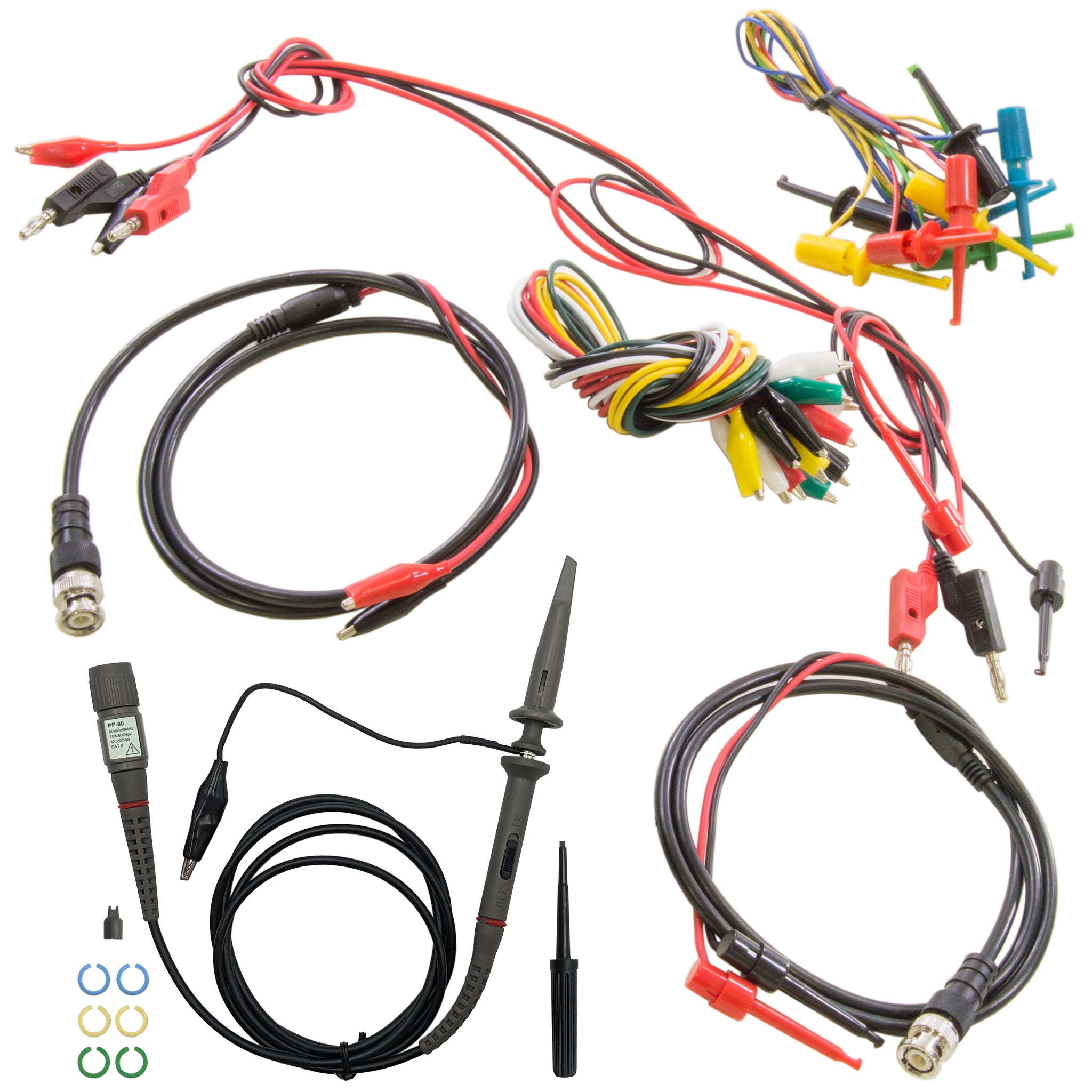

  • 7-Piece Test Lead Kit - Includes:
    • 05SPAK220 - 60MHz Oscilloscope Probe with selectable X1 (Bandwidth DC to 6MHz), X10 (Bandwidth DC to 60MHz) switch
    • 05ALS1 - 10 Piece Set of Alligator Test Leads, 20" Long, 5 Colors (Red, Black, Yellow, White, Green)
    • 05ALS3 - Banana to Alligator Lead Set, 36" Long (one each of red and black)
    • 05ALS5 - Banana to IC Hook Lead Set, 36" Long (one each of red and black
    • 05ALS7 - 5 Piece Minigrabber to Minigrabber IC Hook Test Lead Set (Red, Black, Blue, Green, and Yellow)
    • 05SPAT1 - BNC to IC Test Hook 36" long coax & 8" long connecting (Red & Black) wires
    • 05SPAT2 - BNC to Alligators - 36" long coax & 8" long connecting (Red & Black) wires

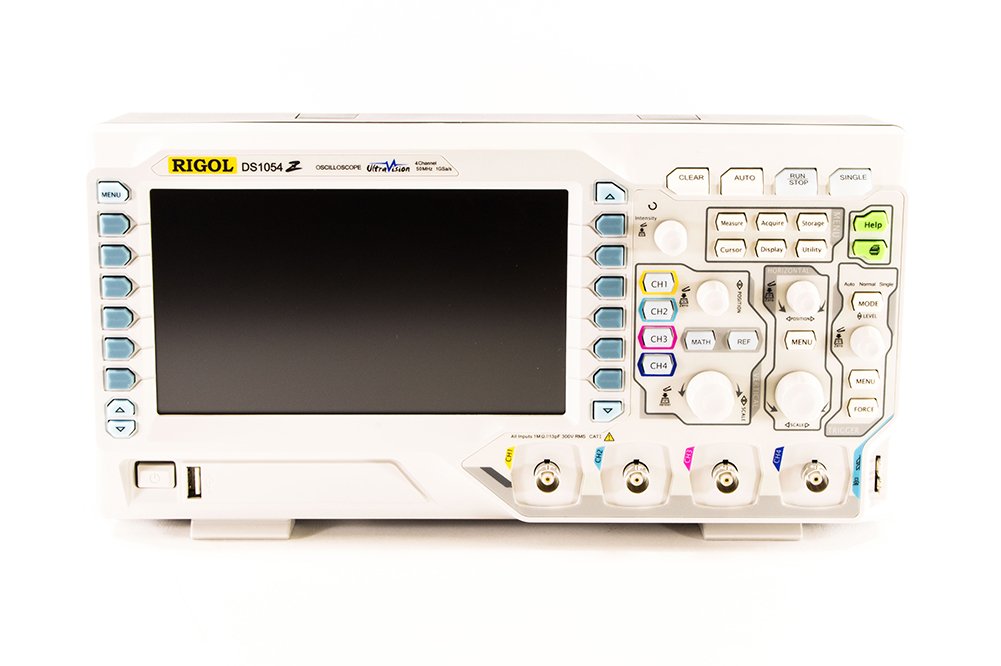

The DS1054Z is a 4-channel digital oscilloscope with 50MHz bandwidth and sample rates up to 1GSa /s. All the analysis, decoding, deep memory, and advanced triggering capabilities are now included in this powerful scope at an exceptional price.

05SPAK220 Oscilloscope Probe Specifications:
Input Capacity:
X1: 85pF-115pF
X10: 18.5pF-22.5pF

Oscilloscope Input Capacity: 15pF-40pF

Input Resistance:
X1: 1MΩ ±2%
X10: 10MΩ ±2%

Bandwidth:
X1: DC 6MHz
X10: DC 60MHz

Max Input Voltage:
X1: <200V DC +Peak AC
X10: <600V DC +Peak AC
