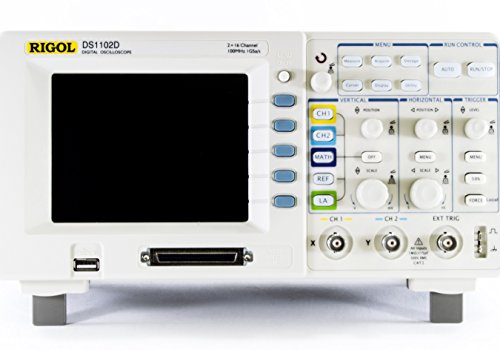

- A true mixed signal oscilloscope with 16 channel Logic Analyzer
- 1 GSa/s maximum Real-time Sample Rate and 1 Mpts of memory depth
- Bandwidth - 100MHz
- 1 GSa/s maximum real-time sample rate, 25 GSa/s maximum equivalent-time sample rate
- 1Mpts long Memory Depth
A true mixed signal oscilloscope with 16 channel Logic Analyzer
Extensive set of trigger modes including: Edge, Video, Pulse Width, Slope, Alternate 5. 64 k TFT Color LCD, bright and vivid waveform display
Adjustable bigger sensitivity: Effactively filter noise from bigger signal and avoid false trigger
20 automatic measurements
Cursor measurements: Manual, Track and Auto Measure modes
10 waveforms, 10 setups, BMP and CSV storage
Special digital filter and waveform recorder
Built-in hardware frequency counter
Standard configuration: PassIFail test, effectively avoid electromagnetic interference by using photoelectricity-isolation
Multi-language user interface, built-in help system
Technical Specifications
Bandwidth: 100 MHz
Channels: Dual Channels + External Trigger
Real-time Sample Rate: 1GS/s
Equivalent Sample Rate: 25 GSa/s
Memory Depth: Channel Mode - Sample Rate; Single Channel 1 GS/s; Single Channel 500MS/s Or lower; Dual Channel 500MS/s Or lower
Rise Time: 3.5ns
Time Base Range: 2 ns/div to 50 s/div
Trigger Modes: Edge, Video, Pulse Width, Slope, Alternative
Input Impedance: 1 M? || 15 pF
Vertical Sensitivity: 2 mV/div to 10 V/div
Vertical Resolution: 8 bits
Input Coupling: DC, AC, Ground
Maximum Input Voltage: 400 V (DC + AC peak)
Roll Range: 500 ms/div to 50 s/div
Cursor Measurements: Manual, Track and Auto Measure modes
Math: Add, Subtract, Multiply, FFT
Storage: USB Device, USB Host, RS-232, P/F Out (Isolated)
Display: 5.6"TFT (64K, Color LCD), 320 x 234
Power: 100 - 240 V / 50 VA Max
Weight: 2.4 kg
Package Contents

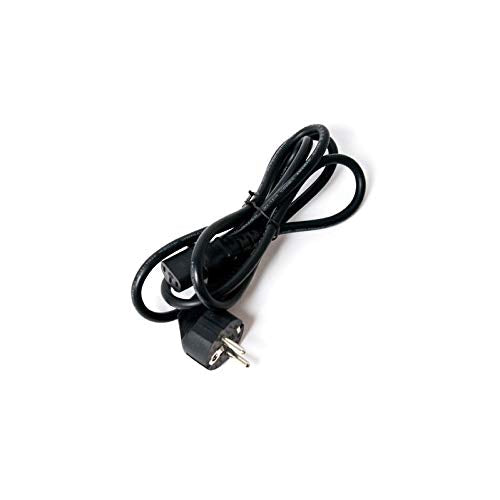

Power Cord - 1 pc.
Probes - 2 pcs.
Logic Analyzer Module - 1 pc.
USB Cable - 1 pc.
Product Dimensions (L x W x H): 17 x 10.75 x 10 inches
Product Weight: 2.4 LB
