100 MHz Digital Oscilloscope with 4 channels, 4GS/s, 140Mpoint memory
100 MHz bandwidth
4 GSa/s sample rate
4 Analog channels available
140 million memory points, standard

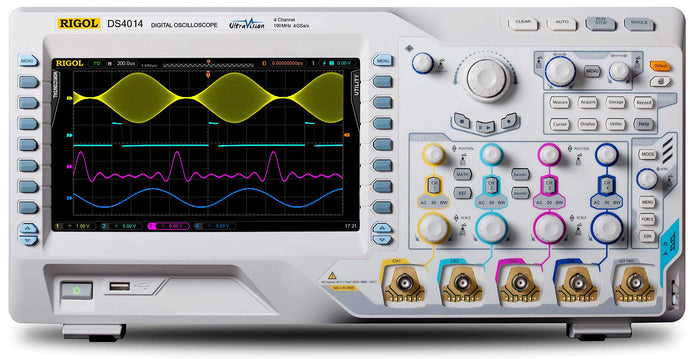

100 MHz Digital Oscilloscope with 4 channels100 MHz Digital Oscilloscope with 4 channelsxThe Rigol DS4014 is a versatile, high performance digital oscilloscope. It offers a variety of trigger functions and auto measurements, record / playback / analysis functions, selectable 50? input impedance and VGA output all as standard. Other standard features include a waveform capture rate up to 110,000wfms/s and a large 9 WVGA display with 256 intensity level grading. The DS4014 is a flexible and powerful instrument at a very competitive price.DS4000 Series Digital OscilloscopesThe DS4000 series digital oscilloscope is a versatile, high performance oscilloscope that incorporates many of today's most advanced technologies and processes. Featuring bandwidths between 100MHz and 500MHz, sample rates up to 4GSa/s and up to 4 analog channels, the DS4000 is ideal for a wide variety of markets including communications, defense, aerospace, industrial electronics, R&D and educational fields.MSO4000/DS4000 is a multifunctional and high-performance digital oscilloscope developed using RIGOL Ultra Vision chipset. MSO4000 series is a mixed-signal oscilloscope which is optimized for the debugging in embedded design and test areas that require simultaneous measurement of both analog and digital signals. MSO4000 provides superb specifications, convenient functions, and easy-to-use design which help users fulfill their tasks (such as measurement and remote control) more quickly.Front Panel OverviewFront Panel Viewx No. Description No. Description (1) Menu (11) Logic Analyzer (2) LCD (12) Record (3) Multi-Function Knob (13) Power Key (4) Navigation Knob (14) USB Host (5) HORIZONTAL (15) Digital Channel Input (MSO only)
Product Dimensions (L x W x H): 572 x 368 x 235 MM
