600 MHz Digital Oscilloscope with 2 channels, 5 GSa/sec sampling, up to 120,000 waveforms per second, and dynamic persistence mode | Up to 1 GHz BW with 5 GSa/s sample rate | Standard 140 Mpts deep memory | Up to 180,000 waveforms per second capture rate | Up to 200,000 frames for waveform record and replay

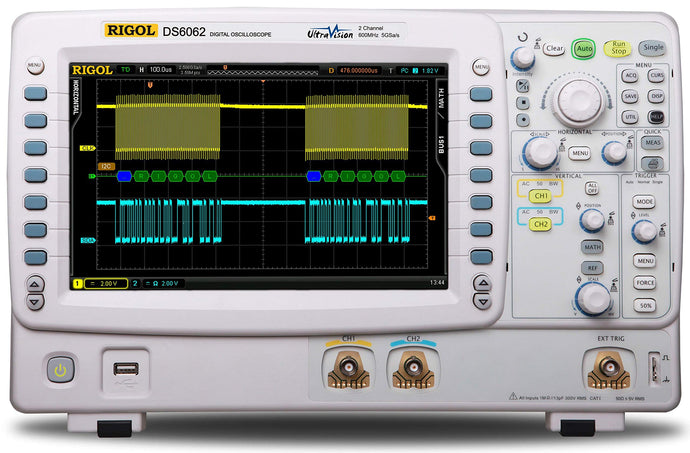

Rigol DS6062 600 MHz 2 Channel Digital Oscilloscope

01DS6062
Regular price
$5,880.00
Sale price
$5,880.00
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

  • 600 MHz Digital Oscilloscope with 2 channels, 5 GSa/sec sampling, up to 120,000 waveforms per second, and dynamic persistence mode
  • Up to 1 GHz BW with 5 GSa/s sample rate
  • Standard 140 Mpts deep memory
  • Up to 180,000 waveforms per second capture rate
  • Up to 200,000 frames for waveform record and replay
600 MHz 2 Channel Digital OscilloscopeRigol DS6062 600 MHz 2 Channel Digital OscilloscopexFeatures 600MHz bandwidth, 2 channels Maximum sample rate 5GSa/s Vertical scale 2mV/div to 5V/div Selectable 50? input impedance Memory depth up to 140Mpts per channel Innovative UltraVision technology 180,000wfms/s waveform capture rate Up to 200,000 frames real-time waveform record, replay & analysis functions Automatic measurements with statisticsDS6000 Series Digital OscilloscopesThe Rigol DS6062 digital oscilloscope has a 600MHz bandwidth and optional 1.5GHz bandwidth differential and single-ended active probes (model RP7150). These new products are designed and produced by Rigol with many key technological breakthroughs designed to help engineers achieve more thorough research, development and failure analysis applications. Detecting signal and device characteristics is now easier than ever with the most advanced digital oscilloscope platform in its class.Rigol DS6000-series platforms are aimed at communications, semiconductor, computing, aerospace, defence, instrumentation, research/education, industrial electronics, consumer electronics and automotive industries. The Rigol DS6000 is the oscilloscope of choice for innovative technology teams with industry leading specifications, broad analysis capabilities and the most powerful trigger functions and display capabilities.Rigol DS6000 Digital Oscilloscope Attractive ProfilexRigol DS6000 Digital Oscilloscope Rear PanelxProduct Dimensions: Width x Height x Depth = 399mm x 255.3mm x 123.8mm Weight: 5.35 kg Deeper Memory Depth(Std.140Mpts) Higher Waveform capture rate (Up to 180,000 wfms/s) Real Time waveform Record,Replay & Analysis (Up to 200,000 frames) Multi-level intensity grading display

Product Dimensions (L x W x H): 551 x x 381

Product Weight: 1.62 LB
