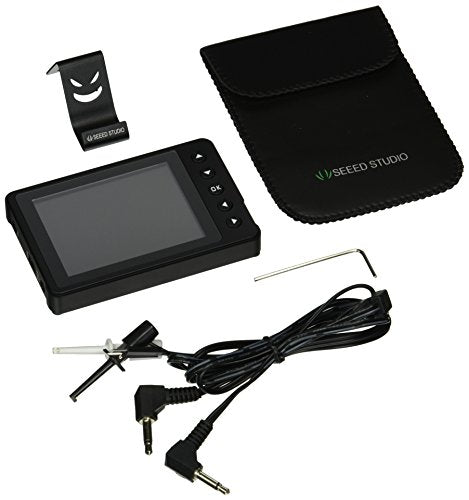

The DSO Nano V3 is a pocket-sized, 32-bit handheld digital storage oscilloscope with a 200 kHz analog bandwidth and a 1 MSa/s sample rate. It has a 2.8-inch 320 x 240 color TFT display, built-in waveform storage and playback, a signal generator, and a USB port for data and recharging. It is a handy tool for audio, sensor and low-frequency hobby work.
Key Features
- 0 to 200 kHz analog bandwidth, 1 MSa/s sampling
- 2.8" 320 x 240 color TFT LCD
- Built-in waveform storage and playback
- Built-in signal generator
- USB port with recharging function
- 32-bit processor in a pocket-sized case
Specifications
| Model | DSO Nano V3 |
|---|---|
| Type | Handheld digital storage oscilloscope |
| Bandwidth | 0 to 200 kHz |
| Sample rate | 1 MSa/s |
| Display | 2.8" color TFT LCD, 320 x 240 |
| Connectivity | USB (data and charging) |
| SKU | 01DSONANO |
What's Included
- Oscilloscope (see manufacturer for standard accessories)
Ideal For
Hobbyists and students checking audio, sensor and other low-frequency signals on the go.
Frequently Asked Questions
What can I measure with 200 kHz bandwidth?
Audio signals, slow PWM, sensor outputs and power supply ripple. It is too slow for fast digital buses or high-frequency microcontroller clocks.
Is it rechargeable?
Yes. The listing says it recharges through its USB port.
