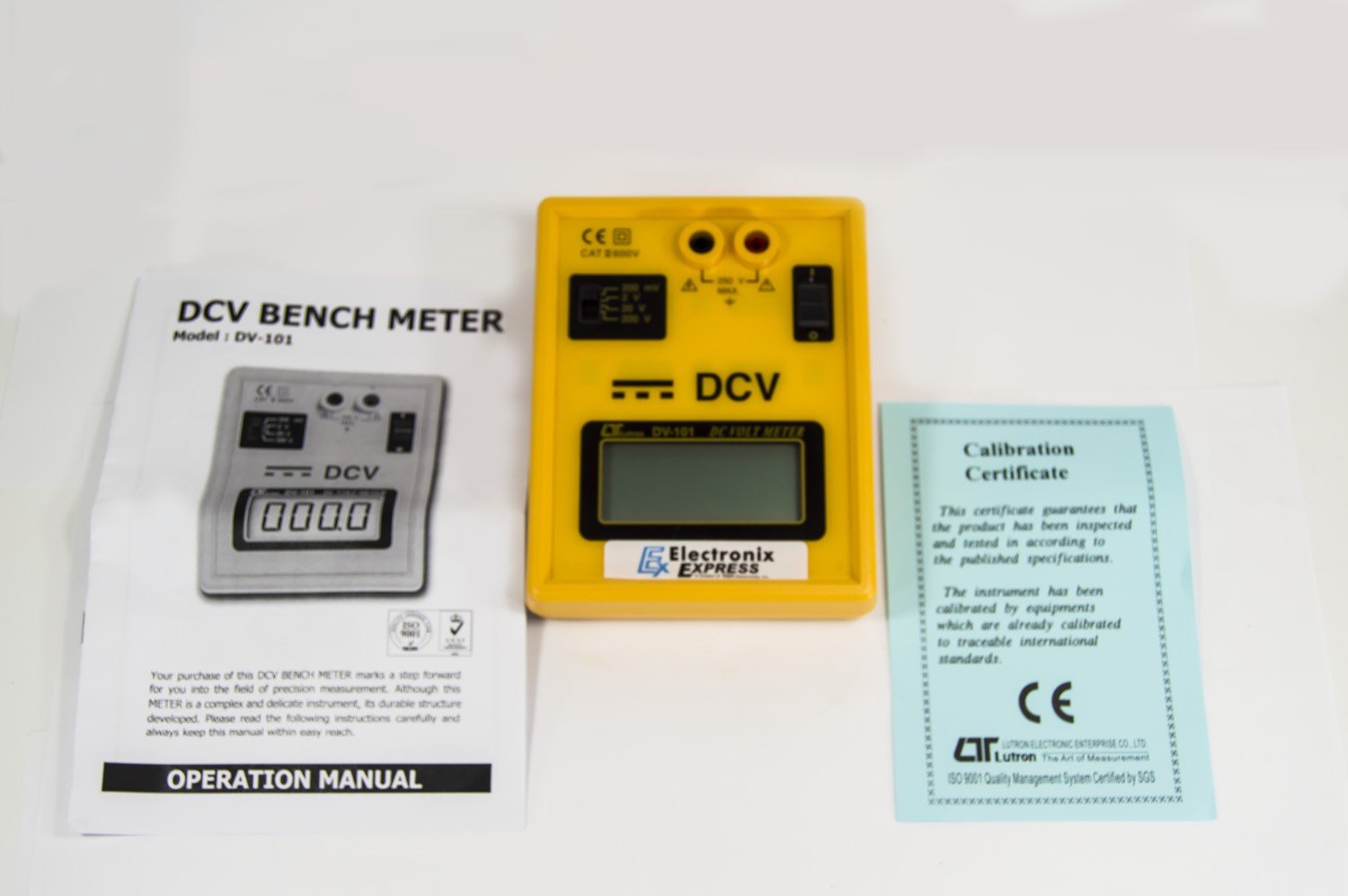

LCD display, 18mm digit height | 9V battery operation | CATII 600V rating Approx. 0.4 sec. sampling Instruction manual | On/off switch | Automatic zero adjust

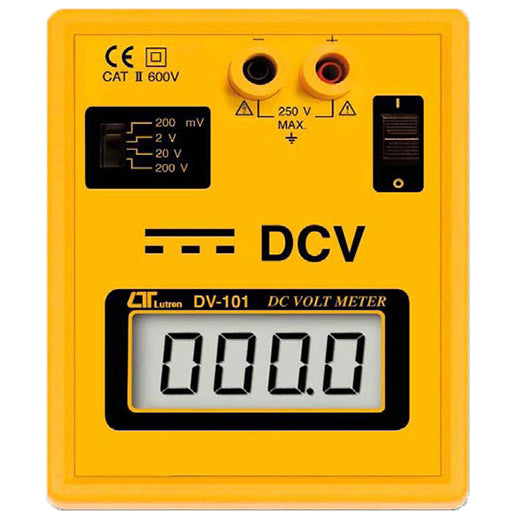

DC Voltmeter with LCD Display, 4 Ranges: 200 mV, 2 V, 20 V, 200 V
  • Load image into Gallery viewer, LCD display, 18mm digit height | 9V battery operation | CATII 600V rating Approx. 0.4 sec. sampling Instruction manual | On/off switch | Automatic zero adjust
  • Load image into Gallery viewer, DC Voltmeter with LCD Display, 4 Ranges: 200 mV, 2 V, 20 V, 200 V

DC Voltmeter with LCD Display, 4 Ranges: 200 mV, 2 V, 20 V, 200 V

01DV101
Regular price
$69.99
Sale price
$69.99
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

  • Easy to operate DCV bench meter, compact size (5.8" x 2.6" x 4.0")
  • 4 ranges:
    • 200 mV x 0.1 mV
    • 2 V x 0.001 V
    • 20 V x 0.01 V
    • 200 V x 0.1 V
  • Large LCD display, 0.7-inch (18mm) digit height
  • Approx. 0.4 sec. sampling time
  • Automatic zero adjust
  • Features high input impedance, overload protection for each range, and over-input indicator
  • Standard banana terminals (red and black)
  • On/off switch
  • 9V battery operation
  • Meets IEC1010 CATII 600V safety requirements
  • Applications include education, industrial, quality control, research and development, laboratory

General specifications:
Measurement: DC voltage
Display: LCD display, 18 mm ( 0.7" ) digit height
Range / Resolution:
200 mV x 0.1 mV
2 V x 0.001 V
20 V x 0.01 V
200 V x 0.1 V
Accuracy:
± ( 0.5%+1d ), reading @ 200 mV range
± ( 0.8%+1d ), reading @ 2V/20 V/200 V range
Input Impedance: 10M ohm
Polarity: Automatic Switching, '_' symbol indicates negative polarity
Zero Adjustment: Automatic
Over-input: display shows '1' or '-1'
Safety: Meets IEC1010 CATII 600V
Sampling Time: Approx. 0.4 second
Operating Temperature: 32 to 120℉ (0 to 50℃)
Operating Humidity: Less than 80% RH
Power Supply: 9V battery
Power Consumption: Approx. 1.9 mA
Dimensions: 5.8 x 2.6 x 4.0 inch
Weight: 0.68 LB (including battery)
Input terminal: Standard banana terminals (Red & Black)
Accessories: Instruction Manual
