25MHz Function Arbitrary Generator Counter with USB Interface, Model DDS-3X25

•Output Freq: 1Hz – 25MHz
•Output sine, square, ramp, AMFM, gauss noise, white noise or arbitrary wave
•Simulation of Real Word Signals or sensors
•USB interface, plug and play
•Max Amp ±3.5V max.
•Frequency Counter: DC to 50MHz

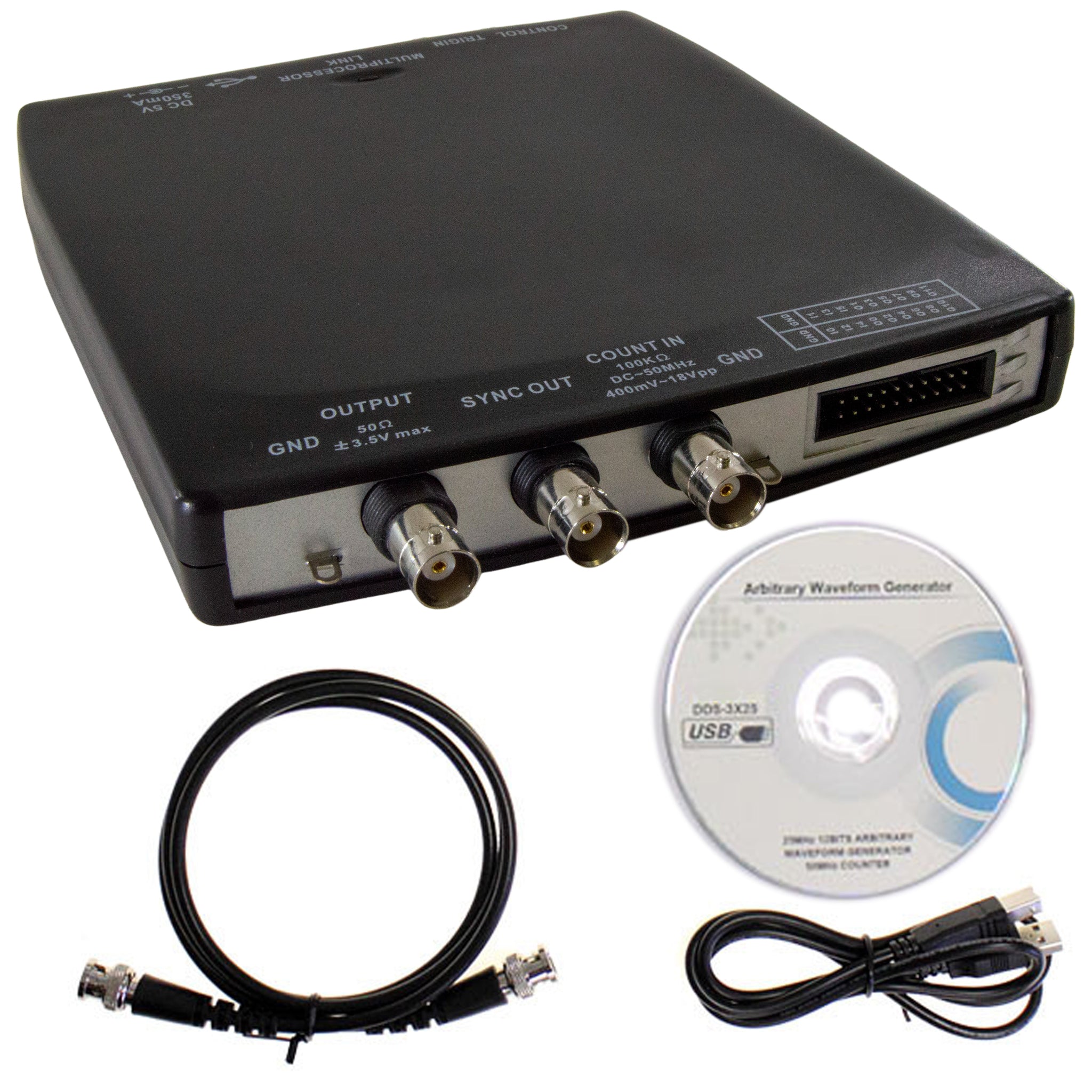

•Includes CD with driver and software compatible with the following Operating Systems: Windows NT, XP, Vista, 7, 10 (NOTE: Must disable driver signing to use in 64-bit versions of Windows 10. Instructions to do this can be found by searching the web for Disable Driver Signature Enforcement Windows 10)

Specifications:
Arbitrary waveform ouput
Wave frequency: DC~25MHz
DAC clock: 2K~200MHz adjustable
Channels: 1CH waveform output
Waveform Length: 4KSa
Vertical Resolution: 12 bit
Frequency stabilization: <30ppm
Amplitude: ±3.5V Max.
Output impedance: 50 Ω
Output current: 50mA Ipeak=50mA
System Bandwidth: 25M
Wave distortion: -50dBc(1KHz), -40dBc(10KHz)

Frequency Counter
Frequency area: DC~50MHz
Input Amplitude: 400mVpp~18Vpp
Coupling: DC
Frequency precision: ±time base error ±1 count
Input impedance: > 100KΩ

Pattern Generator
Digit: 12 bits pattern generator and 6bit digital in
Type: LVCMOS

Working Environment
Temperature: 0~70 °C
Humidity: 0~95%
Weight: 0.3Kg
