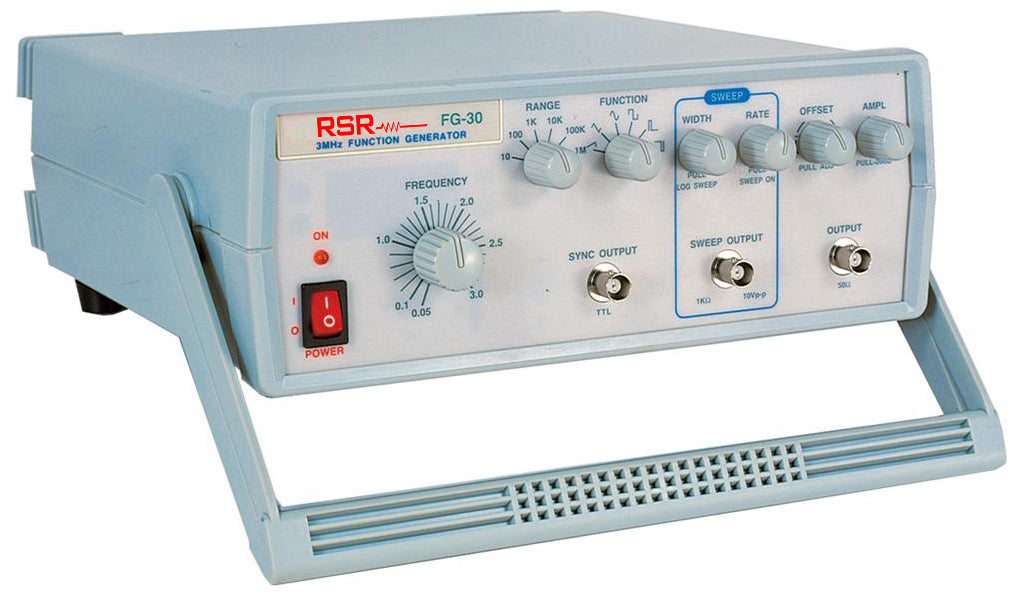

3 MHz Sweep Function Generator, Six Waveform Functions

• Six waveform functions: sine, triangle, square, ramp +/- pulse
• 0.5Hz ~ 3MHz frequency range
• Linear/Log sweep. Sweep rate 10mS~5S
• Amplitude 20V p-p/open, 10V p-p/50 ohm load.
• -20 dB attenuator

For applications where no display is needed, this model offers exceptional value and versatility including sweep mode and six waveform functions.

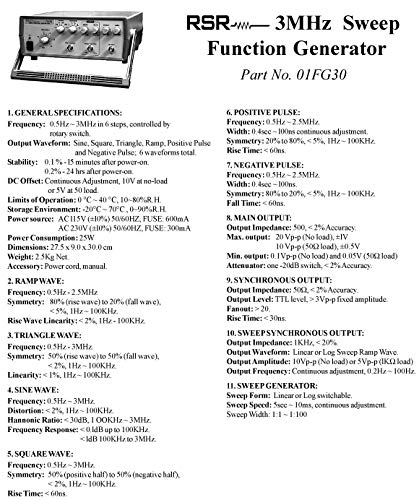

1. GENERAL SPECIFICATIONS:
Frequency: 0.5Hz ~ 3MHz in 6 steps, controlled by rotary switch.
Output Waveform: Sine, Square, Triangle, Ramp, Positive Pulse and Negative Pulse; 6 waveforms total.
Stability:
0.1 % - 15 minutes after power-on.
0.2% - 24 hrs after power-on.
DC Offset: Continuous Adjustment, 10V at no-load or 5V at 50 load.
Limits of Operation: 0 °C ~ 40 °C, 10~80%R.H.
Storage Environment: -20°C ~ 70°C , 0~90%R.H.
Power source:
AC 115V (±10%) 50/60HZ, FUSE: 600mA
AC 230V (±10%) 50/60HZ, FUSE: 300mA
Power Consumption: 25W
Dimensions: 27.5 x 9.0 x.30.0 cm
Weight: 2.5Kg Net.
Accessory: Power cord, manual.

2. RAMP WAVE:
Frequency: 0.5Hz - 2.5MHz
Symmetry: 80% (rise wave) to 20% (fall wave), < 5%, 1Hz ~ 100KHz.
Rise Wave Linearity: < 2%, 1Hz - 100KHz.

3. TRIANGLE WAVE:
Frequency: 0.5Hz - 3MHz.
Symmetry: 50% (rise wave) to 50% (fall wave), < 2%, 1Hz ~ 100KHz.
Linearity: < 1%, 1Hz ~ 100KHz.

4. SINE WAVE:
Frequency: 0.5Hz ~ 3MHz.
Distortion: < 2%, 1Hz ~ 100KHz.
Hannonic Ratio: < 30dB, 100KHz ~ 3MHz.
Frequency Response:
< 0.1dB up to 100KHz.
< 1dB 100KHz to 3MHz.

5. SQUARE WAVE:
Frequency: 0.5Hz ~ 3MHz.
Symmetry: 50% (positive half) to 50% (negative half), < 2%, 1Hz ~ 100KHz.
Rise Time: < 60ns.

6. POSITIVE PULSE:
Frequency: 0.5Hz ~ 2.5MHz.
Width: 0.4sec ~ 100ns continuous adjustment.
Symmetry: 20% to 80%, < 5%, 1Hz ~ 100KHz.
Rise Time: < 60ns.

7. NEGATIVE PULSE:
Frequency: 0.5Hz ~ 2.5MHz.
Width: 0.4sec ~ 100ns.
Symmetry: 80% to 20%, < 5%, 1Hz ~ 100KHz.
Fall Time: < 60ns.

8. MAIN OUTPUT:
Output Impedance: 500, < 2% Accuracy.
Max. output:
20 Vp-p (No load), ±1V
10 Vp-p (50? load), ±0.5V
Min. output: 0.1Vp-p (No load) and 0.05V (50? load)
Attenuator: one -20dB switch, < 2% Accuracy.

9. SYNCHRONOUS OUTPUT:
Output Impedance: 50?, < 2% Accuracy.
Output Level: TTL level, > 3Vp-p fixed amplitude.
Fanout: > 20.
Rise Time: < 30ns.

10. SWEEP SYNCHRONOUS OUTPUT:
Output Impedance: 1KHz, < 20%.
Output Waveform: Linear or Log Sweep Ramp Wave.
Output Amplitude: 10Vp-p (No load) or 5Vp-p (1K? load)
Output Frequency: Continuous adjustment, 0.2Hz ~ 100Hz.

11. SWEEP GENERATOR:
Sweep Form: Linear or Log switchable.
Sweep Speed: 5sec ~ 10ms, continuous adjustment.
Sweep Width: 1:1 ~ 1:100

Product Dimensions (L x W x H): 275 x x 90

Product Weight: 0.35 LB
