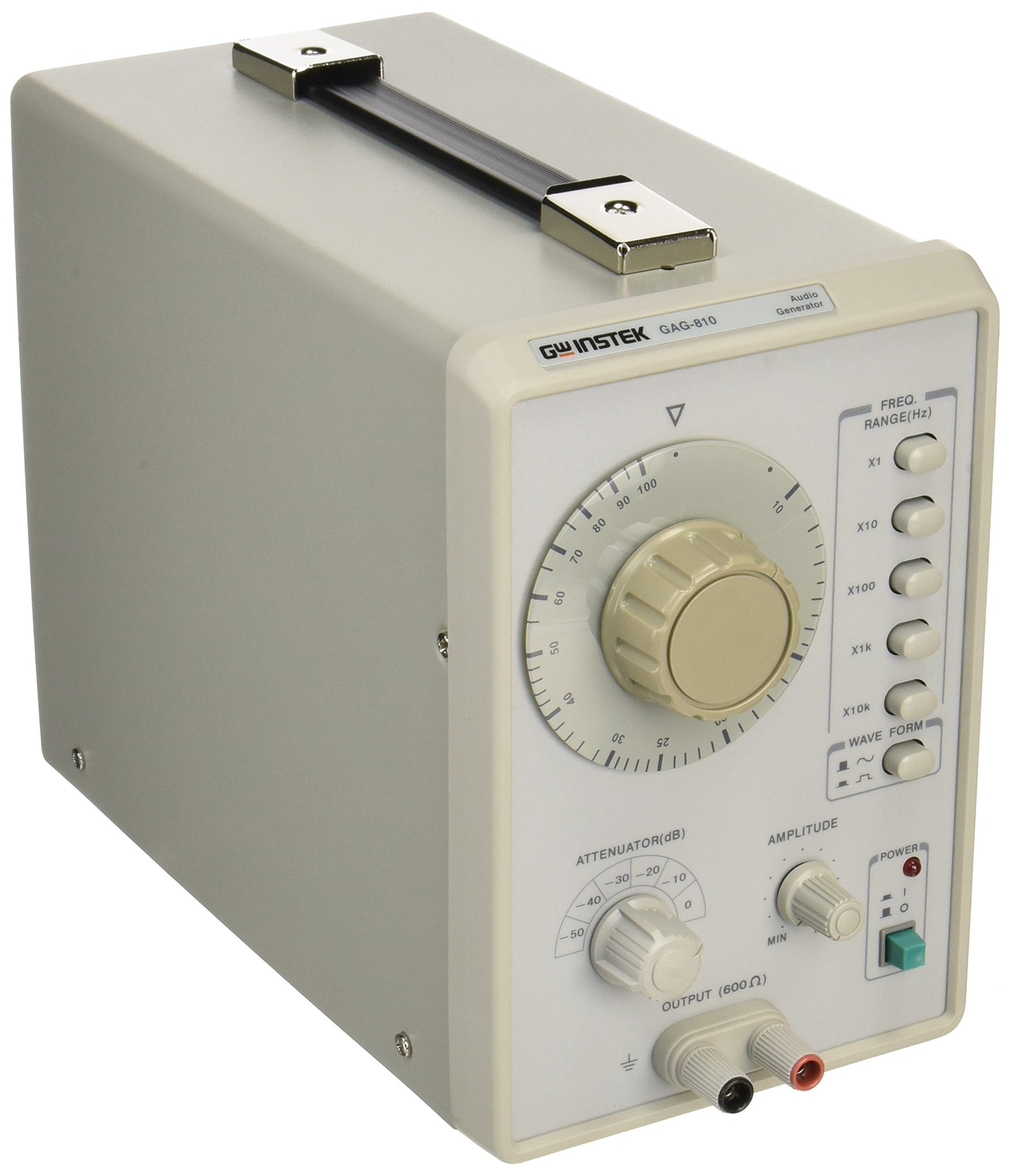

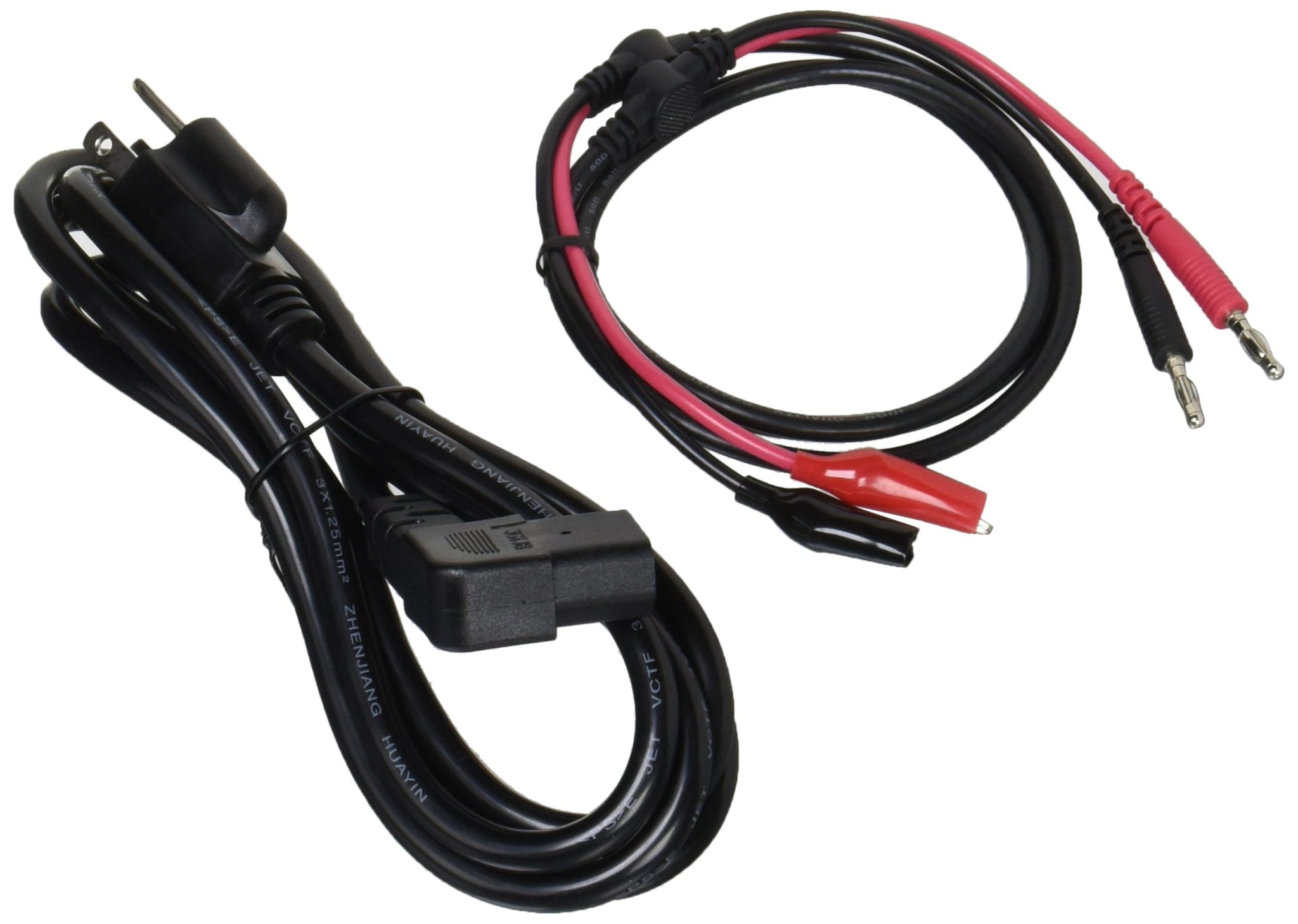

GW Instek GAG-810 Audio Generator, 10Hz to 1MHz Frequency Range

• 10Hz to 1 MHz Frequency
• 0.02 Percent low sine wave distortion
• 6 Steps output attenuator

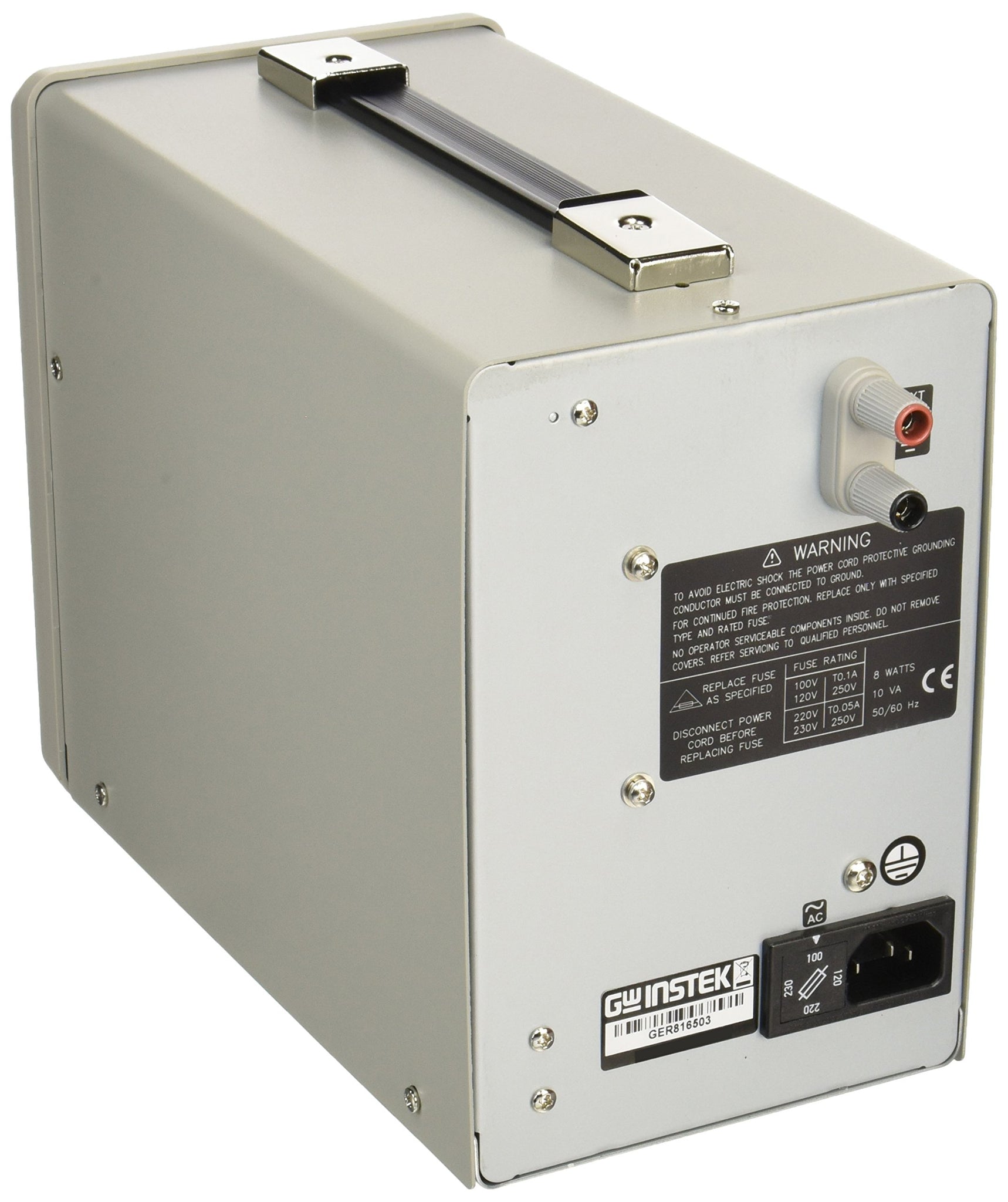

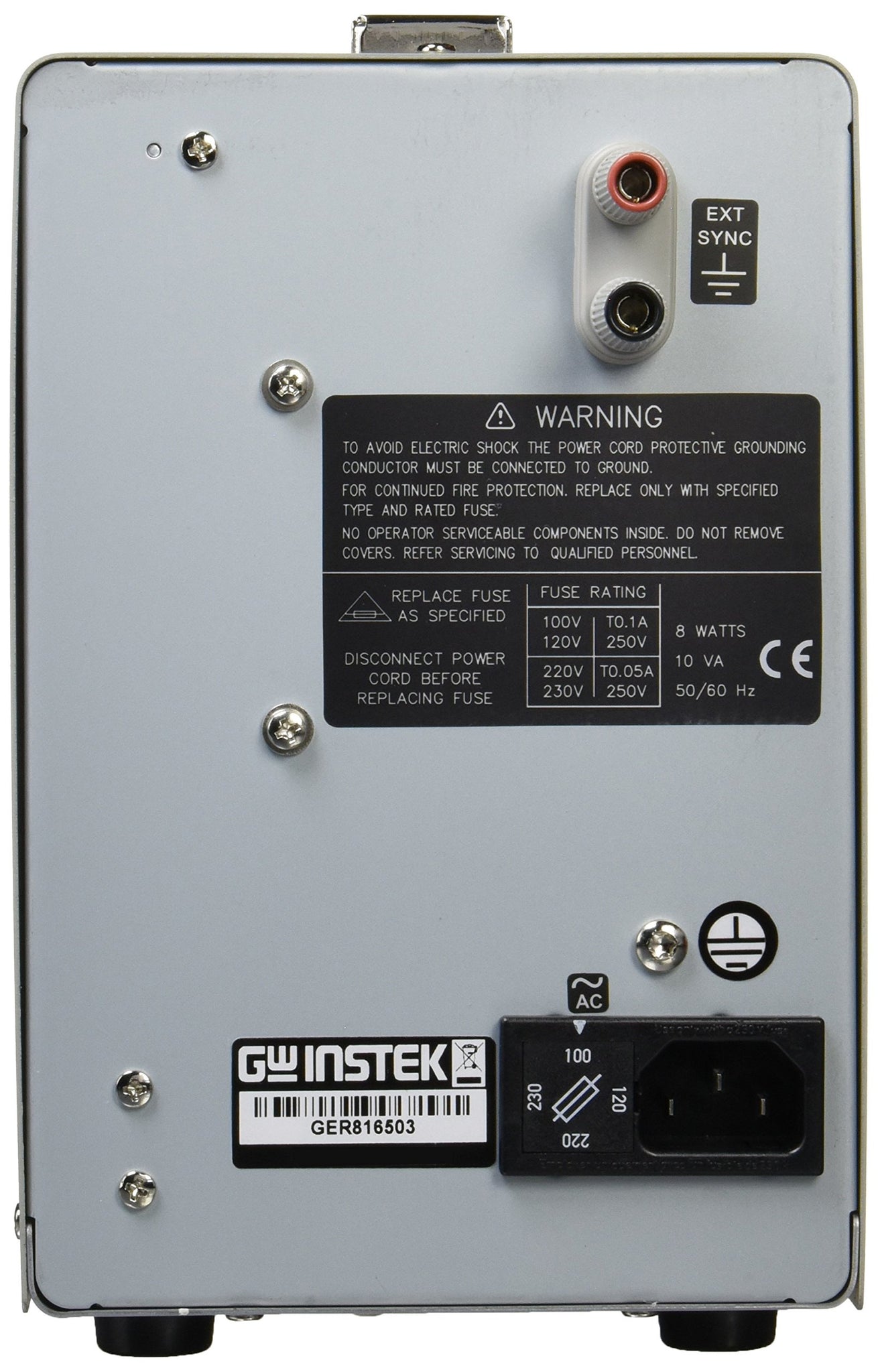

• External synchronization signal function

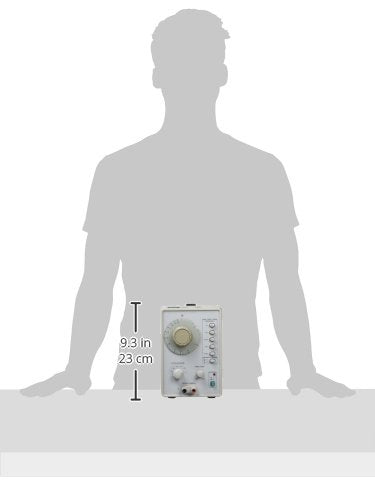

• Measures 130mm width by 210mm height by 292mm depth

The GAG-810 provide a convenient solution for low frequency (less than 1 MHz) signal generation, specifically for audio bandwidth. Intuitive and simple panel interface provides quick frequency and amplitude adjustment, with dial/key shortcuts to different ranges. Square wave generation covers digital application in addition to the traditional analog using sine waves. Distortion is kept at minimum level, especially at the audible frequency range: 0.02 percent or less distortion factor for 500Hz to 20kHz. The external synchronization signal input helps collaborate with other measurement devices. Sine Wave Characteristic: 10Hz to 1 MHz, 5 Ranges - frequency range; Dial Scale frequency indicator; +/-3 percent + 1Hz (at x10, x100) frequency accuracy; 5 Vrms (600O load) output voltage; 10Hz to 1 MHz +/- 0.5dB(at 600 ohm load) frequency response. Square Wave: less than or equal to 10Vp-p (no load) output voltage; greater than or equal to 2 percent (at 1kHz, max output) overshoot; greater than 200nS rise and fall time; 50 percent+/-5 percent duty ratio. Ext. Synchronization: +/-1 percent/Vrms synchronizing range; 15V (DC + AC peak) max. allowable input; 150 killohm input impedance. Output: 600 ohm output impedance; 0, -10, -20, -30, -40, -50dB; 6 ranges (accuracy+/-1dB at 600 ohm load) output attenuator. Measures 130mm width by 210mm height by 292mm depth.

Product Dimensions (L x W x H): 343 x 315 x 203 MM

Product Weight: 0.05 LB
