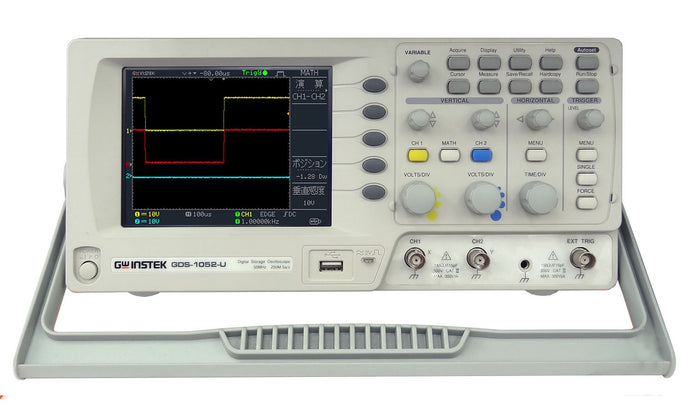

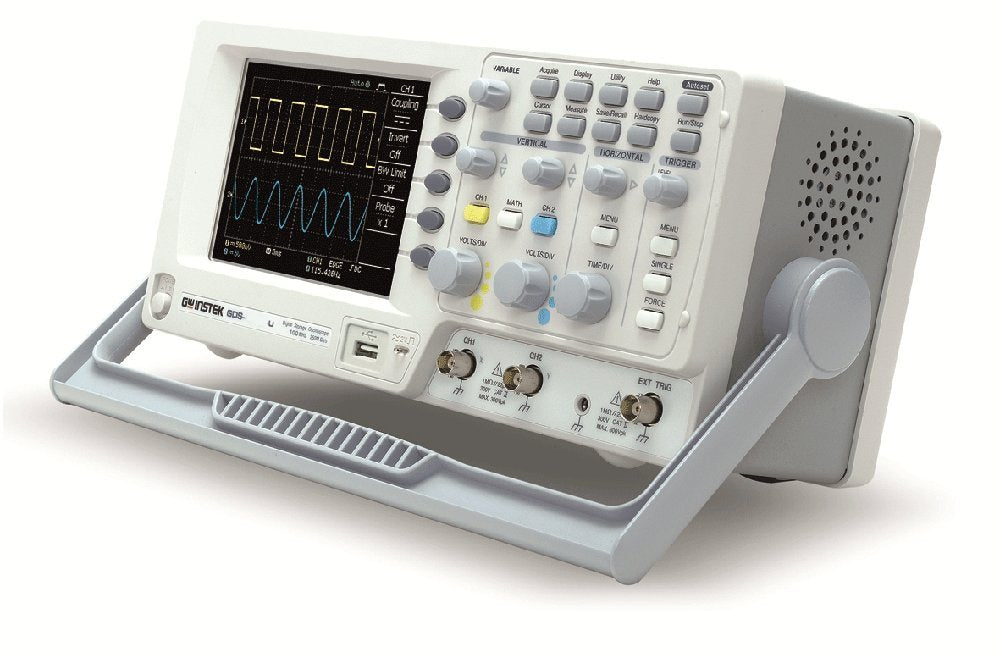

- Two-channel, portable digital oscilloscope for electronics applications such as product design, assembly lines, repair and servicing, and electrical engineering education
- Maximum real-time sample rate of 250MS/s and record length of 4 kpts per channel for acquiring detailed waveforms
- Auto-set function automatically selects the optimum settings for displaying waveforms
- Add, subtract, and FFT math functions and 19 measurement parameters for analyzing waveforms
- 5.7" color TFT-LCD for simultaneously viewing up to two live and two stored waveforms
The Instek GDS-1000-U series is a two-channel, portable digital oscilloscope with a maximum real-time sample rate of 250MS/s, a record length of 4 kpts, auto-set function, advanced triggering, two basic math functions and FFT, 19 measurement parameters, an internal memory for data storage, data logging, and USB connectivity for electronics applications such as such as product design, assembly lines, repair and servicing, and electrical engineering, among others. The sample rate and record length enable long capture times for displaying detailed waveforms. An auto-set function automatically configures the optimum settings for displaying waveforms by selecting the horizontal and vertical scales, positioning the waveform horizontally and vertically, and selecting and activating the trigger source channel. In addition to an edge trigger, the unit has pulse width and video triggers for isolating a specific signal. Two basic math functions—add and subtract—plus FFT (fast fourier transform) and 19 measurement parameters such as average, frequency, and peak-to-peak allow an in-depth analysis of waveforms. A go/no go test function promptly indicates when a signal falls outside user-defined settings, and a zoom function magnifies details of waveforms. Up to 15 waveforms or 15 setups can be stored in the internal memory of the oscilloscope. A data logging function tracks data at user-defined timed intervals for up to 100 hours, logging the data on a USB flash drive (sold separately). Additional specifications include a rise time of 7ns for the 50MHz model, 5ns for the 70MHz model, and 3.5ns for the 100MHz model, and various triggering features. The oscilloscope has a 5.7" color TFT (thin film transistor) LCD with a resolution of 320 x 234 pixels and can show simultaneously show up to two live and two stored waveforms.
The oscilloscope has a USB host port for connecting a flash drive (sold separately) to store data and a USB device port for connecti
Product Dimensions (L x W x H): 399 x x 221
Product Weight: 2.5 LB
