- 1GS/s Real-Time and 25GS/s equivalent-Time Sampling
- 25K Points Record Length Maximum
- Large 5.6-in Ultra-bright TFT Color
- Up to 27 Automatic Measurements
- Three USB ports and one RS232 (standard).

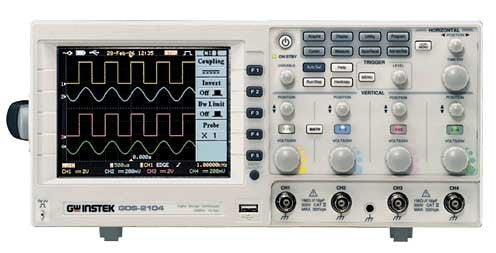

200MHz bandwidth 4 channels, 1GS/s Real-Time and 25GS/s equivalent-Time Sampling, 25K point record length for analyzing complex signals, Large 5.6-in Ultra-bright TFT Color Wide-angle viewable area, 8 X 12 Division display, Three USB ports and one RS232 (standard). Free software (interface/storage) USB host supports flash drive storage and color printout, DC Battery Power Operation (optional) Up to 27 Automatic Measurements Video/Pulse Width/Event-Delay/Time-Delay Trigger. FFT Analysis (Selectable Filters) Up to 8ns Peak Detection, 'Program Mode' and 'Go-No Go' Function RS-232 and GPIB Interface, Multi-Language and Built-in On-Line Help ,Store waveform raw data (CSV files) Capture screen image as BMP files Print waveform via USB printer
Product Dimensions (L x W x H): x 262 x MM
Product Weight: 2.5 LB
