Fully digital phase locked loop technique design | Two markers for absolute and relative Measurement | Support standard RS-232C interface to connect with PC | High input protection level: +30dBm, +/-25VDC | 150kHz to 1GHz frequency range

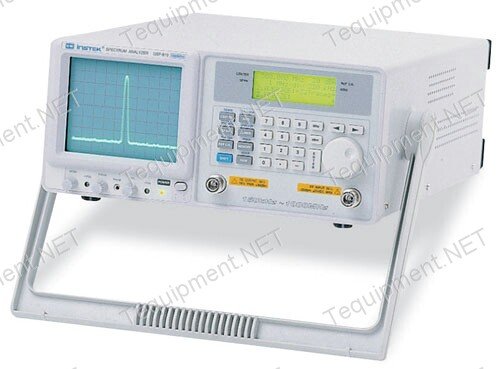

GW Instek GSP-810PM LCD Display Spectrum Analyzer with Power Meter, 150kHz to 1GHz Frequency

01GSP810
Regular price
$2,257.08
Sale price
$2,257.08
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

  • Fully digital phase locked loop technique design
  • Two markers for absolute and relative Measurement
  • Support standard RS-232C interface to connect with PC
  • High input protection level: +30dBm, +/-25VDC
  • 150kHz to 1GHz frequency range
The GSP-810 Spectrum analyzer is a digitally synthesized, easy-to-use RF measurement instrument with a frequency range up to 1GHz. It uses a state-of-art design with a phased-locked RF system that combines measurement quality and performance with an affordable price. The GSP-810 is also designed for rugged use with 1-watt input protection. With a compact size and feature packed functions, the GSP-810 is an affordable, expandable, and high quality instrument for the most demanding needs. This spectrum analyzer comes with Power Meter. Display device: CRT Display, 8 x 10 graticule, 6" waveform screen; LCD Display, 4 line x 20 character data screen. Display function: center frequency control, bandwidth, reference level, span range, amplitude. Marker: 2 markers; 0.1dB, 1kHz resolution; 10 save/recall memory; 80 MHz, -30dBm calibrate signal. 1 User manual and 1 Power cord. High frequency stability: +/-10ppm. Resolution bandwidth range: 3K, 30k, 220k, 4 MHz. Frequency display: 6-1/2 digitetting. Measurement range: -100dBm to +20dBm. Reference level range: -30dBm to +20dBm. Average noise floor: -95dBm at 30kHz RBW, -100dBm typical /-75dBm: 150kHz to 10 MHz. Power Source, 100 MHz Bandwidth AC: 100V/120V/220V/230V +/-10 percent; 50/60Hz frequency. For Power Meter: 10 MHz to 2 GHz, usable to 2.7GHz frequency range; -20 dBm to +23 dBm, usable to +30 dBm power level range; +40 dBm less than 10 percent duty cycle, less than 10 mS duration power level overload; less than 1:1.35 VSWR into 50 ohms, less than 1:1.25 typical return loss; 0.2 mW, 100 mW scale, 2 W, 1 mW scale; 0.1dB, Log scale readout resolution; +/-(10 percent reading 1 digit) accuracy; mW or dBm readout. Measures 310mm width by 150mm height by 455mm depth.

Product Dimensions (L x W x H): x 292 x MM

Product Weight: 2.5 LB
