Hantek 20 MHz USB Oscilloscope for PC
- Hantek 20 MHz USB Oscilloscope for PC or Laptop - compatible with Windows 10, Windows 8, Windows 7, Windows NT, Windows XP, VISTA
- 20MHz bandwidth, 2 Channels, 48MSa/s Sample Rate
- Features 23 measurement functions, PASS/FAIL check. Waveform average, persistence, intensity, invert, addition, subtraction, multiplication, division, X-Y plot.
- Easily extend channels by connecting multiple oscilloscopes to one computer. Conforms to the standard USBXITM interface, and can easily insert into a USBXITM housing allowing the user to build up a combination instrument.
- Portable size (8.07" x 4.72" x 1.37"), connects to your computer or laptop via USB 2.0 interface - no external power source required.
- Supports saving waveforms to: text file, jpg/bmp graphic file, MS excel/word file

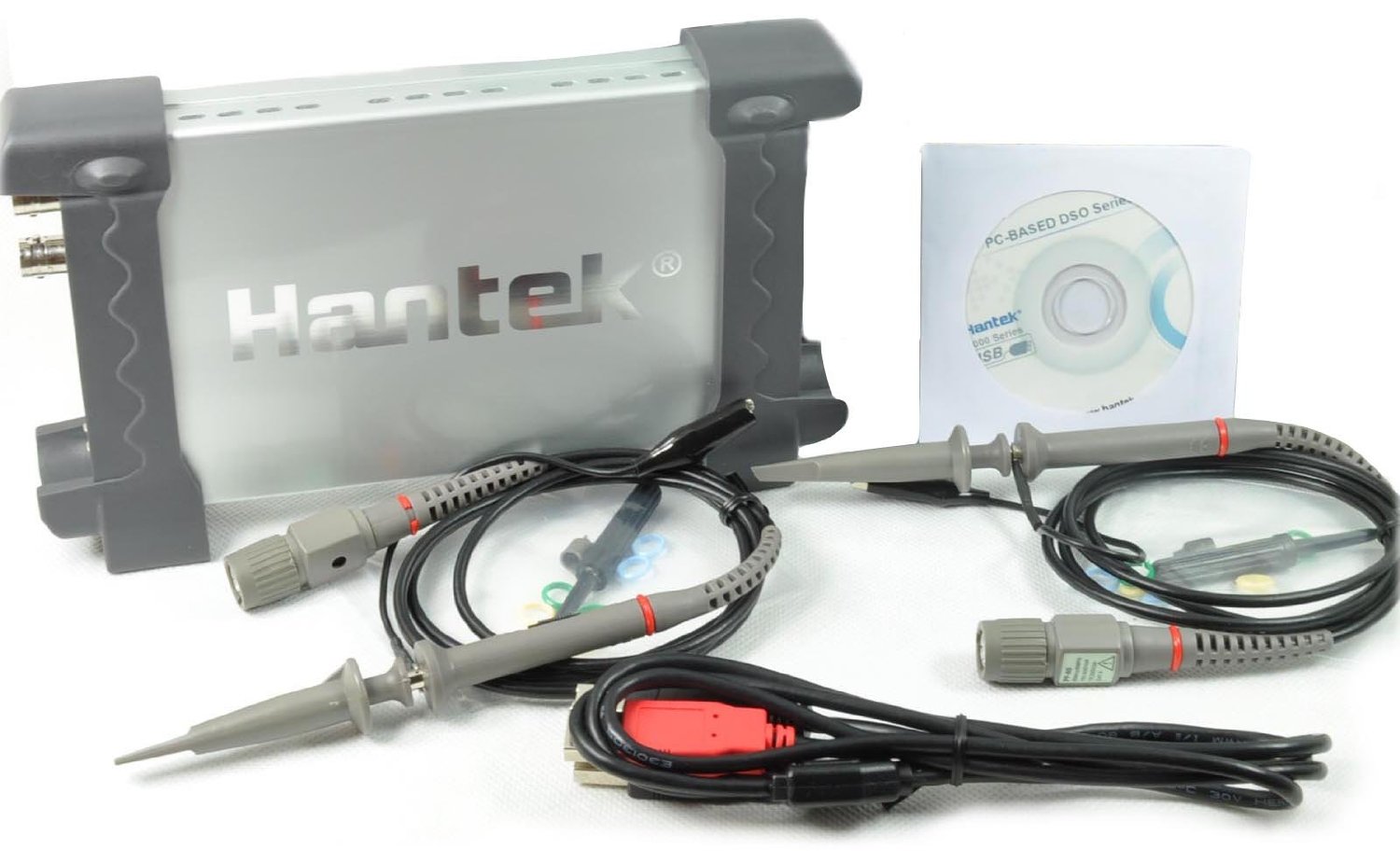

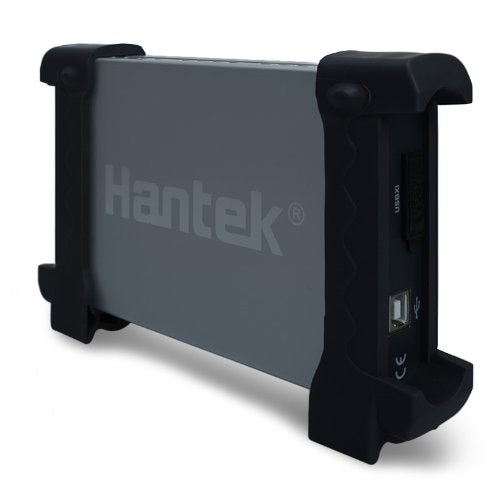

The Hantek 6022BE is one of the most affordable USB oscilloscopes on the market. This is an excellent PC-based introductory oscope that will allow you to get many of the features of a high-end oscilloscope without the high cost. The product has excellent build quality and implements extruded aluminum casing and rubber shock bumpers at each end. Features found in high-end test equipment. It ships with a USB cable, 2 oscilloscope probes, and a disk containing the instruction manual. The disk also contains the software for the oscilloscope. We always recommend downloading the latest software from Hantek's website found HERE as Hantek updates and improves the software moving forward.
Hantek 6022BE Specifications:
- Channels: 2
- Bandwidth: 20 MHz
- Input Impendence: 1MΩ 25pF
- Max. Sample rate: 48MS/s
- Vertical resolution: 8Bit
- Gain range: 20mV-5V, 8Steps
- DC accuracy: ±3%
- Timebase range: 1ns-9000s, 39 Steps
- Vertical adjustable: Yes
- Input protection: Diode clamping
- X-Y: Yes
- Trigger Mode: Auto, Normal and Single
- Trigger Slope: +/-
- Trigger level adjustable: Yes
- Trigger Type: Rising edge, falling edge
- Trigger Source: CH1, CH2
- Sampling selection: Yes
- Waveform Display: port/line, waveform average, persistence, intensity
- Network: Open/Close
- Vertical mode: CH1, CH2, Dual, ADD
- Cursor measurement: Yes
- Math: FFT, addition, subtraction, multiplication, division.
- Cursor: Frequency, Voltage
- Dimensions: 205mm (L) x120mm (W) x35mm (H)
- Accessories: Software CD, probes, manual, USB cord
- Operating System: Windows 10, Windows 8, Windows 7, Windows NT, Windows XP, VISTA.
Hantek 6022BE Features:
- The unit conforms to the standard USBXITM interface, and can easily insert into a USBXITM housing allowing the user to build up a combination instrument.

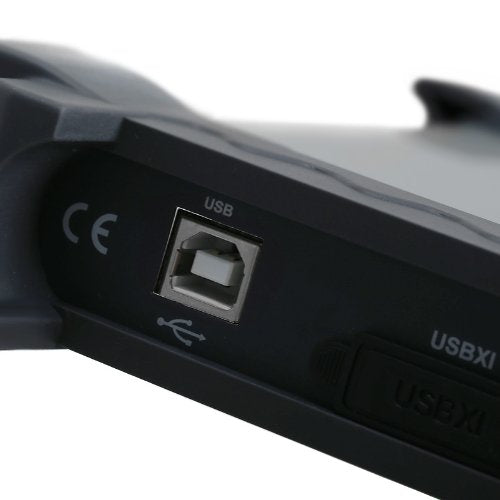

- USB2.0 interface, no external power source required, easy to use.
- Suitable for notebook computers, or product line maintenance.
- High performance, 48MS/s real-time sampling, 20MHz Bandwidth.
- 23 measurement functions, PASS/FAIL Check, be suitable for technical application> Waveform average, persistence, intensity, invert, addition, subtraction, multiplication, division, X-Y plot.
- Saves waveform in the following: text file, jpg/bmp graphic file, MS excel/word file. FFT
- One computer can connect many DSO, to easily extend channels.
