- Adjustable outputs: 0-18V and 0-3A
- Line regulation: CV <= 0.01% + 1 mV, CC <= 0.2% + 1 mA
- Load Regulation: CV <= 0.01% + 3mV, CC <= 0.2% + 3 mA
- Ripple noise: CV <= 0.5 mV RMS, CC <= 3 mA RMS
- LCD reading accuracy: +/-1% for voltage and +/-2% for current

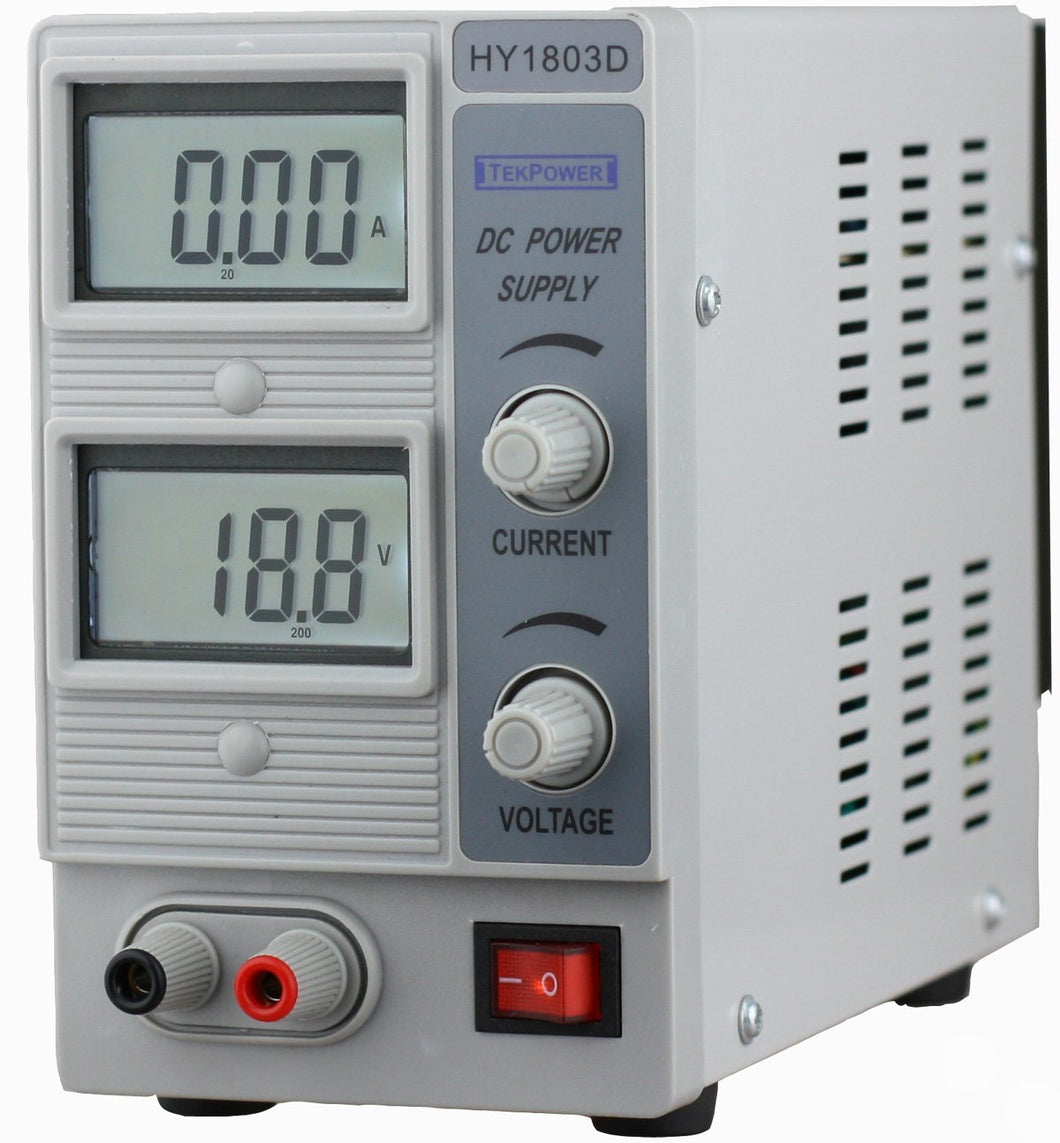

For sale is a brand new, professional DC regulated power supply from Mastech, Model number HY1803D. This is a highly stable, high quality linear power supply with its output continuously adjustable at 0-18V DC and 0-3A. The unit comes with 2 LCD displays, providing accurate readout for the voltage and current values.
Features & Specifications:
Adjustable outputs: 0-18V and 0-3A Variable controls for both current and voltage outputs
Input voltage: 104-127V
Switchable Line regulation: CV <= 0.01% + 1 mV, CC <= 0.2% + 1 mA
Load Regulation: CV <= 0.01% + 3mV, CC <= 0.2% + 3 mA
Ripple noise: CV <= 0.5 mV RMS, CC <= 3 mA
RMS Protection: constant current and short-circuit protection
LCD reading accuracy: +/-1% for voltage and +/-2% for current
Environment: 0-40C, relative humidity < 90%
Size: 9" x 6.8" x 3.7"
Weight: 10 lbs
