Rigol MC3324 Instrument Options - MIX Module

• MIX Module
• MC3324 MIX Module
• 20-voltage-channel+4-current-channel Mixed Multiplexer

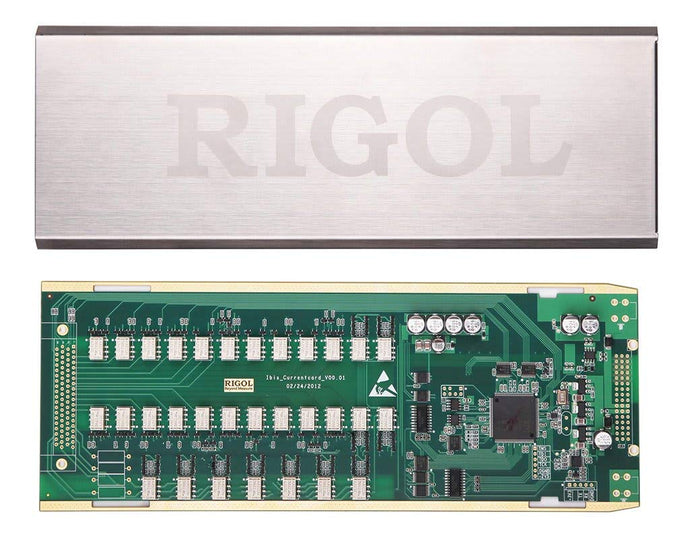

Rigol MC3324 MIX Module 20-voltage-channel+4-current-channel Mixed Multiplexer.24 channel multiplexer module for use with M300 DAQ System Mainframe and MC3065 DMM module. This card has 20 voltage channels configurable for 2 or 4 wire measurements and 4 current only measurement channels. The M3TB24 is the mating terminal block for this module.MC3324 (24-Channel Multiplexer):The MC3324 is a mixed multiplexer with 20 voltage channels and 4 current channels. All 20 voltage channels switch both HI and LO inputs, thus providing fully isolated inputs to the DMM module, and is divided into two banks (called A and B) of 10 two-wire channels each. When making 4-wire resistance measurement, the instrument automatically pairs channels of A bank and B bank. All channels are break-before-make. You can close multiple channels on this module only if you have not configured any channel to be part of the scan list. 4 current channels are used in combination with the DMM module to measure DC current or AC current. All channels are break-before-make. In any case, you cannot close multiple channels on this module. This module can be connected with MC3065 (DMM Module, if MC3065 is currently inserted).Measurement Connections Using External Terminal BlocksM300 provides 6 kinds of terminal blocks to easily connect the signal to be measured to the module. The models of the terminal blocks and corresponding modules are listed in the table below. This section introduces how to use the external block. Terminal Block Module 1 M3TB32 MC3132, MC3232 2 M3TB64 MC3164, MC3264 3 M3TB24 MC3324 4 M3TB48 MC3648 5 M3TB16 MC3416 6 M3TB34 MC3534Note: for the MC3724, the signal can be connected to the SMB connectors on the module directly. No terminal block is needed.WARNING: Cut off all the

Product Dimensions (L x W x H): 432 x x 152

Product Weight: 0.6 LB
