Rigol MC3534 Instrument Options - MFC Module

• MFC Module
• MC3534 MFC Module
• Multifunction Module 4x 8-bit DIO´s, 4x TOT totalizer, 4x DA converter

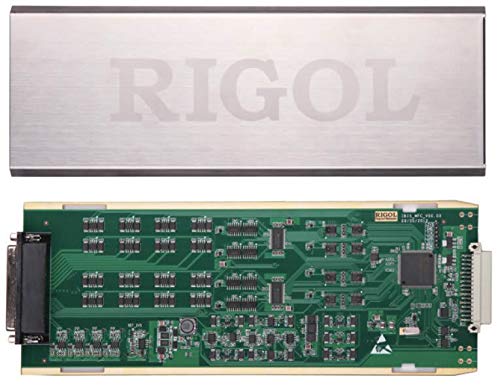

Rigol MC3534 MFC Module Multifunction Module 4x 8-bit DIOs, 4x TOT totalizer, 4x DA converter.Multifunction module for use with M300 DAQ System Mainframe. It includes 4 DACs, 4 Totalizers, and 32 DIO bits. The M3TB34 is the mating terminal block for this module.MC3534 (Multifunction Module):This module provides 3 kinds of functions with 4 channels for each function. This module can be used to check status or control external devices (such as solenoid, power relays and microwave switches). You can also read digital inputs and the totalizer count during a scan. Four 8-bit digital input/output (DIO) ports 4 totalizer (TOT) input terminals (the first two channels are 10 MHz TOT and the other two channels are 100 kHz TOT) with 1 Vpp sensitivity 4 analog output terminals, +-12 V calibrated voltageMeasurement Connections Using External Terminal BlocksM300 provides 6 kinds of terminal blocks to easily connect the signal to be measured to the module. The models of the terminal blocks and corresponding modules are listed in the table below. This section introduces how to use the external block. Terminal Block Module 1 M3TB32 MC3132, MC3232 2 M3TB64 MC3164, MC3264 3 M3TB24 MC3324 4 M3TB48 MC3648 5 M3TB16 MC3416 6 M3TB34 MC3534Note: for the MC3724, the signal can be connected to the SMB connectors on the module directly. No terminal block is needed.WARNING: Cut off all the power supplies before opening the terminal block or removing the terminal block from the module.1.Place the terminal block with the front (with the RIGOL caption) facing downward and pull the two latches in the arrow direction in the figure below and press them down. Place the terminal block with the front facing upward and pull the upper cover of the terminal block upward and remove

Product Dimensions (L x W x H): 432 x x 152

Product Weight: 0.02 LB
