- Compact manual ranging multimeter with 8 functions including temperature
- Large easy to read digital display
- AC/DC voltage, DC current, resistance, Type K temperature, continuity/diode
- 1.5V and 9V Battery test function
- Convenient mini size with protective rubber holster and tilt stand

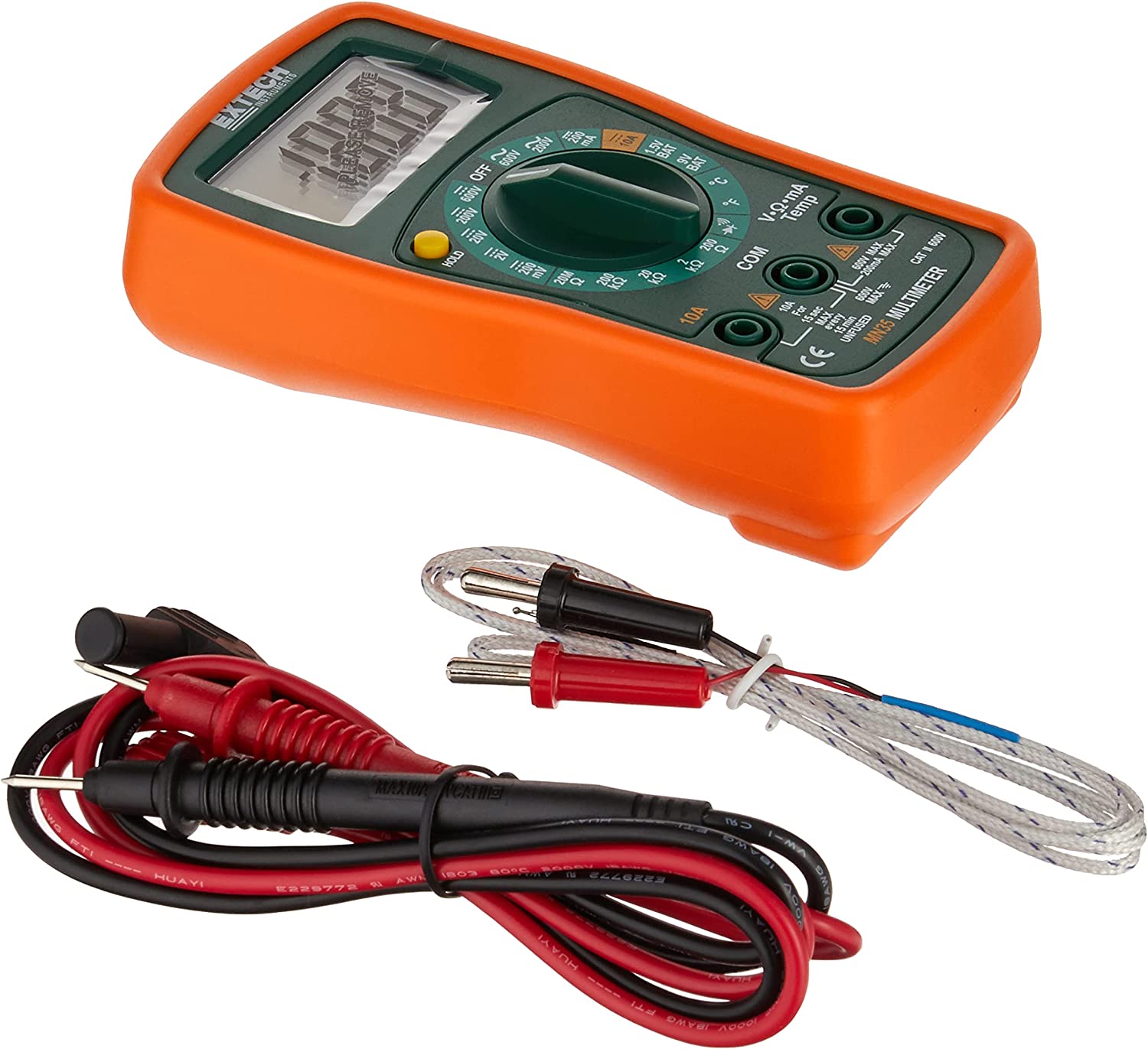

Conveniently sized Extech MN35 manual-ranging multimeter enables you to measure AC and DC voltage up to 600 Volts. It is designed with a large, easily readable LCD screen. Unit also provides resistance tests with continuity and diode functions, thermocouple temperature measurements up to 1400deg F and a data hold function that locks the reading on the display. Compact multimeter is ergonomically designed with curved corners. Features an integrated tilt stand and impact-resistant rubber holster for excellent grip and protection. Includes 9V battery, test leads, Type K thermocouple probe and instructions.
Dimensions L x W x H (in.): 5.43 × 2.83 × 1.5" (138 × 72 × 38mm)
Low Battery Indicator: Yes
Display Shows: 2,000 count
Specifications:
AC Voltage: 600V
AC Voltage Basic Accuracy: ±1.2%
AC Voltage Max Resolution: 0.1V
Battery Test: 9V and 1.5V
DC Current: 10A
DC Current Basic Accuracy: ±1.5%
DC Current Max Resolution: 0.1mA
DC Voltage: 600V
DC Voltage Basic Accuracy: ±0.5%
DC Voltage Max Resolution: 0.1mV
Resistance: 20MΩ
Resistance Max Resolution: 0.1µΩ
Temperature (Type K) Max Resolution: -4 to 1400°F (-20 to 750°C)
Temperature (Type N): ±(1% of reading + 4°)
Temperature (Type N) Basic Accuracy: 1°F/°C
