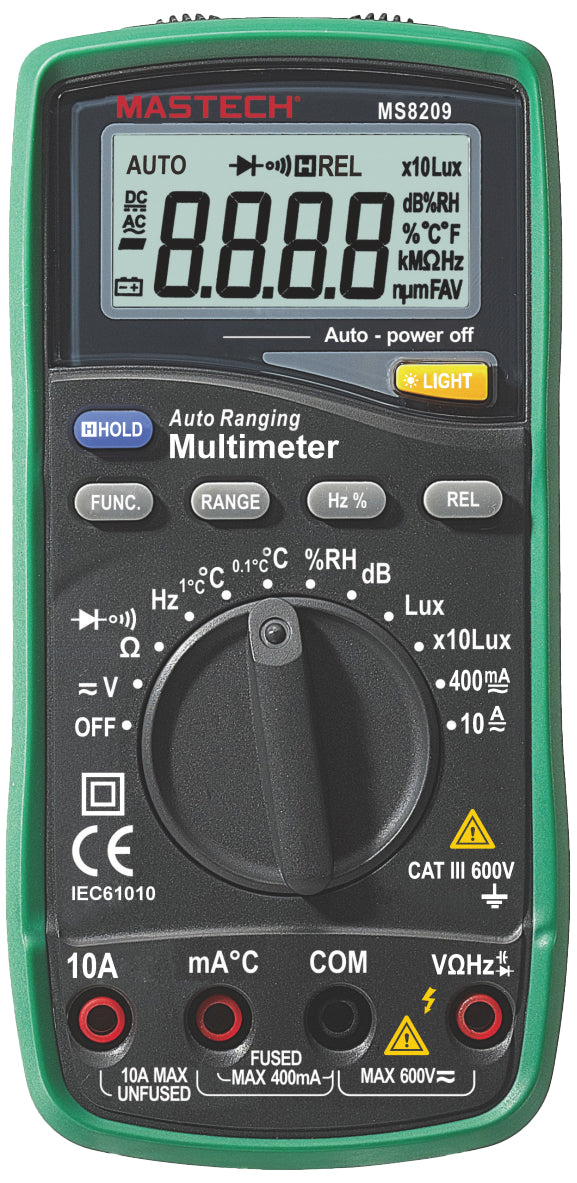

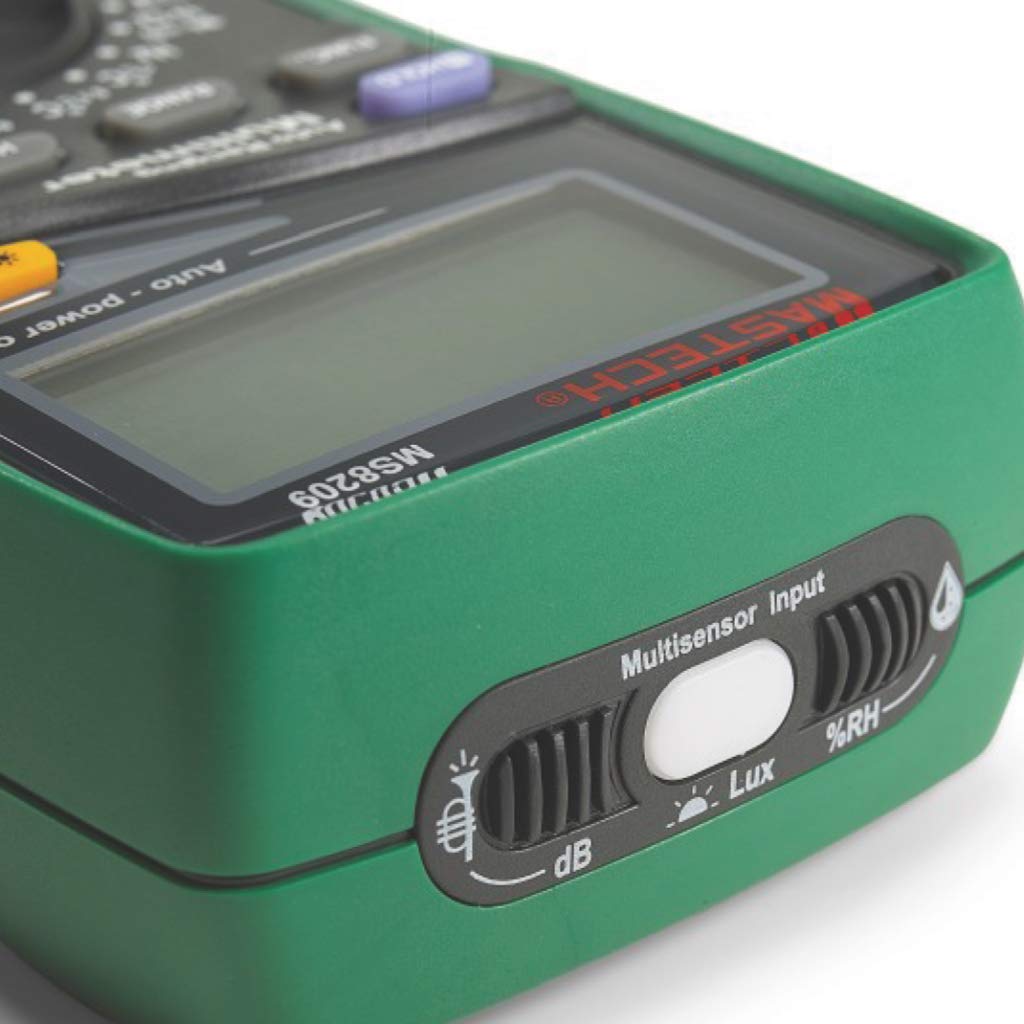

- Designed to combine the functions of a Sound Level Meter, Light Meter, Humidity Meter, Temperature Meter and Digital Multimeter
- Traditional DMM functions: AC/DC Voltage and Current, Resistance, Frequency, Duty Cycle, Capacitance, Continuity, Relative Measuring and Diode Check
- Features 4000 Counts Display, Auto & Manual Ranging, Auto Power Off, Diode Open Voltage 1.5V, Continuity Buzzer <40Ω, Relative Measurement, Data Hold, Low Battery Indicator, Display Backlight

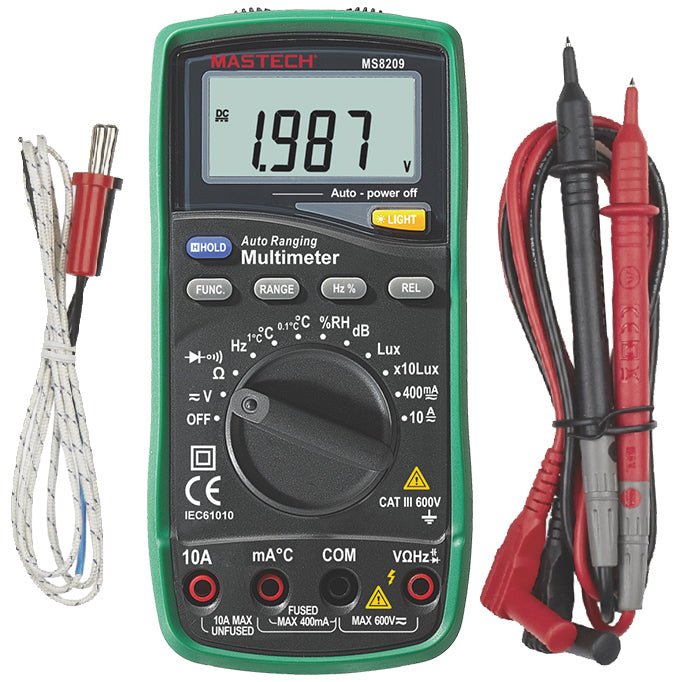

- Includes Test leads, K type thermocouple, Carry bag, Battery, and User's manual

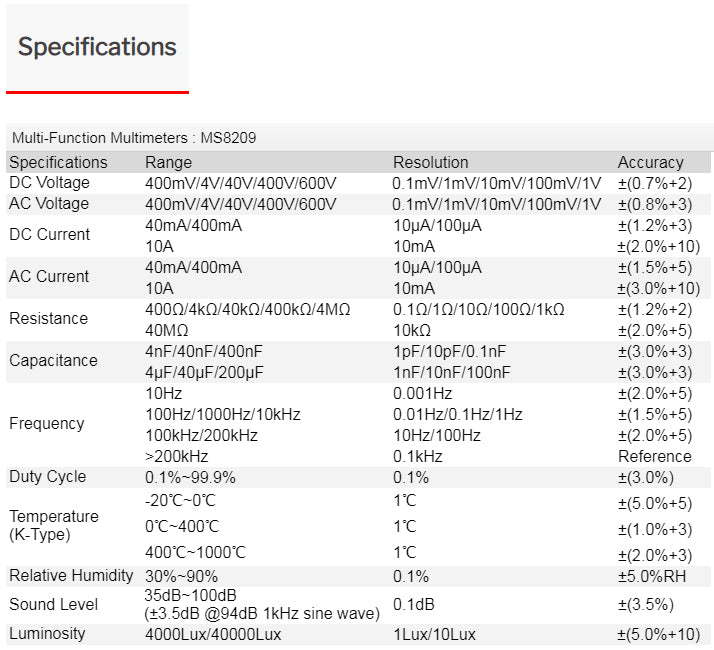

Specifications:
DCV: 0/400mV/4V/40V/400V/600V +-0.7%.
ACV:0V/4V/40V/400V/60V +- 1.0% (True RMS).
DCA: 40mA/400mA/10A +-0.5%.
ACA: 40mA/400mA/10A +-1.5%.
Ohm: 400/4K/40K/400K/4M/40M +-1.2%.
Capacitance: 4nF/40nF/400nF/4uF/40uF/200uF.
Frequency: 9.999Hz/99.99Hz/999.9Hz/9.999KHz/99.99KHz/199.9KHz-200KHz +- 0.5%
Duty Cycle: 0.1-99.9% +-3.0%.
Temp: -20℃ - 1000℃ +- 1.0% (Two Ranges).
Humidity (RH): 30- 90 %.
Sound Level: 35- 100 dB (0.1dB/3.5%).
Brightness: Lux (4,000)- 10X Lux(40,000) 5.0%.
Audible Continuity test with Diodes test.
Power Source: 1x 9V Battery
Size: 6.2" x 3.1" x 1.5" (158mm x 78mm x 39mm)
Weight: 0.55lb (260g)
Certificate: RoHS
Safety Rating: CATIII 600V

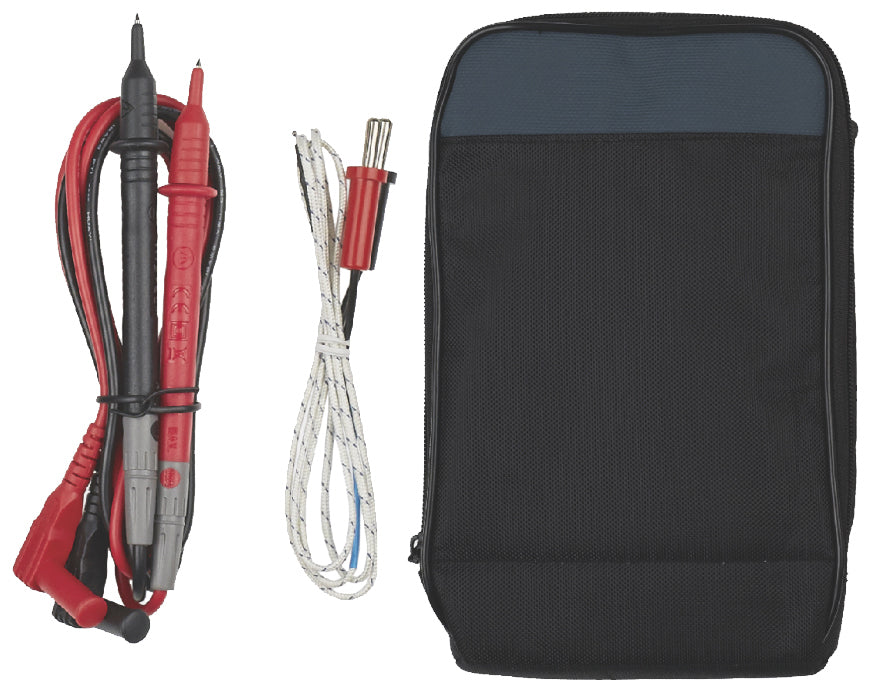

Package includes:
● Test leads
● K type thermocouple
● Carry bag
● Battery and User's manual
