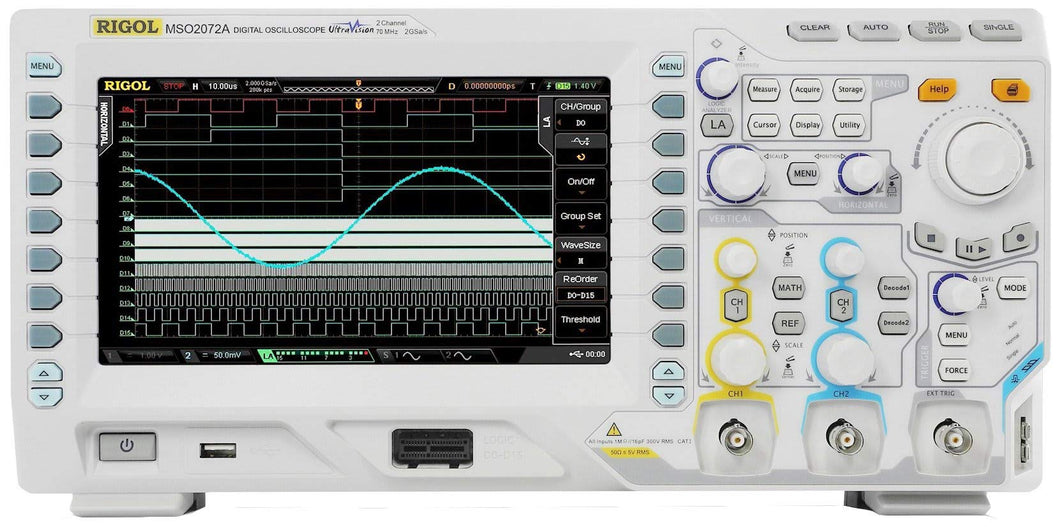

Rigol MSO2072A - Channels: 2, Bandwidth: 70 Mhz

• 70 MHz, 2 Channel Mixed Signal Oscilloscope with 2 GSa/sec and 14 Mpts memory standard as well as low noise front end. 50 Ohm input included
• 70MHz Bandwidth, 16 Digital Channel (MSO)
• 2 Analog Channels
• 5.000 ns/div to 1.000 ks/div Time Base Scale
• Calculated Rise Time: 5ns

MSO-DS2000A Series Digital OscilloscopeMSO/DS2000A Series is the new mainstream digital scope to meet the customer's applications with its innovative technology. MSO2000A Series has 2+16channels, target for the embedded design and test market with its industry leading specifications, powerful trigger functions and broad analysis capabilities.Innovative UltraVision technology(Analog Channel) Deeper Memory Depth (Up to 56Mpts) Higher Waveform Capture Rate (Up to 50,000 wfms/s) Realtime Waveform Record,Replay & Analysis (Up to 65,000 frames) Multi-level Intensity Grading Display (Up to 256 Levels)Features and Benefits Wider Vertical range(500uV/div~10V/div),Lower noise floor, Better for small signal capturing Built-in 2CH Source (MSO/DS2000A-S) UltraVision: Deeper memory(Std.14Mpts,Opt.56Mpts) UltraVision: Up to 50,000 wfms/s Waveform capture rate UltraVision:Realtime waveform record,replay,analysis function (std.) UltraVision: Deeper Memory with Multi-Level intensity grading display(Up to 256 levels) Serial bus Trigger&Decoding functions (RS232,I2C,SPI,CAN) Versatile Trigger Functions(Runt, Nth Edge,Setup/Hold )MSO2000A Series Mixed Signal OscilloscopeBesides the powerful functions of DS2000A, you could get more from MSO2000A with: 16 Digital channels Sample rate of Digital channel up to 1 GSa/s Memory depth of Digital channel up to 28Mpts Waveform capture rate of Digital channel up to 50,000wfms/s Real Time Waveform Record, Replay and analysis functions, up to 65,000 frames Triggering and Decoding across Analog and Digital channels Easy to be grouped for digital channels Support a variety of logic levels Time correlation display for both analog and digital signalsInnovative UltraVis

Product Dimensions (L x W x H): 457 x 286 x 279 MM

Product Weight: 1.55 LB
