- 100MHz, two-channel, portable analog oscilloscope for electronics applications such as product design, assembly lines, repair and servicing, and electrical engineering education
- Timebase auto-range function automatically selects the optimum sweep time for displaying waveforms
- Delayed sweep mode can horizontally magnify any portion of a complex waveform for inspection
- 6" CRT display with an internal 8 x 10 division grid for viewing waveforms
- Meets EN and IEC safety standard 61010 and is rated for CAT II installations to 400V

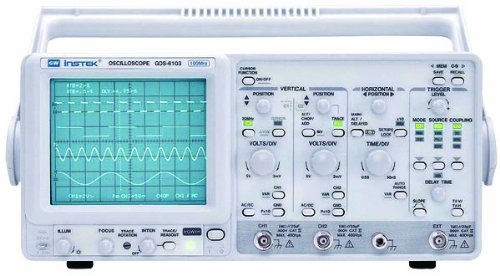

The Instek GOS-6103 is a 100MHz, two-channel portable analog oscilloscope with a timebase auto-range function, delayed sweep mode, seven cursor measurements, storage for ten user-defined settings, Z-axis input, TV synchronization capability, trigger signal output, and high- and low-frequency rejection circuits for electronics applications such as product design, assembly lines, repair and servicing, and electrical engineering education, among others. The timebase auto-range function automatically selects the optimum sweep time for displaying waveforms. The oscilloscope has a standard sweep and a delayed sweep that can horizontally magnify any portion of a complex waveform for inspection. Seven cursor readout measurements—voltage difference, voltage difference percentage, voltage gain, time difference, time difference percentage, frequency, and phase—allow analysis of waveforms. Ten user-defined instrument settings can be saved and recalled. The Z-axis input modulates the intensity of the waveform and the TV synchronization circuit allows triggering of TV-V and TV-H signals. The trigger signal output can be connected to a frequency counter or other device (sold separately). High- and low-frequency rejection circuits remove interference from a signal to prevent false triggering. To protect settings against inadvertent changes, the control panel can be locked. Additional specifications include a rise time of 3.5ns (17.5ns at 2mV per division) and various triggering features. The oscilloscope has a 6" CRT (cathode ray tube) display with an internal 8 x 10 division grid (each division is 1 cm) for viewing waveforms. It meets European Standard (EN) and International Electrotechnical Commission (IEC) 61010-1 safety standard, and is rated for CAT (category) II installations to 400V, which covers energy-consuming equipment connected to a fixed installation, including household, office, and laboratory appliances. It has CE (European Conformity) marking.
Product Dimensions (L x W x H): 523 x x 251
Product Weight: 0.75 LB
