Ideal for analog, digital and microprocessor circuits | New high and low buffered logic indicators | New 8 selectable logic switches | 8 channel logic monitor | 3-year warranty on all parts and workmanship.

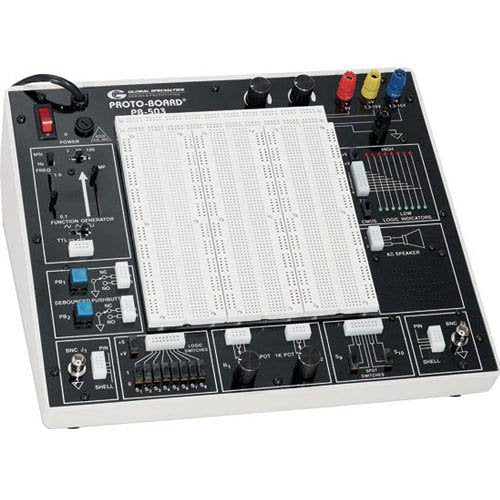

Global Specialties PB-503 Deluxe Analog and Digital Design Workstation, 0 to +/-10V, 16" Width x 6-1/2" Height x 11-1/2" Depth

01PB503
$368.48
$368.48
Sold out
Shipping calculated at checkout.
  • Ideal for analog, digital and microprocessor circuits
  • New high and low buffered logic indicators
  • New 8 selectable logic switches
  • 8 channel logic monitor
  • 3-year warranty on all parts and workmanship.
The PB-503 Analog and Digital Design Workstation is a portable robust electronics trainer suitable for all levels of electronics instruction and design. Utilizing the PB-503, students will learn valuable hands-on breadboarding techniques and build a solid foundation in circuit experimentation, construction and analysis. Experienced designers will find the PB-503 an invaluable instrument, providing a reliable platform for the most advanced and demanding design applications. The PB-503 can be used to construct basic series and parallel circuits to the most complicated multi-stage microcomputer circuits, incorporating the latest in industrial technology. Function Generator with continuously variable sine, square and triangle waveforms and TTL pulses. Triple output power supply offers fixed 5 VDC supply plus two variable outputs: +/-1.3 to +/-15VDC. Two Digital Pulsers. Audio experimentation speaker. Removable breadboard plate with additional plates available. Multiple features in one complete test instrument saves hundreds of dollars necessary for individual units. 3-wire AC line input (117V, 60 Hz typical) with power-on indicator. Both Models are available in 220-240VAC at 50Hz. 8 LED's, active high, 1.4 volt (nominal) threshold, inputs protected to +/-20 volts. Two pushbutton-operated, open-collector output pulsers, each with one normally-open, one normally closed output. Each output can sink up to 250 mA. One 1 K ohm, one 10 K ohm, all leads available and uncommitted. Two BNC connectors, pin available and uncommitted, shell connected to ground. Two SPDT slide switches, all leads available and uncommitted. 8-pole DIP switch: one side of all eight switches connected and switchable to +5V or ground, other side of all eight switches separate, available, and uncommitted. High impact molded case Enclosure. Measures 16" width by 6-1/2" height by 11-1/2" depth.

Product Dimensions (L x W x H): 445 x x 226

Product Weight: 0.1 LB
