- Voltage Adjustable: 0-18V DC, Current Adjustable: 0-2A

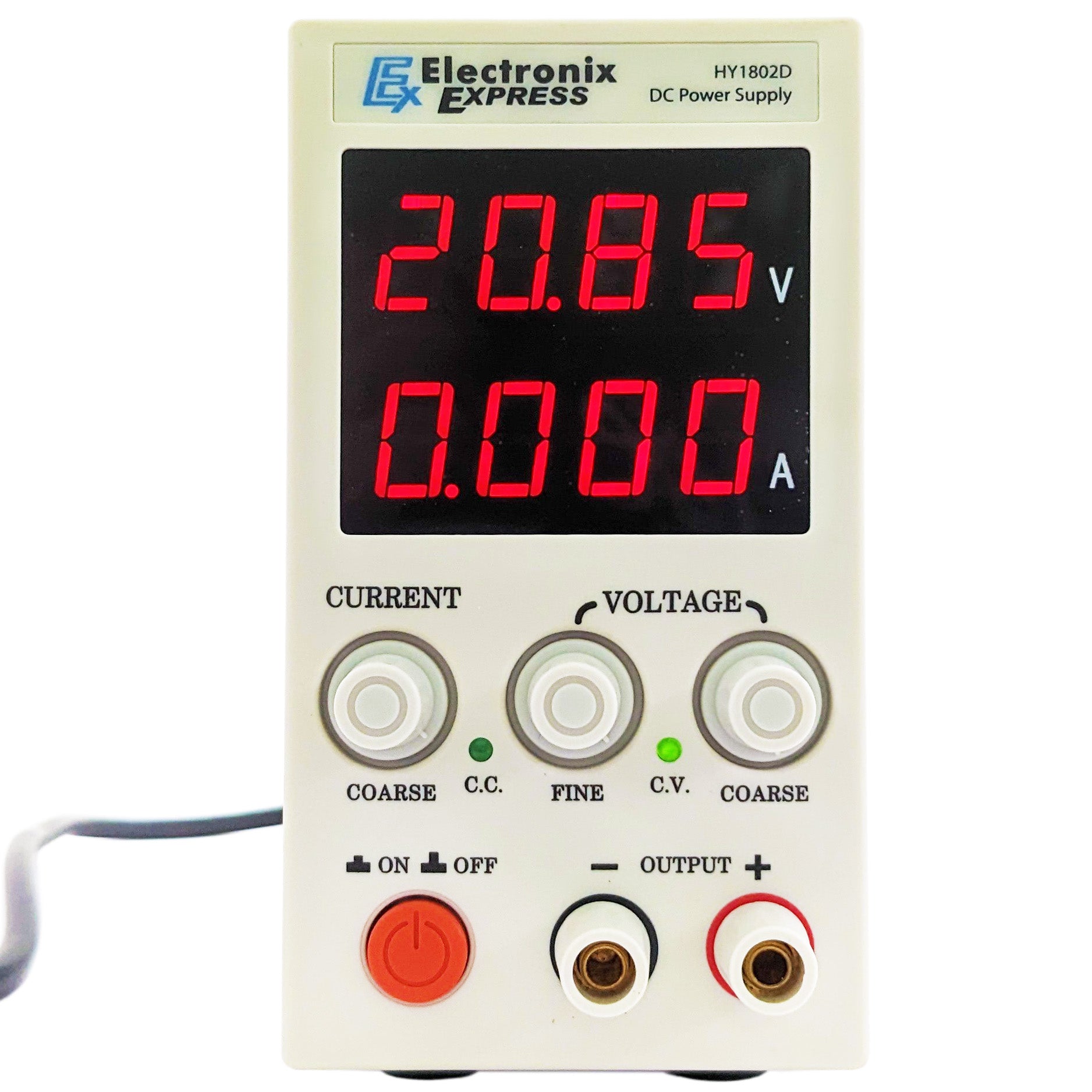

- Vibrant LED displays for both voltage and current
- Voltage has Coarse and Fine tuning controls for best precision
- Advanced PWM regulation
- Constant voltage (CV) and constant current (CC) operations; auto CV/CC switch
- Over voltage, over current, and over temperature protection
- Temperature controlled cooling fan
- Compact (2.83" x 8.85" x 5.51") and lightweight (2.1 lbs) design
Technical specifications:
Input voltage: 100-240V ~50/60Hz
Line regulation: CV≤0.05%+1mV; CC≤0.5%+10mA
Load regulation: CV≤0.1%+5mV; CC≤0.1%+10mA
Ripple and noise: CV≤10mVrms; CC≤20mArm.s
Accuracy: ± (1%+1 digit)
Dimensions: 2.83" x 8.85" x 5.51"
Weight: 2.1 lbs.
