Two 0-30V; variable voltages | Variable Current: 0-2Adc | Serial and parallel operation for double of normal outputs / LED display | 5V@ 3 A fixed output | Load Effect: .01% +5mV / Source Effect: .02% +1mV

Triple Output Power Supply (2@ 0-30V, 2A) (1@5V, 3A)

01PHSY3002-3
$179.99
$179.99
Sold out
Shipping calculated at checkout.
  • Two 0-30V; variable voltages
  • Variable Current: 0-2Adc
  • Serial and parallel operation for double of normal outputs / LED display
  • 5V@ 3 A fixed output
  • Load Effect: .01% +5mV / Source Effect: .02% +1mV

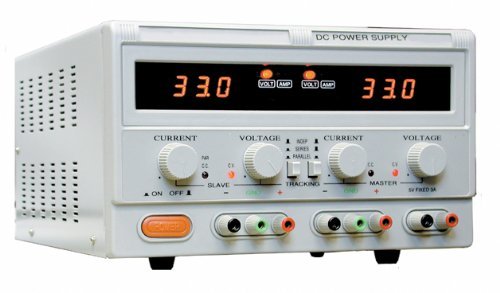

Triple Output Power Supply with LED display. Two 0-30V; variable voltages. The variable Current: 0-2Adc. Serial and parallel operation for double of normal outputs. 5V@ 3 A fixed output. The Load Effect: .01% +5mV. The Source Effect: .02% +1mV. Ther is current limiting and short circuit protection. The dimensions are 14.3" x 10.5" x 6.5". It weighs 26 lbs.

Product Dimensions (L x W x H): 17.2 x 13 x 9.5 inches

Product Weight: 1 LB
