Variable Single Output DC Power Supply 0-30V @ 0-10A

• Output Voltage: 0- 30V @ 0-10A Output Current: 0-10 A
• Input Voltage: 110V 60Hz
• Power effect: CV<0.01%+1mV, CC<0.2% + 1mA
• Waves and noises: CV<2mV r.m.s, CC <10mA, r.m.s
• Current indication accuracy: LED±2%+2digits, analogue display 2.5%

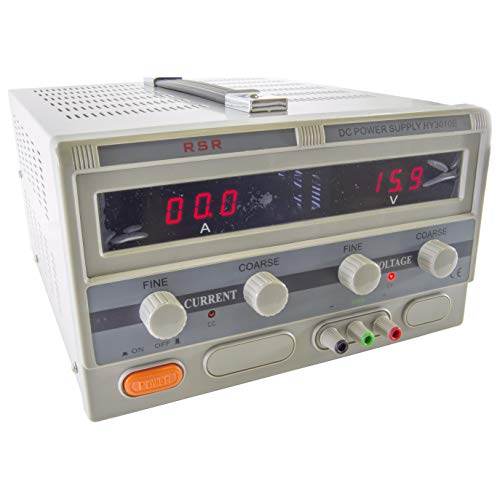

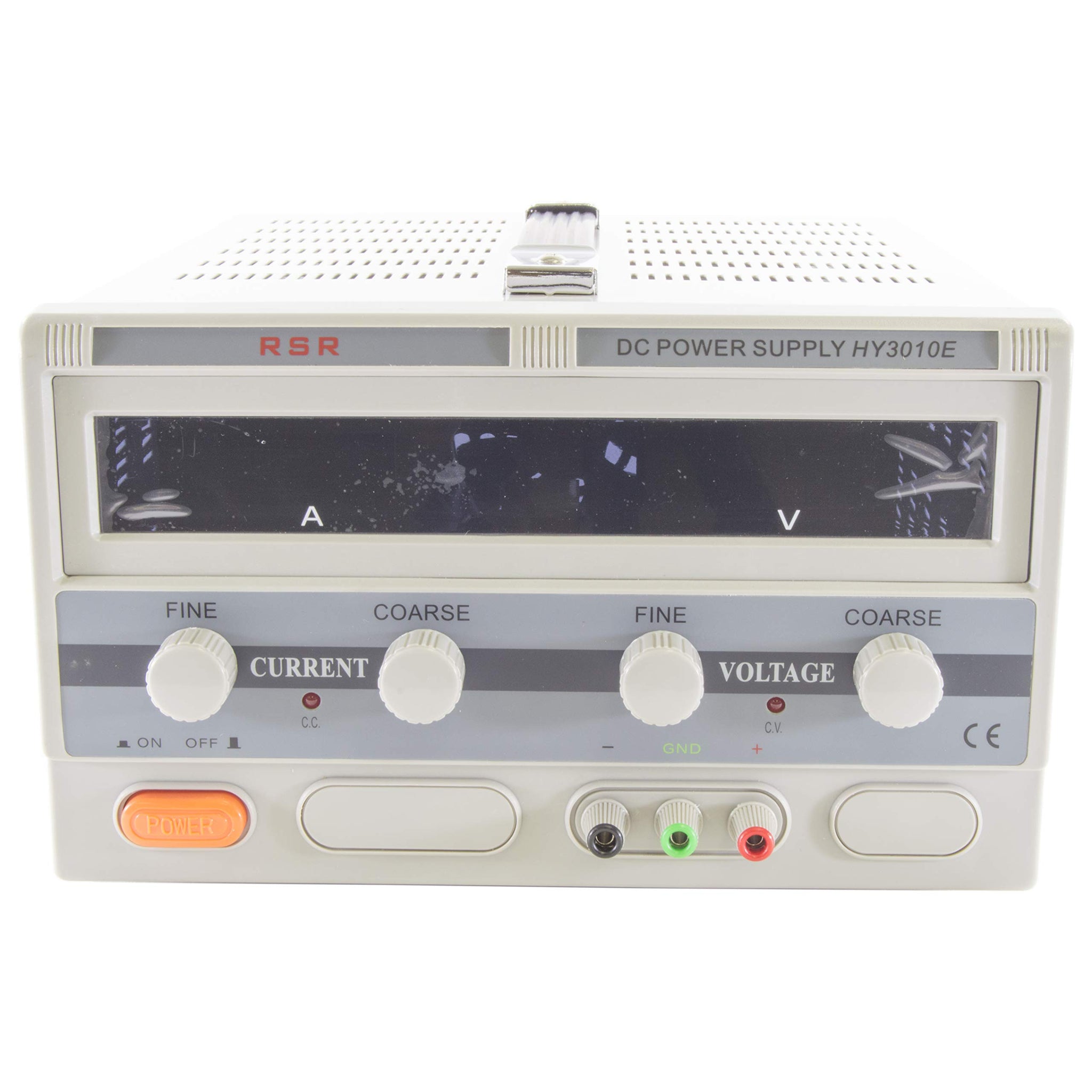

The HY3010E variable DC power supply is excellent for multiple regulated power requirements with the variable 0-30 volt 0-10 amp output. The digital LED meters display the actual voltage and current within 2 percent deviation. Both the voltage and the amperage are adjustable with COARSE and FINE tuning controls for BEST precision.

Output Voltage: 0 - 30V
Output Current: 0 - 10A
Input Voltage: 110V 60Hz
Constant Voltage/ Constant Current
Voltage and Current Variable
Power effect: CV<0.01%+1mV, CC<0.2% + 1mA
Overload effect: CV<0.01% +3mV, CC<0.2% +3mA
Waves and noises: CV<2mV r.m.s, CC <10mA, r.m.s
Current indication accuracy: LED+/-2%+2digits, analogue display 2.5%
Voltage indication accuracy: LED+/-1%+2digits, analogue display 2.5%
Protection: constant current and short-circuit protection
CV≤0.1%+5mV(I>6A) CC≤0.5%+20mA(I>6A)
High current limited
Load regulation:
CV≤0.02%+10mV(I≤6A) CC≤0.5%+10mA(I≤6A)
CV≤0.1%+5mV(I>6A) CC≤0.5%+20mA(I>6A)
Ripple & Noise: CV≤3mVr.m.s CC≤10mA r.m.s

Size: 14 1/4" x 10 1/4" x 6 1/2"
Weight: 9 lbs
