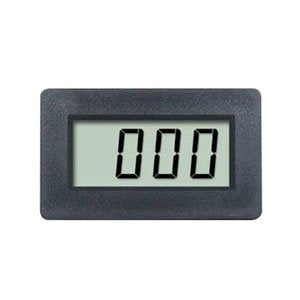

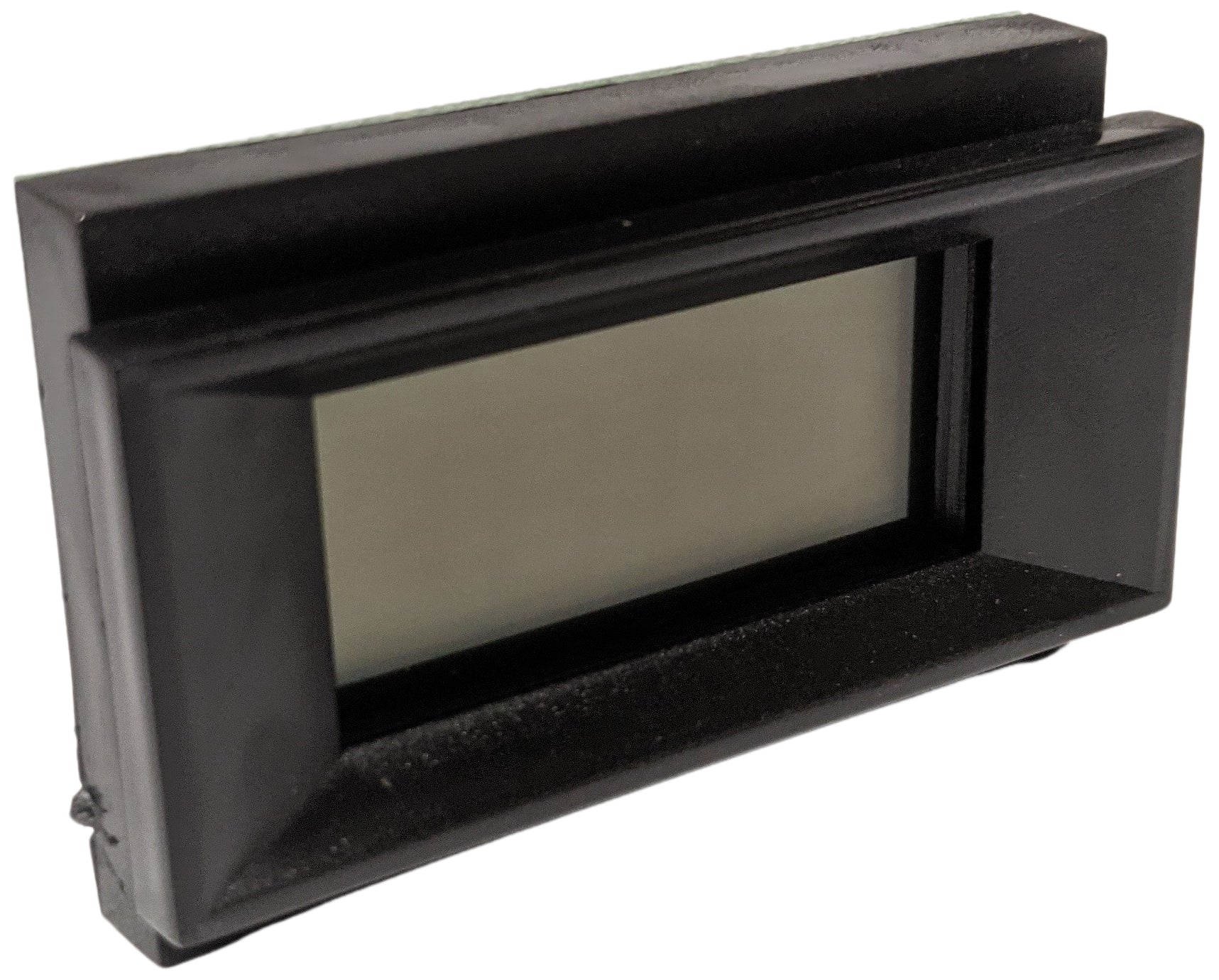

LCD Panel Meter with Backlight 0-200V

• Dual slope A/D conversion
• Accuracy: +/- .5%
• Sampling Time: 2.5 sec.
• Supply Voltage: 8-12V DC
• Input Impedance: 100M Ohm @ 200mv 10M Ohm @ 20mv 10M Ohm @ 200v

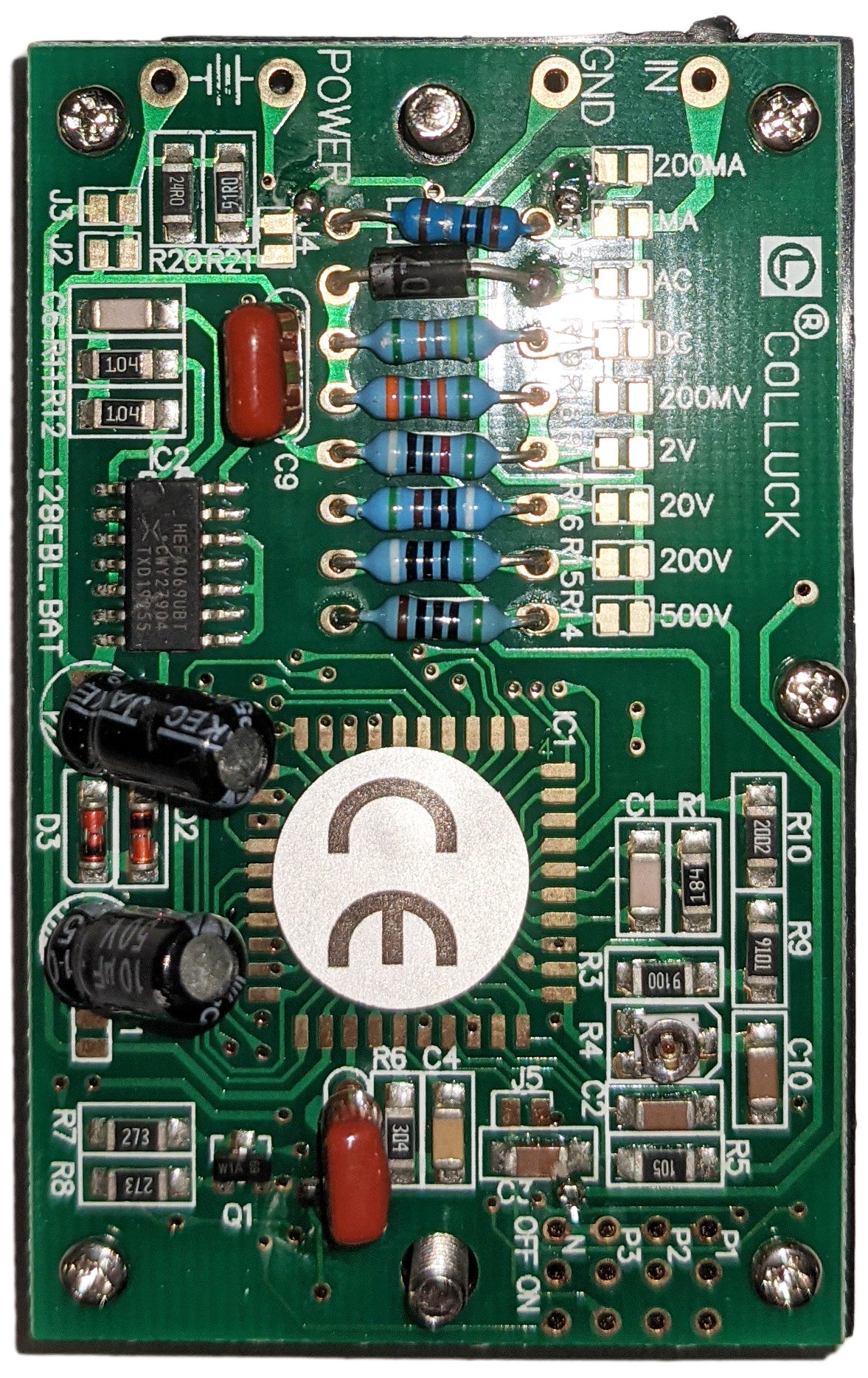

Digital LCD meter with 3 1/2 digit adjustable input. Meter has user select-able decimal position, units, and gain adjustments. Meter is Powered by 10 mA at 12 V (9 to 16 V) or 24 V (16 to 32 V), Back-light power: 24Vdc

-Dual slope A/D conversion
-Accuracy: +/- .5%
-Sampling Time: 2.5 sec.
-Supply Voltage: 8-12V DC
-Size: 68mm x 44mm
-Input Impedance: 100M Ohm @ 200mv 10M Ohm @ 20mv 10M Ohm @ 200v

Product Dimensions (L x W x H): x 4.1 x inches

Product Weight: 1.35 LB
