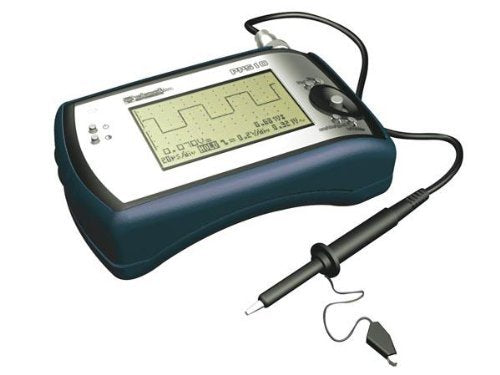

Full auto set up, LCD: 128 x 64 pixels / high-contrast
Joystick control for true hand-held operation. Set all functions using your thumb. With interface for PC connectivity. it has 10 Ms/s sampling rate, 2MHz bandwidth with 0.1mV sensitivity. Measurements: dBm, dBV, DC, rms, Trigger mode: run, normal, once, roll, slope +/-, X and Y position signal shift, Audio power calculation (rms and peak), Signal markers for Volt and Time, Frequency readout (through markers), Recorder function (roll mode), Signal storage (2 memories), Full auto set up, LCD: 128 x 64 pixels / high-contrast, DVM read-out with x10 option, Time base: 200ns to 1hour/div in 32 steps, 5mV to 20V/div in 12 steps, 0.1mV sensitivity, 10Ms/s sampling rate, Up to 2MHz analogue bandwidth, Joystick operation, Optical isolated RS232 output for PC, Weight: 0.87 lbs., 5 - 1.5V AAA battery or Nicd / NiMH (not included), Includes internal battery charging circuit, 9V adapter/300mA optional (not included)
