- Power supply unit provides a source of AC voltage and current for powering and testing electronic devices in research, medical, laboratory, production, and educational applications
- One output supplies continuously variable voltage or current
- Built-in isolation transformer reduces risk of shock when working with hot-chassis equipment
- Digital meter shows output voltage and current readings
- Input fuse helps prevent damage to the PSU or connected equipment due to overload

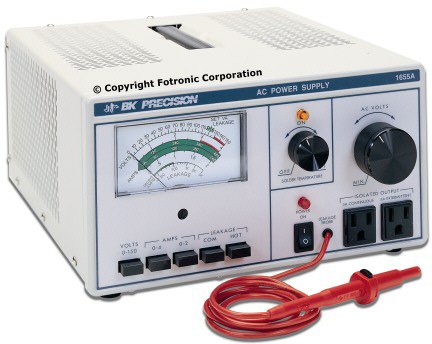

This B&K Precision variable AC power supply provides a source of AC voltage and current for powering and testing electronic devices in research, medical, laboratory, production, and educational applications. The power supply unit (PSU) supplies continuously variable voltage or current. The unit has a built-in isolation transformer that reduces risk of shock when working with hot-chassis equipment. A digital meter shows output voltage and current readings. An input fuse helps prevent damage to the PSU or connected equipment due to overload. This B&K Precision variable AC power supply is offered with a choice of number of outputs, rating current range, meter scale, leakage, dimensions, and weight.
Specifications
Maximum voltage output | 150VAC |
Meter accuracy, voltage and current | + or – 5% of full scale |
Voltage/current sensing | Sine wave average, calibrated in root mean square |
Output isolation | Leakage less than 0.1mA (milliamp) at 25 degrees C and 50% relative humidity |
Power requirements | 120VAC, + or – 10% at 60Hz |
Operating temperature | 0 to 40 degree C |
Power supply units (also known as PSUs, AC power supplies, DC power supplies, and battery eliminators) provide AC or DC voltage to power or test devices such as tools, appliances, and electronic components. The PSU draws energy from a line source such as a wall socket and converts it to a constant, specified amount of voltage or current that is then outputted to a connected device. In general, a power supply unit will be classified as either a linear PSU (also known as a linear regulation or line-frequency PSU) or a switched PSU (also known as a switching-mode power supply, SMPS, or switcher). Typically, a linear PSU ha
Product Dimensions (L x W x H): 457 x 4.5 x 229 inches
Product Weight: 0.6 LB
