5V DC at 3 amps maximum line regulation of 0.2% load regulation of 1% with a maximum ripple of 10mV p-p. | Variable Output: +/- 1.5V DC to +/- 15V DC at 1 amp maximum, line regulation of 0.5%, load regulation of 1% with maximum ripple of 10mV p-p. Model 3040 | 3 supplies are fully current limited and shortcircuit protected
Triple Output DC Power Supply (One Fixed 5V @ 3A, Two Continuously Variable 1.5V to 15V, 1A Max), Assembled Version
  • Load image into Gallery viewer, 5V DC at 3 amps maximum line regulation of 0.2% load regulation of 1% with a maximum ripple of 10mV p-p. | Variable Output: +/- 1.5V DC to +/- 15V DC at 1 amp maximum, line regulation of 0.5%, load regulation of 1% with maximum ripple of 10mV p-p. Model 3040 | 3 supplies are fully current limited and shortcircuit protected
  • Load image into Gallery viewer, Triple Output DC Power Supply (One Fixed 5V @ 3A, Two Continuously Variable 1.5V to 15V, 1A Max), Assembled Version

Triple Output DC Power Supply (One Fixed 5V @ 3A, Two Continuously Variable 1.5V to 15V, 1A Max), Assembled Version

01PS3010A
Regular price
$119.99
Sale price
$119.99
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

  • 5V DC at 3 amps maximum line regulation of 0.2% load regulation of 1% with a maximum ripple of 10mV p-p.
  • Variable Output: +/- 1.5V DC to +/- 15V DC at 1 amp maximum, line regulation of 0.5%, load regulation of 1% with maximum ripple of 10mV p-p. Model 3040
  • 3 supplies are fully current limited and shortcircuit protected

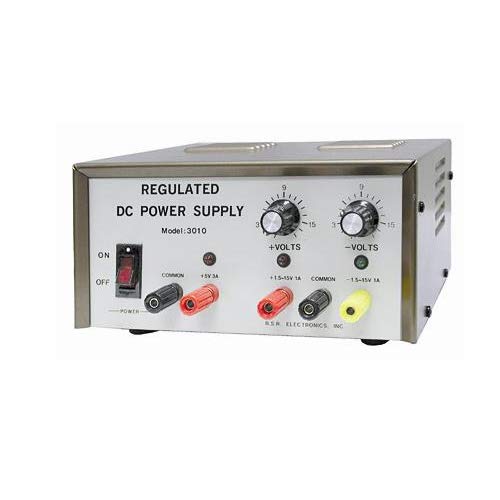

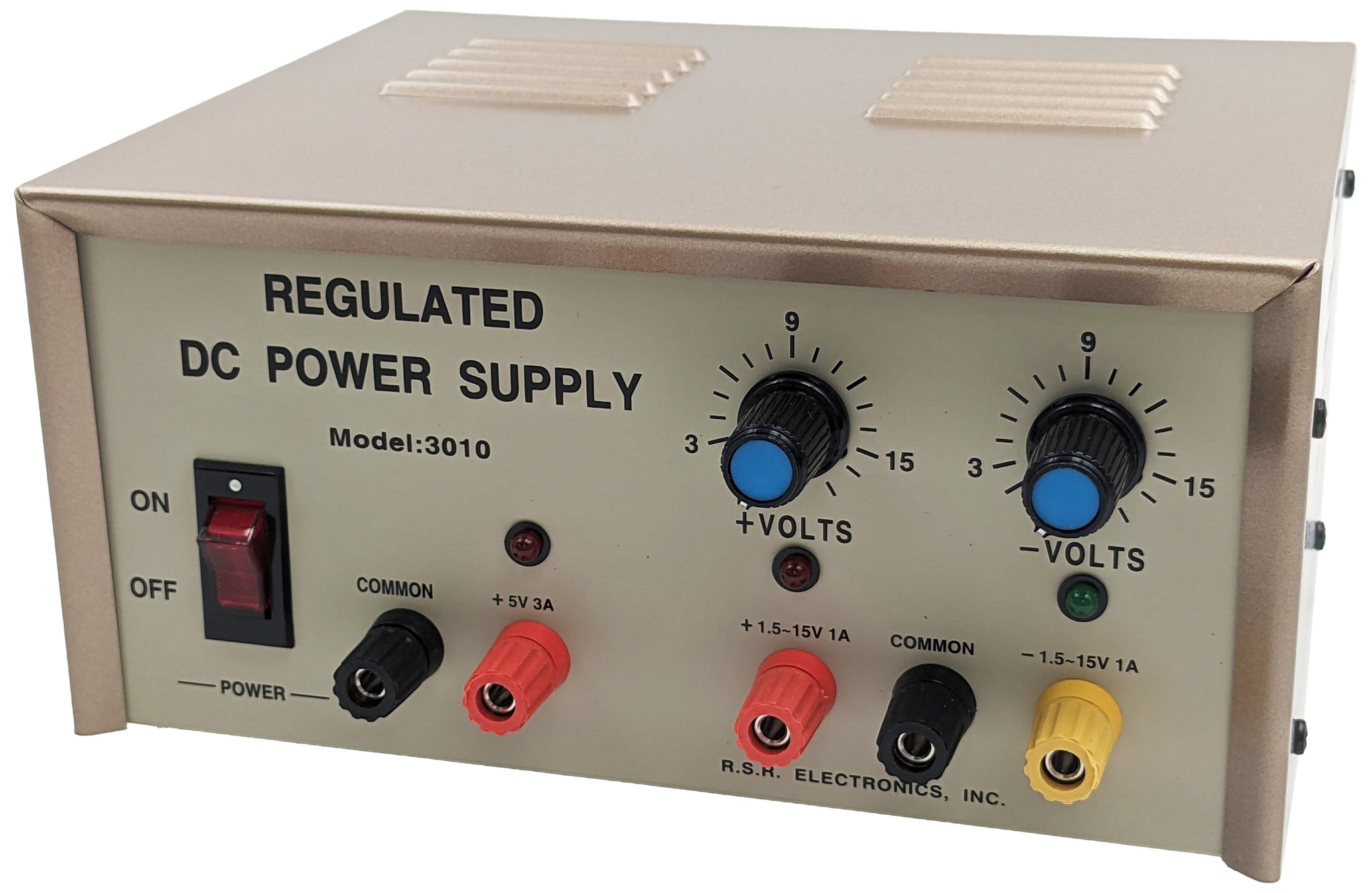

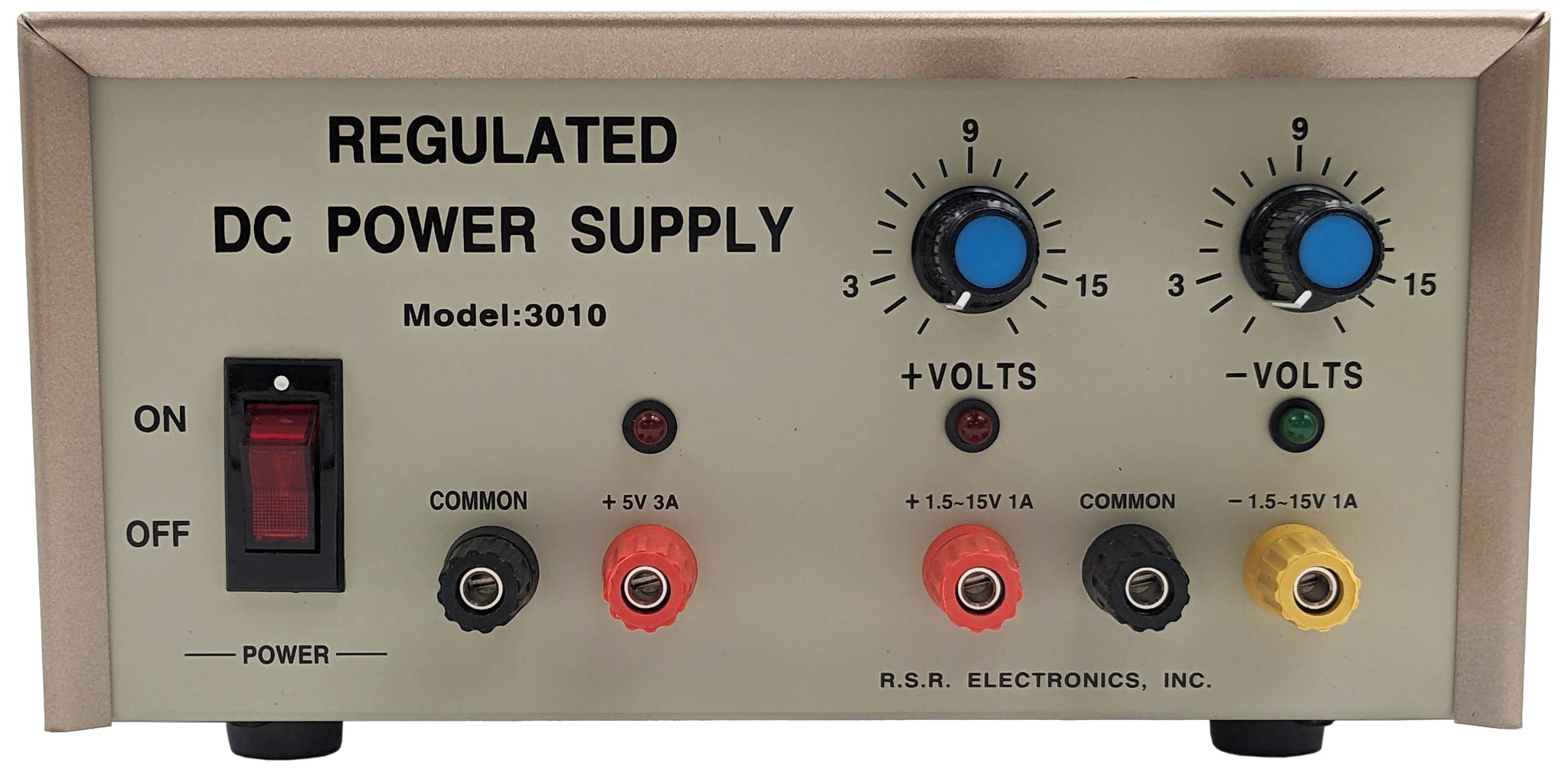

The 3010 DC Power Supply features 3 regulated DC supply outputs. One output is fixed and 2 are continuously variable. All 3 supplies are fully current limited and shortcircuit protected.

SPECIFICATIONS:
Fixed Output:
5V DC at 3 amps maximum
Line regulation of 0.2%
Load regulation of 1% with a maximum ripple of 10mV p-p.
Variable Output:
±1.5V DC to ±15V DC at 1 amp maximum
Line regulation of 0.5%
Load regulation of 1% with maximum ripple of 10mV p-p.

Note: Also available as a Do-it-Yourself Kit version that can be found by searching for the following part number: 01PS3010K

Product Dimensions (L x W x H): x 201 x MM

Product Weight: 1.04 LB
