- Ripple and noise: 3mVrms.
- Display accuracy: less than 0.1% + 2 digits.
- Dimensions: W=230m, H=170m, D=310m.
- Power source voltage selectable for both 115V or 220V.
.01% regulation.
Ripple and noise: 3mVrms.
Display accuracy: less than 0.1% + 2 digits.
Dimensions: W=230m, H=170m, D=310m.
Power source voltage selectable for both 115V or 220V.

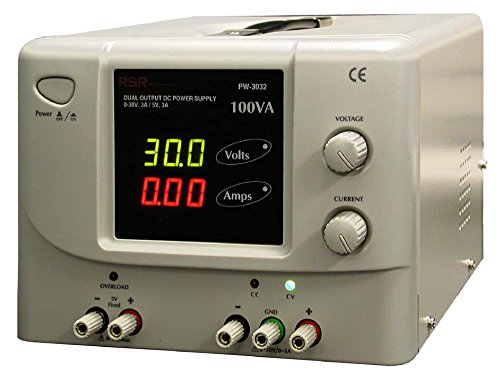

Sleek, streamline design features large, easy-viewing digital displays in green (volts) and red (amps), for monitoring voltage and current simultaneously. The PW3032 offers both a 0 ~ 30V, 0 ~ 3A output plus a fixed 5V, 0 ~ 3A output. Maximum continual output power 105VA.
Specifications:
Power Transformer E.I. Type Transformer
Max. Contenual output power 105 VA
Max. Raised Temperature <40°C
Independent output 0-30V/0-3A, 5V Fixed / 0-3A; Dual output
CONSTANT VOLTAGE CHARACTERISTICS
Load Regulation ± 0.01% + 2mV
Line Regulation ± 0.01% + 2mV
Ripple & Noise <0.3mVrms
CONSTANT CURRENT CHARACTERISTICS
Load Regulation <15mA
Line Regulation ± 0.01% +2mA
Ripple & Noise <1mArms
5V FIXED OUTPUT
Regulation Line regulation <5mV, Load Regulation<10mV
Ripple & Noise <1mVrms
Voltage Accuracy 5V ± 0.25V
Max. output current 3A
DISPLAY
Voltage 3 digits 0.56 Green LED
Current 3 digits 0.56 Red LED
Accuracy <0.1% + 2digits
GENERAL
Power Source ACV 115/230 ± 10%, 50/60Hz
Dimensions(WXHXD) 230 X 170 X 310mm
Weight 6.7kg
Product Weight: 0.29 LB
