- 1 to 11, 111, 110 ohm (1 ohm per step) - wide range and high resolution
- Seven decades
- Sturdy, multi-way binding posts for isolated substitutions
- Slide switches to easily add or subtract for desired value
- Durable ABS plastic housing case
- Compact size 5.79" x 4.61" x 2.16"
- Perfect for educational use, R & D, service, production line testing, and maintenance

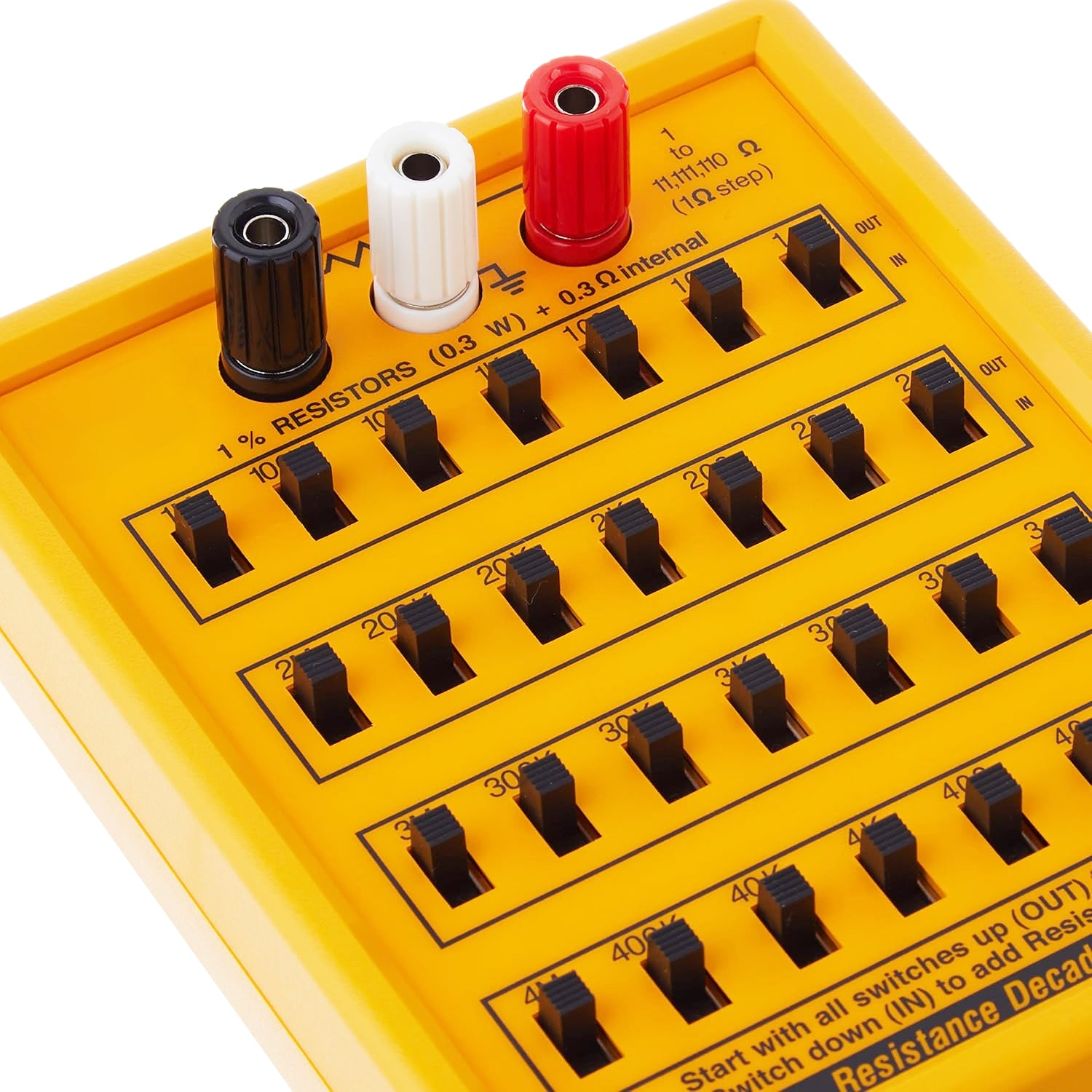

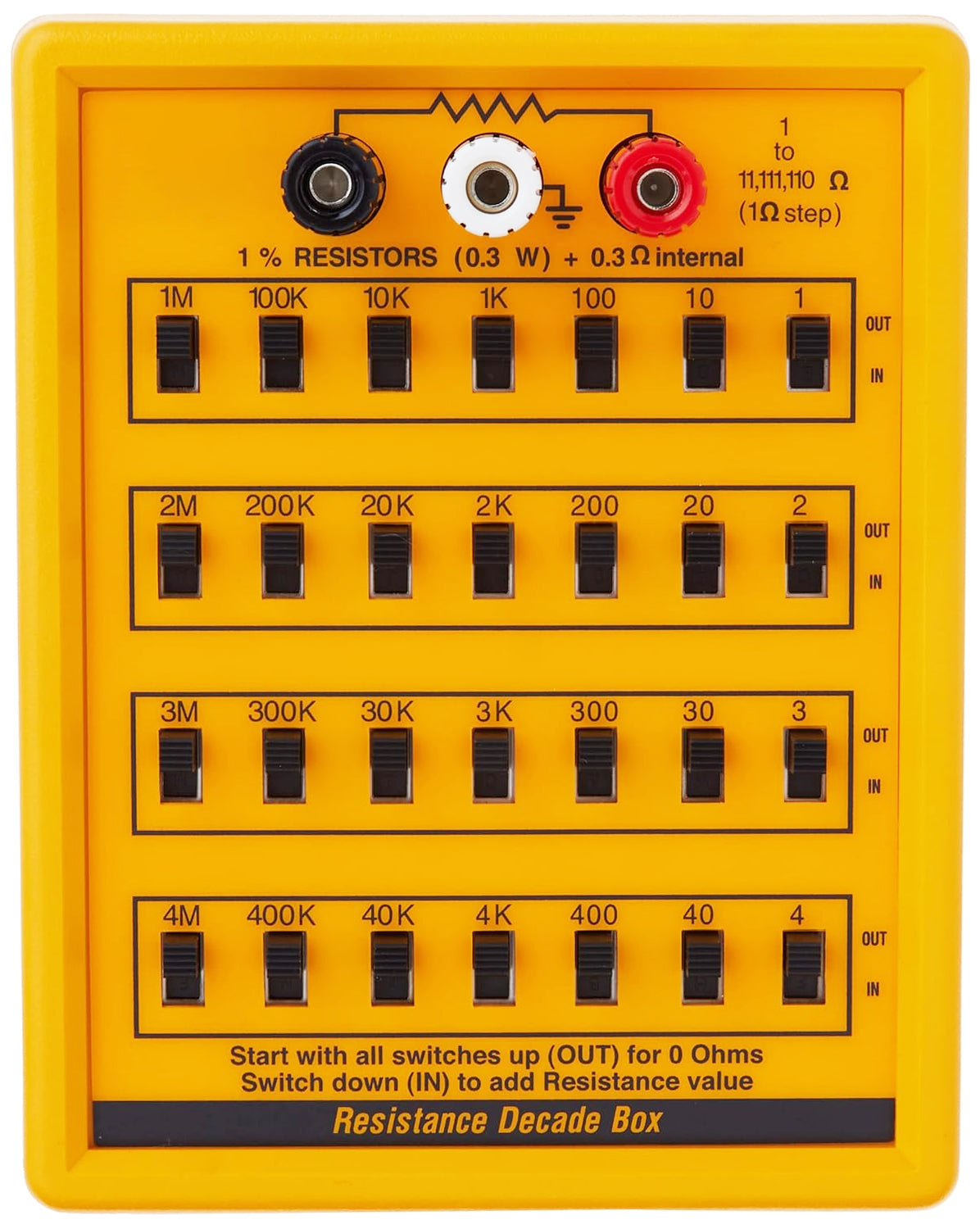

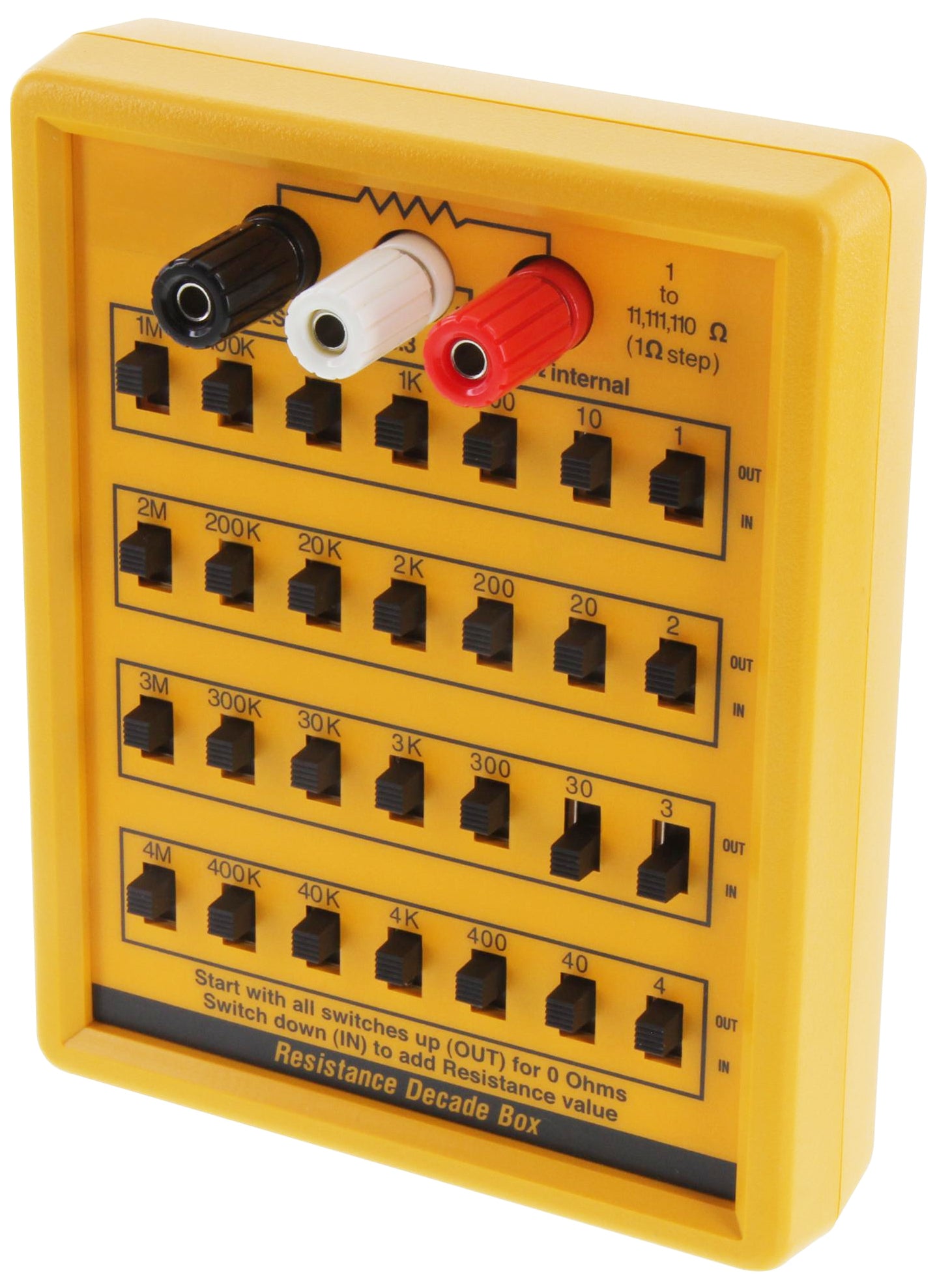

This resistance decade box has sturdy, multi-way binding posts and slide switches that allow the user to simply add/subtract for desired value. It features a durable ABS plastic housing case. Great for circuit development.
Specifications:
Range: 1 to 11, 111, 110 ohm ( 1 ohm per step )
Accuracy: 1% resistors used throughout
Wattage: 1 W. *Do not add the voltage over AC/DC 250 V to the output resistance terminals, even its stand Wattage is less than 1 W.
Internal Stray Resistance: 0.3 ohm max.
Operating Temperature: 32 to 122℉ (0 to 50℃)
Operating Humidity: Less than 80% RH
Weight: 0.70 lb. (320 g)
Dimensions: 5.79" x 4.61" x 2.16" (14.7 cm x 11.7 cm x 5.5 cm)
