- Current Probe, DC-10 MHz,300A peak. Requires RP1000P power supply.
- Broadband frequency characteristics: DC to 10MHz
- Highly accurate current detection
- Easy current measurement
- Compact design, permits measurement of low current levels

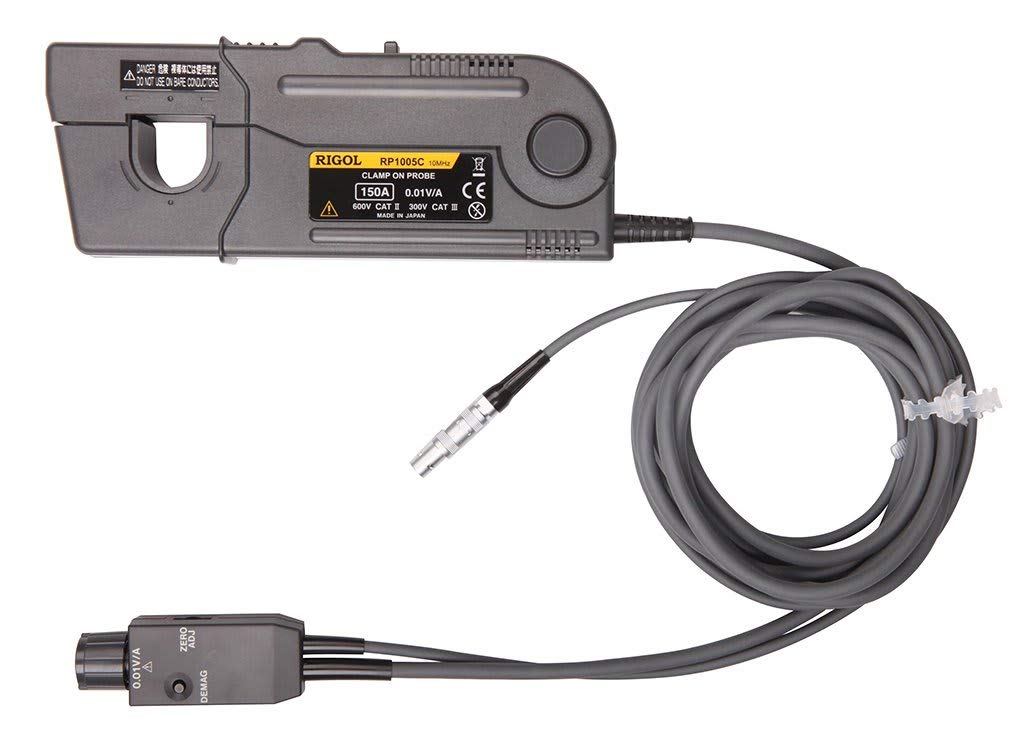

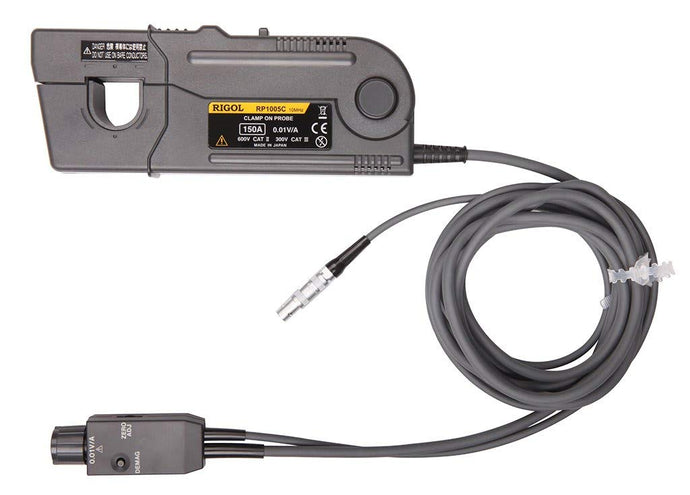

DC-10 MHz 300A Peak Current ProbeRigol RP1005C Current Probe, DC-10 MHz, 300A PeakxFeaturesThis device can be directly connected to a BNC input connector of a waveform measuring instrument, and by clamping on a conductor to be measured, allows the current waveform to be easily captured.Please note - This device must be used with the Rigol RP1000P Current Probe Power Supply.RP1005C Parts OverviewRigol RP1005C current probes can detect the current flowing through the conductor and convert it to voltage that can be displayed on and measured by the measuring instrument.Rigol RP1005C Current Probe Partsx1. Slide SwitchIt is used to open and lock the current sensor. You are recommended to lock the current sensor when measuring the conductor to be measured to avoid danger. For RP1003C and RP1004C, there are OPEN, FREE and LOCK indications on one side of the slide switch. The on/off status of the current sensor is related to the position of the slide switch. When the slide switch is at the OPEN position, the current sensor is open and at this point, the conductor to be measured can be connected to the current sensor; When the slide switch is at the FREE position, the current sensor is closed but not locked; When the slide switch is at the LOCK position, the current sensor is locked and at this point, the UNLOCK indication is covered (cannot be seen).For RP1005C, there are LOCK and UNLOCK indications on the slide switch. The current sensor is locked when the LOCK indication is displayed on the slide switch (the UNLOCK indication disappears).2. Current SensorIt is used to clamp the conductor to be measured and carries out the actual current measurement. It is a precision assembly including a molded component, a ferrite core and a Hall effect element. It may be damaged if subjected to sudden changes in ambient temperature, or mechanic
Product Dimensions (L x W x H): 356 x 333 x 102 MM
Product Weight: 0.48 LB
