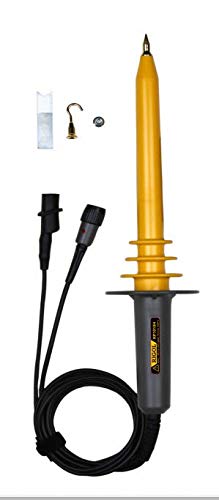

Rigol RP1010H Probes/Leads/Cables

• High Voltage Probe with 40MHz bandwidth, 10kV max DC voltage, 1000:1
• Bandwidth: DC ~ 40MHz
• Damping factor: 1000: 1
• Input resistance: 100 MW +- 5%
• Input capacity: 3pF +- 0,5pF

Rigol RP1010H Oscilloscope 40 MHz Passive High Voltage ProbePassive probe - 10kV high voltage, compatible with all of RIGOL oscilloscopes.For digital oscilloscopes, the signal under test needs to be connected to the measurement channel via various oscilloscope probes or 50 ohm cables.The Probing is very important to making quality measurements. If the probe performance is not adequate or if you did not select the proper probe for your application, you will see distorted or misleading signals on your oscilloscope.There are two kinds of probes, one is passive probe, another one is active probe. active probe requires power while passive probe does not. For general-purpose measurements(600 MHz), active probes are the way to go. They cost more than passive probe and their input voltage is limited, but because of their significantly lower capacitive loading, they give you more accurate insight into fast signals.

Product Dimensions (L x W x H): 483 x 147 x 102 MM

Product Weight: 0.3 LB
